|Place of Origin:||SHENZHEN|
|Brand Name:||TAC or OEM ODM|
|Certification:||MSDS REACH ROHS|
|Model Number:||ICR18650 3.7V 2300mAh|
|Minimum Order Quantity:||200PCS|
|Packaging Details:||meet UN38.3 Certification|
|Delivery Time:||7 days for single cell 15-20 days for battery pack|
|Payment Terms:||T/T L/C paypal|
|Supply Ability:||100000PCS EACH WEEK|
|Model Number::||ICR18650 3.7V 2300mAh||Rated Capacity::||2300mAh|
|Nominal Voltage::||3.7V||OEM & ODM::||Support|
|Packing::||PVC||Environmental Compliance::||ROHS, REACH|
|Min Capacity:||2200mah||Warranty:||12 Months|
|PO NO:||PLIC0504||PVC Color:||Black \ Blue|
|Discharge Current:||10C||PCM Protect Performance:||1S PCM Over Charge Over Discharge Short Circle Etc|
lithium iron phosphate battery pack,
lithium ion phosphate batteries
1. Nominal Voltage3.7V,Rated Capacity2300mAh.
2. Application:mounting of the outdoor lamp, Bicycle headlight.

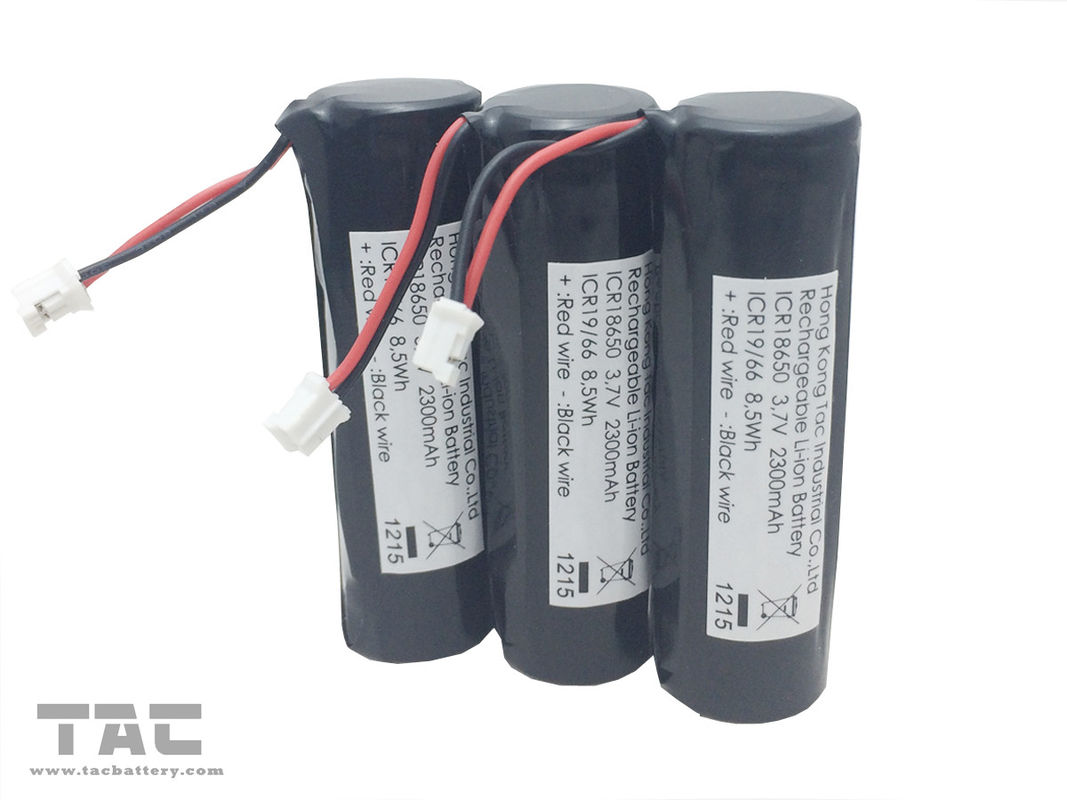

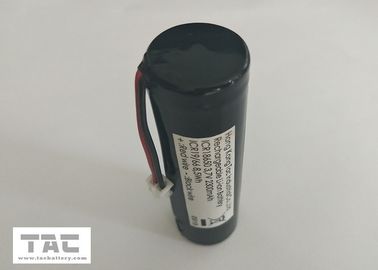

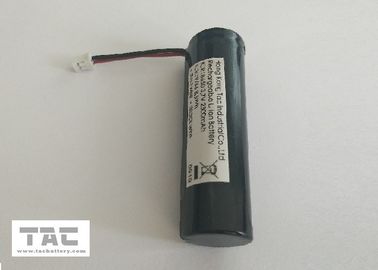

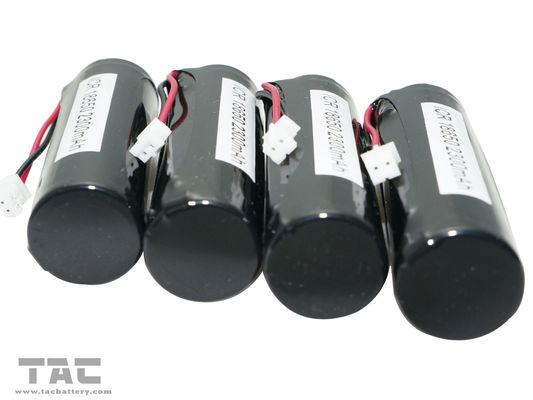

3. Model:ICR18650 3.7V 2300mAh Cylindrical Rechargeable Battery for Bicycle headlight.
4. Higher energy density and lower weight than other rechargeable batteries.
5. Battery tested based on International Electronically Commission (IEC) standard to ensure capacity, quality and life time.
6. 3.7V 18650 size Cylindrical Li-Ion Cell with PCB and wire connector
7. With a long cycle life about 2000 times.
8. Other name: ICR18650/INR18650/INM18650.
9. Certification: UL,UN,ROHS.
0.2C Standard discharge
Mean Operation Voltage
Within 10 days from Factory
By standard charge method
Standard charging method
|0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C||
Standard discharging method
|0.2C constant current discharge to3.0V,|
Cell Internal Impedance
Internal resistance measured at AC 1KHZ after 50% charge
Standard package follow UN38.3 rules,
The battery pack was packed by sponge bag one by one
5 pcs for one inner box and 8 box for one carton, the total weight less than 6kgs
The period of warranty is one year from the date of shipment. TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.
UN38.3 UL Reach for this Model
Q: Are you manufacturer or trading company?
A: HKTAC is over sale for famous manufacturer called Great power Group, assembly entity for battery packs, and a distributor of branded cells and battery accessories based on customer’s needs.
Q: Can you agree with OEM/ODM battery pack ?
A: Yes, OEM/ODM battery packs are warmly welcome.
Q: Do you have battery packs for famous company
A: Yes, we are supplier for Philips Honywell etc
Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Max Size of the battery pack so that we can suggestion the reasonable cell
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. BMS performance require
Q: Can you print my logo on the battery jacket or housing?
A: Yes, custom logo service is available.
Q: Is sample order acceptable?
A: sure, sample orders for testing quality is reasonable and acceptable.
Q: How should I place an order?
A: Pls just confirm our PI if you need
Q: How should I pay? What modes of payment do you accept?
A: T/T, Paypal, LC
Q: Are renowned international brand battery cells available?
A: Yes international brand cells are available, please contact us for details.
Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
