32650 3.2V LiFePO4 Battery Battery Pack 6.4V 5AH With BMS For Solar Power

32650 3.2V LiFePO4 Battery Battery Pack 6.4V 5AH With BMS For Solar Power

    • 32650 3.2V LiFePO4 Battery Battery Pack  6.4V 5AH With BMS For Solar Power
    • 32650 3.2V LiFePO4 Battery Battery Pack  6.4V 5AH With BMS For Solar Power
  • 32650 3.2V LiFePO4 Battery Battery Pack  6.4V 5AH With BMS For Solar Power

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UN38.3, ICE62133, ROHS for Cell
    Model Number: 6.4V 5Ah

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: USD 40-50
    Packaging Details: 2pcs/little box,36 boxes/carton
    Delivery Time: 28 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30K/Per month Contact Now
    Contact Now
    Detailed Product Description
    Place Of Origin:: Guang Dong Brand Name:: TAC-PIFP0924
    Model Number:: 6.4V 5Ah Composed Type:: IFR32650 5Ah 2S1P 6.4V
    Size:: H65:W33:L68mm Weight:: 300g
    OEM & ODM:: Support Environmental Compliance:: UN38.3, ICE62133, ROHS.
    Circle Life: 2000times Rechargeable: Yes
    Type: 3.2V LiFePO4 Battery

    32650 LiFePO4 Battery Battery Pack 6.4V 5AH With BMS For Solar Power

    Features for 32650 LiFePO4 Battery Battery Pack 6.4V 5AH With BMS For Solar Power

    1.The highest capacity 5Ah in 32650 size ,The nominal voltage:6.4V meet most application require.

    2. The accurate size for  battery pack:Max H65:W33:L68mm meet your design space limit

    3. Ths single cell is a level ,100% truth capacity for the energy type IFR32650 5Ah 3.2V

    4. Deep  circle and  long cycle life over 2000 times base on DOD 80%

    5. Through certification:UN38.3,ICE62133,RoHs. For single cell

    6. Low self-discharge less than 3% monthly



    Quick Detail:



    Place of Origin: Guang dong China Brand Name: TAC-PIFP0734
    Model Number:

    6.4V 5Ah



    Composed Type: IFR32650-5Ah 2S1P
    Rated Capacity: 5Ah Weight: 300g
    Size: H65:W33:L68mm Voltage: 6.4V
    Cycle Life: >2000times Durability: High capacity longer time
    OEM & ODM: Support Packing: PVC Packing
    Warranty: 12months Environmental Compliance: UN38.3, ICE62133, ROHS.





    Specifications for 32650 LiFePO4 Battery Battery Pack 6.4V 5AH With BMS For Solar Power



    No.



    Item



    General Parameter



    Remark



    1

    Rated Capacity



    5.0Ah

    Charge: CC@0.2C to 7.3V, then CV till current to 0.02C.

    Discharge: 0.2C to 5.0V



    2

    Minimal Rated Capacity



    4.9Ah
    3

    Nominal Voltage



    6.4V
    4

    Life Exception



    Higher than 80% of the Initial Capacity of the Cells

    Charge: CC@0.2C to 7.3V, then CV till current to 0.02C

    Rest: 30min.

        Discharge: 0.2C to 5.0V

        Temperature:20±5℃

      Carry out 1200cycles 80%DOD

    5

    Discharge cut-off voltage



    ≥5V

    5.0V( recommended)



    6

    Charging cut-off voltage



    ≤7.3V

    7.3V (recommended)



    7

    Cell and assembly method



    IFR32650-5.0Ah 2S1P
    8

    Internal resistance



    ≤100mΩ
    9

    Housing material



    PVC
    10

    Weight



    Approx: 300g IFR32650-3.3Ah
    11

    Max. Dimension



    H65:W34:L68mm



    Application:





    1. ELectronic Toy,Laptop,Self-powered super flashlight



    2. Gas meter, Water meter,Electricity meter



    3. Wind power, Electrocar,Solar power,etc



    4.Tracking device

    External Packing for LiFePO4 Battery With BMS

    1 SET battery pack protect by double deck sponge bag

    3-5 bags for one inner paper box

    8 boxes for one carton

    32650 3.2V LiFePO4 Battery Battery Pack  6.4V 5AH With BMS For Solar Power



    Delivery Time

    In order to delivery the correctly cargo on time , Tac arrange the order follow below process

    1.  Issue the specification promtly and confirm all the detail with customerd

    2. After confirm the detail , Tac Start to prepare the bulk cell

    3.TAC delivery the samples with 7-15 days for battery pack and 25-30 days for OEM order.

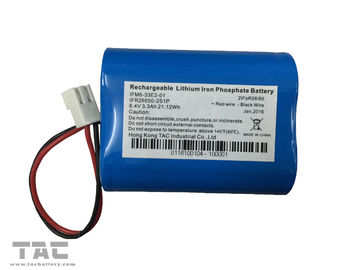

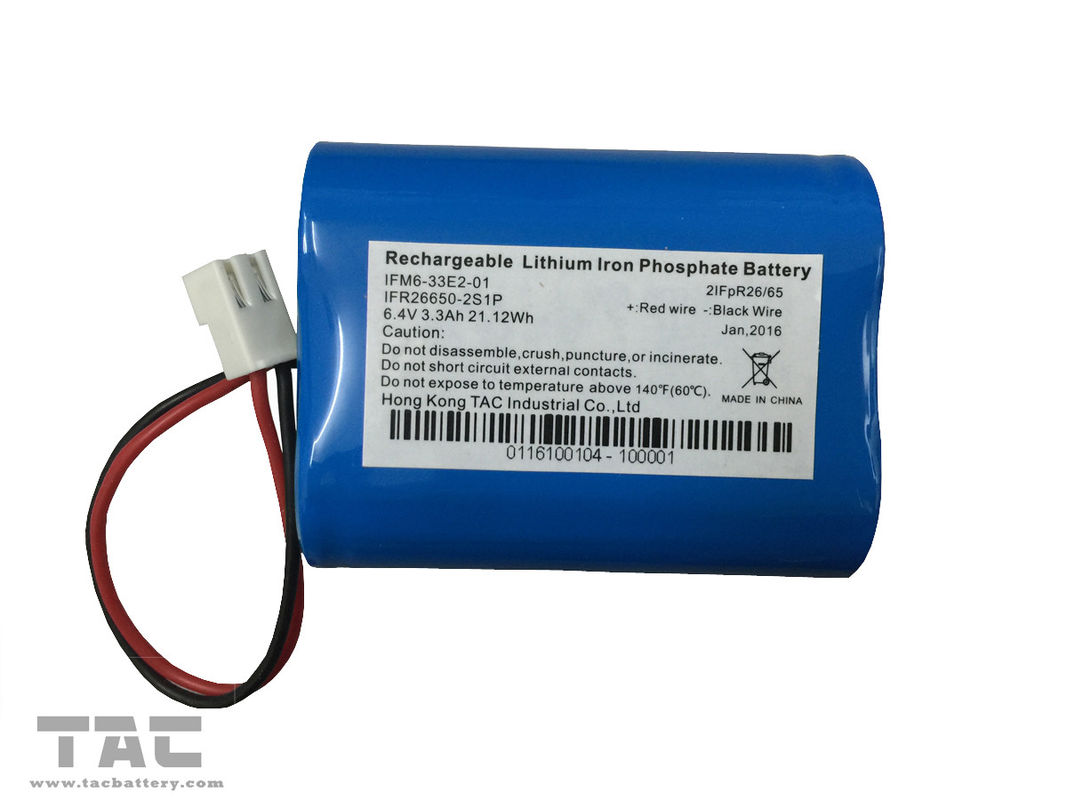

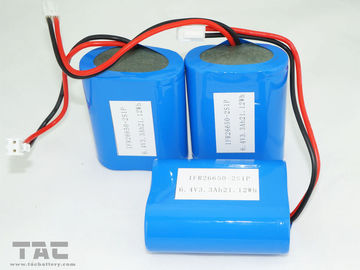

    Similar Picture for 32650 LiFePO4 Battery Battery Pack 6.4V 5AH With BMS For Solar Power



    32650 3.2V LiFePO4 Battery Battery Pack  6.4V 5AH With BMS For Solar Power32650 3.2V LiFePO4 Battery Battery Pack  6.4V 5AH With BMS For Solar Power





    Similar Production for LIFEPO4 Battery Pack

    Portable Energy Storage made by IFR26650 ,The battery pack with plastic outer shell

    12V 100MAH for street light



    32650 3.2V LiFePO4 Battery Battery Pack  6.4V 5AH With BMS For Solar Power
