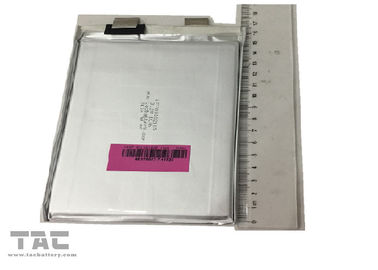

High Capacity LiFePO4 Battery Cell 3.2V 25AH 09185190 For E - car E - Scooter
Product Details:
Place of Origin: | Shenzhen zhuhai |
Brand Name: | TAC OEM ODM |
Certification: | MSDS REACH ROHS |
Model Number: | lifepo4 09185190 25Ah 3.2V |
Payment & Shipping Terms:
Minimum Order Quantity: | 200PCS |
---|---|
Price: | usd 5.1 |
Packaging Details: | Follow UN38.3 Rule |
Delivery Time: | 7 days for single cell 15-20 days for battery pack |
Payment Terms: | T/T |
Supply Ability: | 50000 pack for one week |
Detail Information |
|||
Material: | LiFePO4 Battery | Capacity: | 25ah |
---|---|---|---|
Voltage: | 3.2v | Circle Life: | 2000times Base On DOD 80% |
Warranty: | 1 Year | Cell Size: | T: 9.0 * W:185 *H190MM |
Type: | Prismatic Type | Assembled: | Workable |
PO NO: | PLFC0717 | ||
High Light: | lifepo4 battery pack,lifepo4 rechargeable batteries |
Product Description
LiFePO4 Battery Cell 3.2V 25AH 09185190 For E-car E-Scooter Battery Pack
Quick Detail:
Place of Origin: |
Guang dong China (Mainland) |
Brand Name: |
TAC |
Model Name: |
IFR09185190 25Ah 3.2V |
Other Name: |
LiFePO4 25Ah lithium-ion Cell |
Nominal Voltage |
3.2V |
Nominal Capacity: |
25Ah |
Size: |
Max 9.0(T)*185(W)*190(H) mm |
Product Specification
No.
|
Item
|
General Parameter
|
Remark
|
|
1 |
Rated Capacity
|
Typical
|
25Ah |
Standard discharge(0.2 C5A) after Standard charge
|
Minimum
|
24.5Ah | |||
2 |
Nominal Voltage
|
3.2V |
Mean Operation Voltage
|
|
3 |
Voltage at end of Discharge
|
2.5V |
Discharge Cut-off Voltage
|
|
4 |
Charging Voltage
|
3.65V | ||
5 |
Internal Impedance
|
≤40mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
|
|
6 |
Standard charge
|
Constant Current 0.2C5A Constant Voltage 3.65V 0.01 C5Acut-off
|
||
7 |
Standard discharge
|
Constant current 0.2 C5A end voltage 2.0V
|
Charge and Discharge Performance
No.
|
Item
|
General Parameter
|
Remark
|
8 |
Fast charge
|
Constant Current 1C5A Constant Voltage 3.65V 0.01 C5Acut-off
|
|
9 |
Fast discharge
|
Constant current 1 C5A end voltage 2.0V
|
|
10 |
Maximum Continuous Charge Current
|
1 C5A | |
11 |
Maximum Continuous Discharge Current
|
1.5C5A | |
12 |
Operation Temperature Range
|
Charge: 0~45℃ |
60±25%R.H. Bare Cell
|
Discharge: -10~60℃ | |||
13 |
Storage Temperature Range
|
Less than 1 year: -20~25℃
|
60±25%R.H. at the shipment state
|
less than 3 months: -20~40℃
|
|||
14 |
Cell Dimension
|
Max 9.0(T)*185W)*190(H) mm |
Feature
1. High capacity 20ah for one cell, you can assembled higher capacity with less single cell
2. 3.2V standard voltage meet various equipment
3. Wide range of operating temperature; 0-45 degree,
4. Long operating time 2000times , usually keep 3-5 year

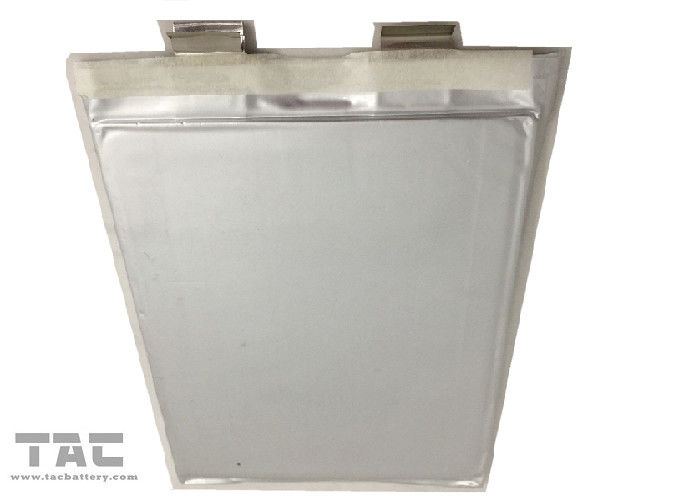

5. Prismatic Pouch Cell
6. Low self-discharge rate (less than 2% per year at 20°C).the battery remain capacity is 70% for original capacity after stock one year
Main Applications :
The high capacity lifepo4 cell can be used for various EV E-CAR E - Scooter
Prismatic Battery Cell for boat refrigerators ice maker, dishwasher, electronics
marine etc
Packing Manner
The battery put in plastic pallet one by one for avoid short circle
Available Model for the LIFePO4 Button Cell:
modle | size | capacity |
LPF92108250 3.2V 20AH | 9.2*108*250mm | 20ah |
LPF85200235 3.2V 21AH | 8.5*200*235mm | 21ah |
LPF09185190 3.2V 25AH | 9*185*190mm | 25ah |
LPF27135206 3.2V 60AH | 2.7*135*206mm | 60ah |
Similar Production for LiFePO4 Battery Cell 3.2V 25AH 09185190 For E-car E-Scooter Battery Pack
Cautions in use
To ensure proper use of the battery please read the manual carefully before using it.
. Handling
- Do not expose to, dispose of the battery in fire.
- Do not put the battery in a charger or equipment with wrong terminals connected.
- Avoid shorting the battery
- Avoid excessive physical shock or vibration.
- Do not disassemble or deform the battery.
- Do not immerse in water.
- Do not use the battery mixed with other different make, type, or model batteries.
- Keep out of the reach of children.
. Storage
- Store the battery in a cool, dry and well-ventilated area.
. Disposal
- Regulations vary for different countries.
- Dispose of in accordance with local regulations.
Battery operation instruction
Discharging current
The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.
Electric discharge temperature
The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.
Storing the Batteries
The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.
Period of Warranty
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.
