• 18650  3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB
  • 18650  3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB
18650  3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB

18650 3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB

Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: IFR18650 1500MAH 3.2V

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Price: usd 2-5.0
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Supply Ability: 50000 pack for one week
Get Best Price Contact Now

Detail Information

Materail: LiFePO4 Voltage: 3.2-3.65
Capacity: 1500mah Circle Life: 2000 Times
Warranty: 1 Year Jacket: Pvc White Or OEM
Connector: With Wire And OEM PO NO: PIFP0882
High Light:

lithium iron phosphate battery pack

,

lifepo4 rechargeable batteries

Product Description

3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB

Quick Detail for 3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB

  1. Nominal Voltage: 3.2V; Charge Voltage: 3.65V±0.03V. for Lifepo4 standard

  2. Nominal Capacity: 1000mAh.,Min: 900mah

  3. Application for road studs, LED light, flash light GSP Device

  4. The pcm with ntc temperature control performance

  5. Deep circle 2000times DOD 100%

Specification for 3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB

No. Items Specifications Remark
1 Nominal Capacity 1500mAh 0.2C Standard discharge
2 Minimum Capacity 1450mAh
3 Nominal Voltage 3.2V Mean Operation Voltage
4 Delivery voltage 3.25~3.34V Within 10 days from Factory
5 Charge Voltage 3.65V±0.03V By standard charge method
6 Standard charging method 0.5C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
7 Charge current 0.5C 750mA Standard charge, charge time about 3h(Ref)
1.0C 1500mA Rapid Charge, charge time about: ::2h(Ref)
8 Standard discharging method 0.2C constant current discharge to 2.5V,
9 Cell Internal Impedance ≤80mΩ Internal resistance measured at AC 1KHZ after 50% charge
10 Maximum charge current 1C For continuous charging mod
11 Maximum discharge current 1C For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)



Drawing For Battery Pack of  3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB

18650  3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB 0



NO Items Units: mm Remark
1 Diameter/ D1 18.7 Max
2 Diameter/ D2 22.7 Max
3 Height/ H 65.2 Max
4 Cable Length/ L 50±5

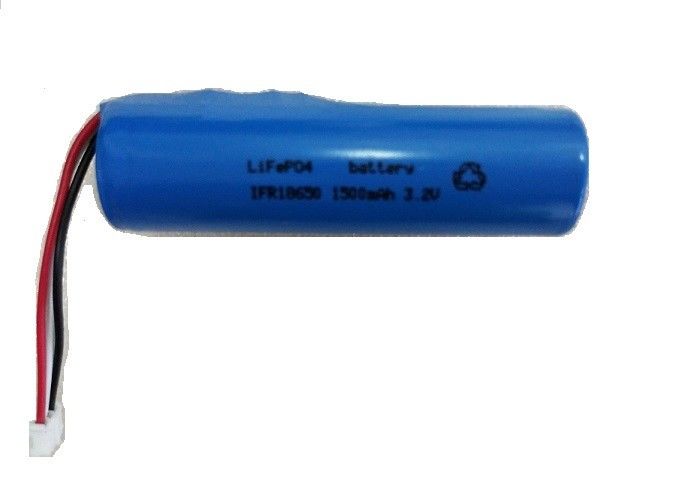

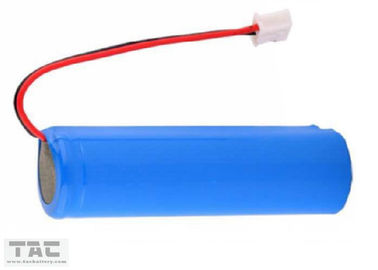

Pictures For 18650 3.2V LiFePO4 Battery Pack 1500mah For GPS Device

18650  3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB 1




Normal Packing

Battery pack protect small sponge bag one by one

50pcs in one inner box , 10 box in one standard export carton





18650  3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB 2





Other Similar Production

18650  3.2V LiFePO4 Battery Pack 1500mah For Car GPS Device With PCB 3

Period of Warranty

The period of warranty is one year from the date of shipment. TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.



Storage of the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.



Q&A



Q: Are you manufacturer or trading company?
A: HKTAC is over sale for famous manufacturer called Greatpower Group, assembly entity for battery packs, and a distributor of branded cells and battery accessories based on customer’s needs.
Q: Can you agree with OEM/ODM battery pack ?
A: Yes, OEM/ODM battery packs are warmly welcome.
Q: Do you have battery packs for famous company
A: Yes, we are supplier for Honywell etc
Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Max Size of the battery pack so that we can suggestion the reasonable cell
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. BMS performance require
Q: Can you print my logo on the battery jacket or housing?
A: Yes, custom logo service is available.
Q: Is sample order acceptable?
A: sure, sample orders for testing quality is reasonable and acceptable.
Q: How should I place an order?
A: Pls just confirm our PI if you need
Q: How should I pay? What modes of payment do you accept?
A: T/T, Paypal, LC
Q: Are renowned international brand battery cells available?
A: Yes international brand cells are available, please contact us for details.
Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
