12V LiFePO4 Battery Pack 18500 1000mah 4S1P For Boxed Lighting
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | TAC OEM ODM |
Certification: | MSDS REACH ROHS |
Model Number: | IFR18500 12V 1000MAH |
Payment & Shipping Terms:
Minimum Order Quantity: | 50 PCS |
---|---|
Price: | usd 10 15 |
Packaging Details: | 1pcs for one bag with UN38.3 |
Delivery Time: | 7-25 days after order confirm |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000pcs per month |
Detail Information |
|||
Material: | Lifepo4 | Voltage: | 12.8V |
---|---|---|---|
Capacity: | 1000mah | Circle Life: | 2000 Times |
Warranty: | 12 Months | Single Cell: | 18500 3.2v 1ah |
Dimension: | 75*20*60mm | Pvc Color: | Blue Black |
Connector: | With Or Without Decide By Buyer | Wire: | Ul1007 26# Or 24# |
High Light: | lithium iron phosphate battery pack,12 volt lithium battery |
Product Description
12V LiFePO4 Battery Pack 18500 1000mah 4S1P For Boxed Lighting
Specification for 12V LiFePO4 Battery Pack 18500 1000mah 4S1P For Boxed Lighting
Item | Rating | Note | |
Cell
|
Type | lifepo4 Battery | |
Cell Model | 18500-1Ah | ||
Nominal Capacity | 1000mAh |
Discharge : 0.2C Cut-off Voltage: 2.0V |
|
Minimum Capacity | 1000mAh |
Discharge : 0.2C Cut-off Voltage: 2.0V |
|
Nominal voltage | 3.2V | ||
Internal Impedance | ≤40mΩ | ||
Dimension | Max. 18.5*50mm | ||
Weight | Approx.40g | ||
Batterypack
|
Pack Method | 4S1P | |
Nominal Capacity | 1Ah |
Discharge : 0.2C Cut-off Voltage: 8.0V |
|
Minimum Capacity | 1Ah |
Discharge : 0.2C Cut-off Voltage: 8.0V |
|
Nominal Voltage | 12.8V | ||
Charge Voltage | 14.6V | ||
Discharge cut-off voltage | 8.0V | ||
Charge Method | CC/CV | ||
Standard Charge Current | 1A | 0.2C | |
Max. Charge Current | 2.5A | ||
Standard Discharge Current | 1A | 0.2C | |
Max. Continues Discharge current | 5A | ||
Cycle Life | 2000 times | 80% | |
Internal Impedance | 200mΩ | ||
Dimension | 75*20*60mm | MAX | |
Output Wire | UL1007 18AWG | 200mm | |
Output Connector | |||
Weight | Approx.160g | ||
Working Temperature Range |
Charge: 0°C--45°C Discharge: -20°C--50°C |
||
Storage Temperature | -20°C--50°C |

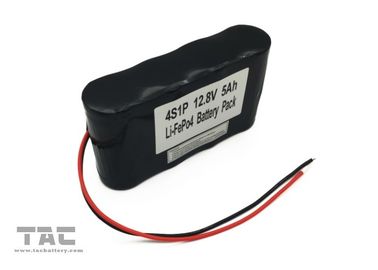

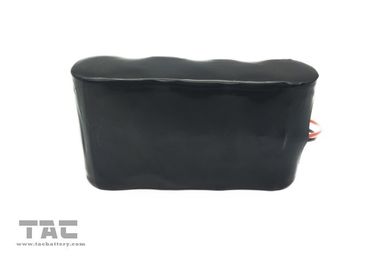

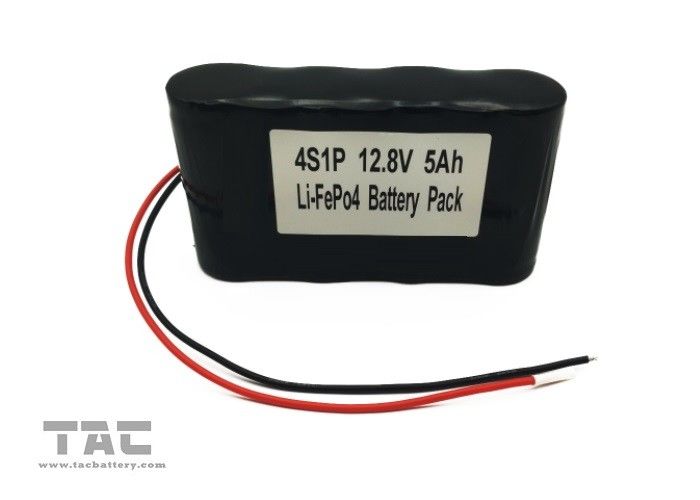

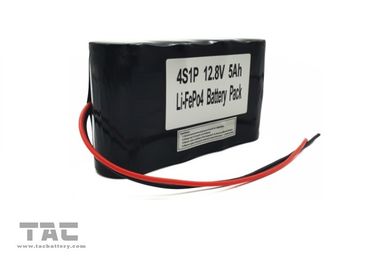

Battery Pack Show
Packing Detail
5 battery pack for one inner box , 5 box for one carton
