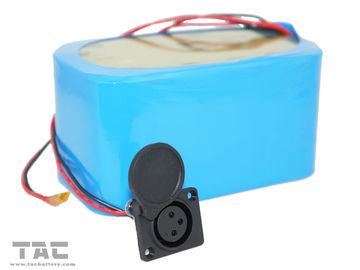

Power tool 12.8V 4.6AH Li-ion Rechargeable Batteries replacement For Playmobile
Product Details:
| Place of Origin: | shenzhen |
| Brand Name: | TAC |
| Certification: | UL,ROHS |
| Model Number: | PIFP0140 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 set |
|---|---|
| Price: | USD150- USD189 |
| Packaging Details: | 5pcs for each box , 10 box for each carton |
| Delivery Time: | 14Days after the order confirm |
| Payment Terms: | TT, LC, Paypal, etc |
| Supply Ability: | 1000Piece/days |
|
Detail Information |
|||
| Voltage: | 12.8V-14.6 | Size: | 94mm X 87mm X151mm |
|---|---|---|---|
| Capacity: | 4.6AH | Material: | Lithium -on Battery |
| BMS: | With BMS | Single Cell: | IFR26650 2300MAH 3.2V |
| Accemble: | 4s2p | Weight: | 910g |
| Circle Life: | 2000 Times | Warranty: | 1 Year |
| High Light: | rechargeable batteries for power tools,power tools battery |
||
Product Description
Power tool 12.8V 4.6AH Li-ion Rechargeable Batteries Replacement For Play mobile
Specification for Power tool 12.8V 4.6AH Li-ion Rechargeable Batteries Replacement For Play mobile
|
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
4.6Ah |
Standard discharge(0.5C)after standard charge(0.5C) |
|
2 |
Minimal Rated Capacity |
4.3Ah |
|
|
3 |
Nominal Voltage |
12.8V |
|
|
4 |
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.5C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.5C to 10.0V ◆Temperature:20±5℃ ◆Carry out 800cycles |
|
5 |
Discharge cut-off voltage |
8.0V |
10.0V(recommended) |
|
6 |
Charging cut-off voltage |
15.6V |
14.6V(recommended) |
|
7 |
Cell and assembly method |
IFR26650P-2.3AH |
4S2P |
|
8 |
Packing material |
ABS |
|
|
9 |
Standard charge |
0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C |
Charge time : Approx 3.5h |
|
10 |
Standard discharge |
Constant current 0.2C Cut-off voltage 10.0V |
|
|
11 |
Maximum Charge Current |
1C |
|
|
12 |
Maximum Discharge Current |
78A |
Over current 240A 1S |
|
13 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H.
|
|
|
|
Discharge: -10~50℃ |
|
|
14 |
Storage Temperature Range |
Less than 1 year : 0~25℃ |
60±25%R.H. at the shipment state |
|
|
|
Less than 3 months:-5~35℃ |
|
|
15 |
Weight |
Approx: 910.0g±10.0g |
|
|
16 |
Pack Dimension |
High:94mmWidth: 87mm Length: 151mm
|
|
Application for Battery Pack
E-CAR E-Vehicle
Solar production
Power tool
Packing For Lithium Battery Pack
Quality Control Process
We are certified with ISO-9001, and strictly follow the ISO procedures.We do 100% testing for any of batteries before the order has been deliveried one by one including of the voltage inner dependance
Certificates
CE and RoHS , UN38.3 for single cell
Sales Service
1 Year Warranty for any of our battery.We keep promise we do full refund for the defective battery.
Payment Mehod
We accept T/T, L/C for the large quantities order, and Western union and Paypal will be accept for the small quantities order of battery.
Delivery date
20-25 days for normal model
35-40 days for OEM design

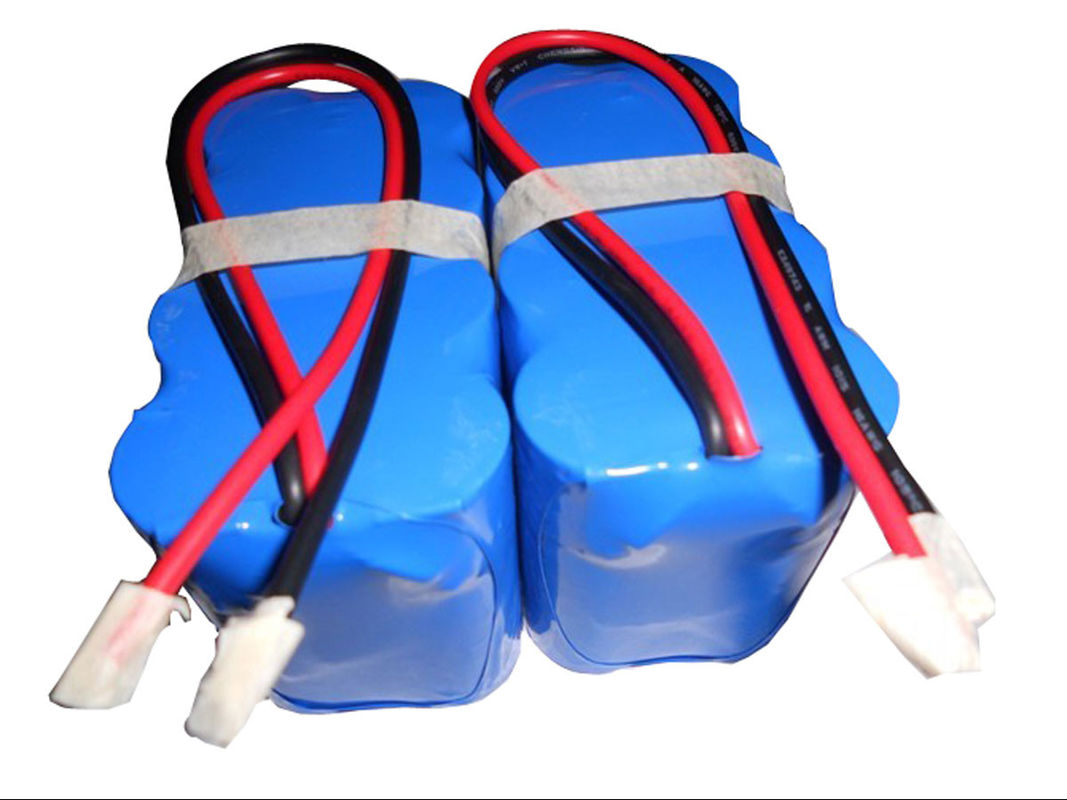

Structure:
The single cell can be assembly a battery pack what you want
More 12v Battery pack with IFR26650
Period of Warranty
The period of warranty is 12 months from the date of shipment. TAC guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Storing the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over-discharge.
