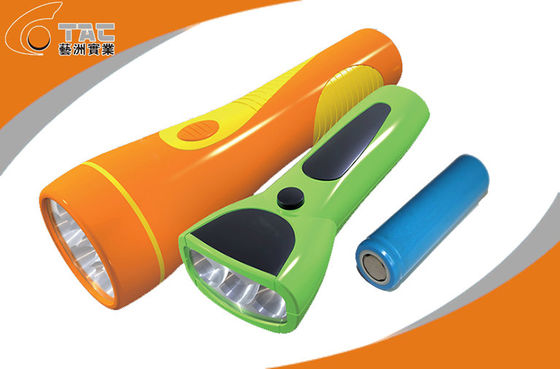

Deep Discharge Solar Led Flashlight AA Batteries for toys digital products
Product Details:
Place of Origin: | GUANGZHOU |
Brand Name: | TAC |
Certification: | MSDS REACH |
Model Number: | 3.0V/3.2V/3.7V/7.4V/12.8V |
Payment & Shipping Terms:
Minimum Order Quantity: | 200pcs |
---|---|
Price: | usd 1-5 |
Packaging Details: | 50pcs/box |
Delivery Time: | 7-10 days |
Payment Terms: | L/C T/T paypal |
Supply Ability: | 100000/month |
Detail Information |
|||
Type: | LiFePO4 Battery | Voltage: | 3.7v Or 3.2V |
---|---|---|---|
Capacity: | 200 T0 900mah | Size: | AA 14.0*50.5mm |
Circel Life: | 500 To 2000times | Color: | Blue Green Or OEM |
Warranty: | 1 Years | ||
High Light: | flashlight rechargeable batteries,led flashlight battery life |
Product Description
Deep Discharge Solar Led Flashlight AA Batteries for toys digital products
Quick Detail for Deep Discharge Solar Led Flashlight AA Batteries for toys digital products
Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information
IFR14500 3.2v flat type
IFR14505 3.2V Top type
The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm
Pls check the max size whether meet your require.
Quick Detail:
1.14505 as the same 14500
2.Have different capacity:250mAh,300mAh,400mAh,450mAh 500mAh,600mAh,700mAh and so on.
3. AA battery can make a pack or use by single ell
4.Application for road studs, LED light, flash light ect.
Specification:
No. | Items | Specifications | Remark | |
1 | Nominal Capacity | 600mAh | 0.2C Standard discharge | |
2 | Minimum Capacity | 550mAh | ||
3 | Nominal Voltage | 3.2V | Mean Operation Voltage | |
4 | Delivery voltage | 3.25~3.34V | Within 10 days from Factory | |
5 | Charge Voltage | 3.65V±0.03V | By standard charge method | |
6 | Standard charging method | 0.5C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C | ||
7 | Charge current | 0.5C | 250mA | Standard charge, charge time about 3h(Ref) |
1.0C | 500mA | Rapid Charge, charge time about: ::2h(Ref) | ||
8 | Standard discharging method | 0.2C constant current discharge to 2.5V, | ||
9 |
Cell Internal Impedance
|
≤80mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
10 | Maximum charge current | 1C | For continuous charging mod | |
11 | Maximum discharge current | 1C | For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity) |
Structure of the cell:
Battery Pictures
NO | Items | Units: mm |
1 | Diameter(D) | 14.2±0.3 |
2 | Height(H) | 50.2±0.02 |
Packing Manners
Application for LiFePO4 Battery
solar lighting
gardon lamp
flash light
LED Lighting
Certification for Cell
Period of Warranty
The period of warranty is six months from the date of shipment. Tac guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse.
Storing the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per year to prevent over discharge.
1.14505 as the same 14500
2.Have different capacity:250mAh,300mAh,400mAh,450mAh 500mAh,600mAh,700mAh and so on.
3. AA battery can make a pack or use by single ell
4.Application for road studs, LED light, flash light ect.
