3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for Medical Instruments
Product Details:
Place of Origin: | Shenzhen zhuhai |
Brand Name: | TAC |
Certification: | REACH MSDS |
Model Number: | ER14505 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100 pcs |
---|---|
Price: | USD 1.0 |
Packaging Details: | 20 pcs each pallet / 1 pack for one box |
Delivery Time: | 7-25 days after order confirm |
Payment Terms: | T/T, LC, Pay pal etc. |
Supply Ability: | 100,000PCS/Day |
Detail Information |
|||
Type: | LiSOCl2 Battery | Capacity: | 2400mah |
---|---|---|---|
Voltage: | 3.6V | Long Life: | 10 Years |
Warranty: | 12 Months | Size: | AA 14*50mm |
Primary: | Non-rechargeble | Tag: | With Or Without Follow Custome's Require |
High Light: | lithium battery packs,rechargeable li-on battery |
Product Description
3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for Medical Instruments
Description For 3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for Medical Instruments
1. High energy density: the battery can reach 420WH/KG and 800WH/dm3
2. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load, the end voltage is 2.0V or 2.5V.
3. Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged, the capacity output is still more than 90%.
4. Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃
5. Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than10years under room temperature.
Application:
- Intelligent water meter, Ammeter, Gas Meter
- Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
- Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
- Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.
Packing Method:
The battery protected by specially sponge tray
100PCS/layer, 1000Pcs/Carton, Weight: 20KG Size: 44*27*33cm
Specification For 3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for Medical Instruments
No | Item | Data |
1 | Nominal voltage: | 3.6V |
2 | Nominal capacity: | 2400mAh(1.0mA / 2.0V) |
3 | Discharge end-voltage: | 2.0V |
4 | Operating voltage : | 3.4V(330Ω, in 5s) |
5 | Max constant discharge current: | 100mA |
6 | Max. pulse current: | 200mA |
7 | Ambient temperature range: | -55~ +85℃ |
8 | Storage life: | ≥10 year, Yearly self-discharge ≤ 1% |
Size; Max dimension : φ10.5mm×H45.0mm
If you have purchase the ER battery from other supplier, pls take close attention to max size
in order to avoid the size over your space limit

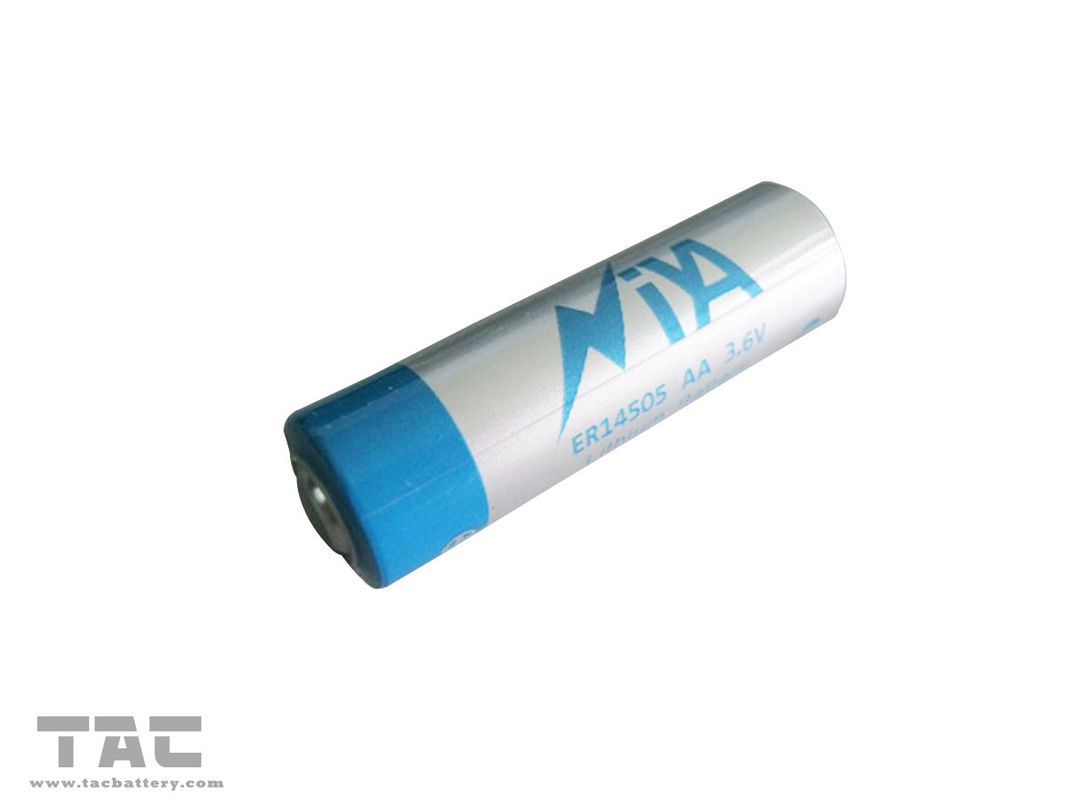

Pictures:
3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for Medical Instruments
Product List For ER Battery With High Rate Performance
Storage Standard
Tag: ER14505 AA battery;3.6V Energizer Lithium battery;3.6v battery
