| Place of Origin: | SHENZHEN |
| Brand Name: | TAC or OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | PLIP0459 |
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | usd 10-20 |
| Packaging Details: | meet UN38.3 Certification |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | TT/Paypal/LC |
| Supply Ability: | 100000PCS EACH WEEK |
| Material: | Lithium-ion | Voltage: | 22.2v |
|---|---|---|---|
| Capacity: | 2200mah | Circle Life: | 500 Times |
| Warranty: | 12 Months | PVC: | Blue |
| Pcb: | With Pcb | Connector: | Customized |
| High Light: | lithium iron phosphate battery pack,lithium ion phosphate batteries |
||
|
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
2.2Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5) |
|
2 |
Minimal Rated |
2.05Ah |
|
|
3 |
Nominal Voltage |
22.2V |
|
|
4 |
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 25.2V, then CV till current to 0.05C ◆Rest: 30min. |
|
5 |
Discharge cut-off voltage |
16.8V |
18.0V( recommended) |
|
6 |
Charging cut-off voltage |
25.2 V |
25.2V (recommended) |
|
7 |
Cell and assembly method |
INR18650EC-2.2AH |
6S1P |
|
8 |
Standard charge |
0.2C constant current(CC) charge to 25.2V,then constant voltage (CC)25.2V charge till charge current decline to ≤0.05C |
Charge time : Approx 7h |
|
9 |
Standard discharge |
Constant current 0.2C |
|
|
10 |
Maximum Charge Current |
0.5A |
|
|
11 |
Continuous Discharge Current |
0.5A |
|
|
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
|
Discharge: -10~60℃ |
|
|
13 |
Storage Temperature Range |
Less than 1 year : 0~25℃ |
60±25%R.H. |
|
|
|
Less than 3 months:-5~35℃ |
|
|
14 |
Weight |
Approx: 300g |
|
|
15 |
Max. Dimension |
High:90mm |
|
|
|
|
Width: 37mm |
|
|
|
|
Length: 57mm |
|
Pictures

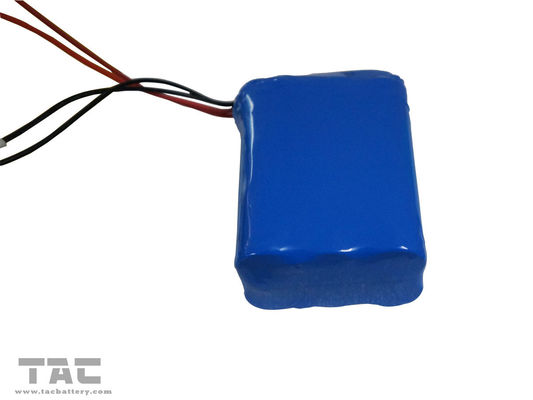

Lithium ion Battery Pack ICR18650 22.2V 2200mAh with wires
Various Electric Device
Sound divce
Vidicon
e-bike
Period of Warranty
The period of warranty is one year from the date of shipment. HK TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Storage of the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.
