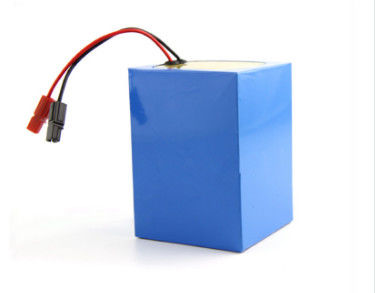

Llithium Iron Phosphate Battery 12v 40AH PACK For Medical Carts

Llithium Iron Phosphate Battery 12v 40AH PACK For Medical Carts

    • Llithium Iron Phosphate Battery 12v 40AH PACK  For Medical Carts
    • Llithium Iron Phosphate Battery 12v 40AH PACK  For Medical Carts
  • Llithium Iron Phosphate Battery 12v 40AH PACK  For Medical Carts

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UL/ROHS/CE/BIS
    Model Number: 12V40AH

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 UNIT
    Price: usd 200-500
    Packaging Details: 1pcs/box;2 boxes/carton
    Delivery Time: 15-20 days after confirm the order
    Payment Terms: L/C, T/T, PAYPAL
    Supply Ability: 100000 units per month
    Contact Now
    Detailed Product Description
    Model Number:: IFR26650 12.8V 40AH Nominal Voltage:: 12V
    Rated Capacity:: 40AH Type:: Llithium Iron Phosphate Battery
    Weight:: 4000g±50g OEM & ODM:: Support
    Circle Life: 2000times Single Cell Inside: Lifepo4 26650
    Application: For Medical Carts Warranty: 12 Months

    Llithium Iron Phosphate Battery 12v 40AH PACK For Medical Carts

    Quick Detail:


    Model Number: 12V40Ah Brand Name: TAC-PIFP001
    Nominal Voltage: 12V Rated Capacity: 40AH
    Type: LiFePO4 Lithium Battery Size: 73*108*315mm
    Weight: 4000g±50g Certification UN, ROHS, REACH Compliance
    OEM & ODM: Support Warranty: 12months


    Features For Llithium Iron Phosphate Battery

    1. This LiFePO4 batteries model that can be used as 12V VRLA/SLA replacements
    2. LiFePO4 Lithium Iron Phosphate Battery 12.8V40AH, Flexible accembled by IFR18650 OR 26650 to meet your size require
    3. The battery pack with or without shell follow customers require
    4. High energy density than normal lithium ion battery
    5. 0-60 degree operation temperature meet various environment
    6. Safe performance pass the UN38.3 and UL for cell
    7. Long cycle life :deep circle , more than 2000times base on DOD 80%



    LiFePO4 Lithium Iron Phosphate Battery 12.8V40AH Specifications

    No.


    Item


    General Parameter


    Remark


    1

    Rated Capacity


    40.0Ah

    Standard discharge(0.2 C5)after standard charge(0.2 C5)


    2

    Minimal Rated
    Capacity


    38.0Ah
    3

    Nominal Voltage


    12.8V
    4

    Cycle Life



    Higher than 60% of the Initial Capacity of the Cells

    ◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C

    ◆Rest: 30min.
    ◆Discharge: 0.2C to 10.0V
    ◆Temperature:20±5℃
    ◆Carry out 2000cycles


    5

    Discharge cut-off voltage


    10.0V



    6

    Charging cut-off voltage


    14.8V



    7

    Cell and assembly method


    IFR26650EC-3.3AH 4S12P
    8

    Housing material


    ABS+PC housing/


    with or without





    Application:



    1. Electric Propelling Applications  Engine Starting Battery
    2. Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.
    3. Intellectual Robots  : Power tools: electric drills, toys
    4. Energy Storage: Solar-Wind Power System  City Grid (On/Off)   Back-up System and UPS
    5. Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
    6. Other Applications
    7. Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light

    Packing Manner

    The battery pack were putted into specially foam shelf so that aovid vocation and short circle

    the outer carton is 7 level extra thicken paper standard export carton



    Llithium Iron Phosphate Battery 12v 40AH PACK  For Medical Carts

    FAQ

    Q: Are you manufacturer?
    A: Yes, we are battery manufacturer cover lithium-ion lifepo4 polymer lithium , You are warmly welcome to visit our factory if you have interest!
    Q:  II have new design for the ESS , but we are not clearly about the battery ,can you provide?
    A: Yes, we do.  our R&D team aims to provide full solution of battery system for your any battery project
    Q: Is OEM/ODM available?
    A: Sure , just let me know your require
    Q: Can you provide sample with 1 pc?
    A: Yes, we would like to support one sample to your so that you can  test our battery quality first.

        pls just pay for the shipping fee


    Delivery

    20 days for the standard module after buyer confirm the order
    35-40 dasy for OEM model


    12v 40AH PACK For Medical Carts with outer Shell

    Llithium Iron Phosphate Battery 12v 40AH PACK  For Medical Carts


    Other Similar Battery Pack Without Shell

    Llithium Iron Phosphate Battery 12v 40AH PACK  For Medical Carts
