OEM / ODM 15Ah 12V LiFePO4 Battery Pack , Scooter / E Bike Lifepo4 Battery Pack
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | TAC OEM ODM |
Certification: | MSDS REACH ROHS |
Model Number: | 12.8V 15Ah |
Payment & Shipping Terms:
Minimum Order Quantity: | 50 PCS |
---|---|
Price: | usd 10 |
Packaging Details: | 1pcs for one bag with UN38.3 |
Delivery Time: | 7-25 days after order confirm |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000units/days |
Detail Information |
|||
Model Number:: | 12.8V15Ah | Brand Name:: | TAC |
---|---|---|---|
Nominal Voltage:: | 12.8V | Rated Capacity:: | 15AH |
Type:: | LiFePO4 Lithium Battery | Size:: | T33:W133:L272mm |
Weight:: | 1.80Kg | OEM & ODM:: | Support |
High Light: | lithium iron phosphate battery pack,12 volt lithium battery |
Product Description
12.8V 15Ah Lifepo4 Battery Packs 12.8Volt 1500mAh For Out Door Backup Power Storage System
Quick Detail for 12.8V 15Ah Lifepo4 Battery Packs 12.8Volt 1500mAh For Out Door Backup Power Storage System
Model Number: | 12.8V15Ah | Brand Name: | TAC |
Nominal Voltage: | 12.8V | Rated Capacity: | 15AH |
Type: | LiFePO4 Lithium Battery | Size: | T33:W133:L272mm |
Weight: | 1.80Kg | Certification: | CE,ROSH,UN38.3,BIS |
OEM & ODM: | Support | Warranty: | 12months |
Features: 1. IFM12.8V15Ah LiFePo4 Battery Pack IFR26650-3.0AH 2. Large energy density 3. Small volume and light weight 4. Long cycle life 5. No pollution,eco-friendly 6. Improved safety 7. Good high-temperature performance. 8. MOQ: 50set |
12.8V 15Ah Lifepo4 Battery Packs Specification:
No.
|
Item
|
General Parameter
|
Remark
|
1 |
Rated Capacity
|
15.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5)
|
2 |
Minimal Rated Capacity
|
14.5Ah | |
3 |
Nominal Voltage
|
12.8V | |
4 |
Cycle Life
|
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles |
5 |
Discharge cut-off voltage
|
9.2V |
10.0V( recommended)
|
6 |
Charging cut-off voltage
|
14.8V |
14.6V (recommended)
|
7 |
Cell and assembly method
|
IFR26650-3.0AH | 4S5P |
8 |
Housing material
|
PVC | |
9 |
Weight
|
Approx/: 1.80Kg | |
10 |
Max. Dimension
|
thickness:33mm | |
Width: 133mm | |||
Length: 272mm |
Packaging & Delivery
Packaging Details:
|
Standard Industry Carton+Wooden Pallet
|
Delivery Detail:
|
Shipped in 20 days after payment
|
Application:
- Robotics Vacuum Cleaner
- Solar street light
- Such as e-bike rent bikes.
- Scooter
- Electric tool
- Electric drill
- Electric saw
- Small medical equipment
- Portable equipment

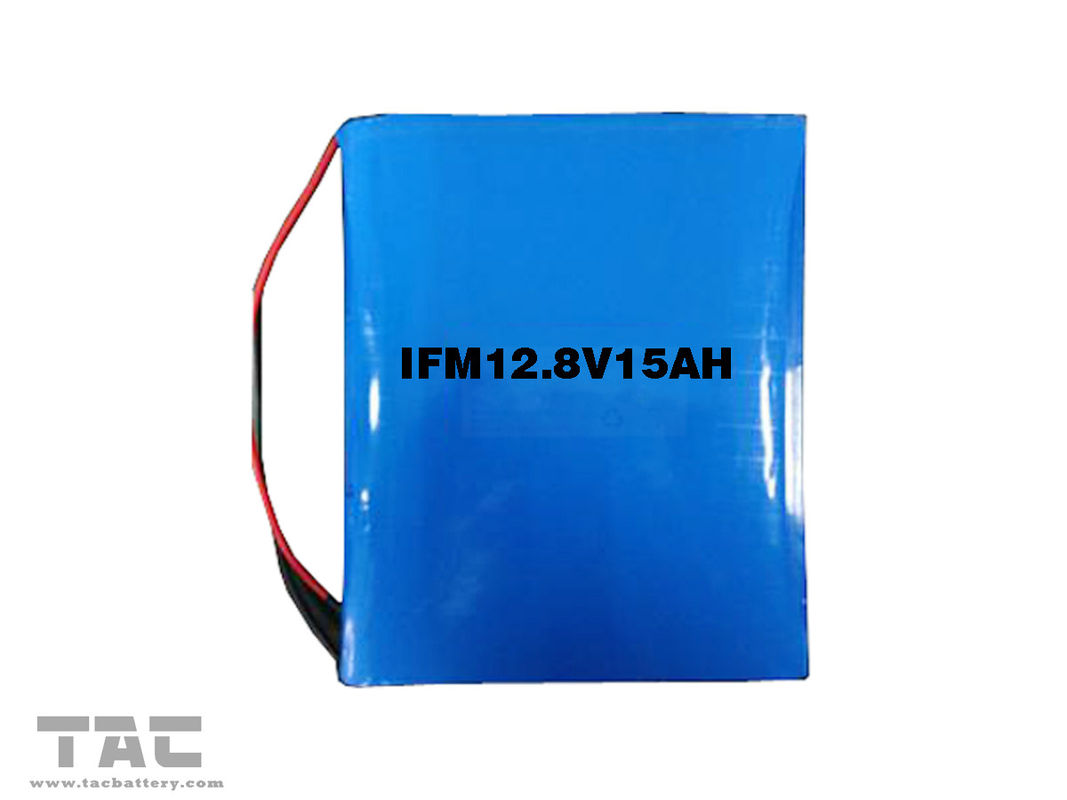

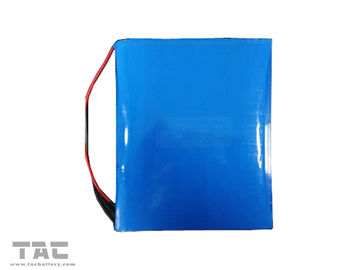

Picture for 12.8V 15Ah LiFePO4 Battery:
Quality Control
We sure our batteries keep high quality base as below
The A grade cell with 100% fully truth capacity
1. The newly produced cells (within 3-5months ).
2. Then Using the import IC control cells sorting machine, to select the same voltage, resistance and capacity of the cells in one time.
(1). The voltage difference < 5 mv
(2). The resistance difference < 20 mΩ
(3). Th capacity difference <50 mah
During this process, some unqualified batteries will be screened out.
3. Pack with same voltage, capacity and resistance cells assembled together, the whole battery pack with more uniformly discharge, and also will ensure greater and longer battery cycle life.
