3.2V LiFePO4 Battery 6000mah Battery Pack for Solar Powered Remote Weather Stations
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | IFR26650 6000MAH 3.2V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | USD4-6 / SET |
| Packaging Details: | Follow UN38.3 Rule |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Supply Ability: | 50000 pack for one week |
|
Detail Information |
|||
| Type: | 3.2V LiFePO4 Battery | Voltage: | 3.2V |
|---|---|---|---|
| Capacity: | 6000mah | Circle Life: | 2000 Times |
| Application: | Solar Powered Remote Weather Stations | Expiration: | 12 Months |
| Pvc: | Blue | Wire And Connector: | Customized |
| High Light: | lifepo4 battery pack,lithium iron phosphate battery pack |
||
Product Description
3.2V LiFePO4 Battery 6000mah Battery Pack for Solar Powered Remote Weather Stations
Feature for 3.2V LiFePO4 Battery 6000mah Battery Pack for Solar Powered Remote Weather Stations
- The battery pack made by IFR26650 3000mAh 3.2V 1P2S
- The battery pack with pcb and wire connector , we assembled suitable pcb wire and connector for each difference application
- The max size of the finished product with customer's require
- Have a long cycle life about 2000 times.
Specification for 3.2V LiFePO4 Battery 6000mah Battery Pack for Solar Powered Remote Weather Stations
|
No.
|
Item | General Parameter | Remark |
| 1 | Rated Capacity | 6.0Ah | Standard discharge(0.2 C5)after standard charge(0.2 C5) |
| 2 |
Minimal Rated Capacity |
3.2Ah | |
| 3 | Nominal Voltage | 3.65V | |
| 4 | Life Exception | Higher than 80% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 10.95V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 7.5V ◆Temperature:20±5℃ ◆Carry out 1200cycles 100%DOD |
| 5 | Discharge cut-off voltage | ≥2.5V | 7.5V( recommended) |
| 6 | Charging cut-off voltage | ≤3.65V | 10.95V (recommended) |
| 7 | Cell and assembly method | IFR26650-3.0Ah | 1S2P |
| 8 | Housing material | PVC | |
| 9 | Standard charge | 0.2C constant current(CC) charge to10.95V,then constant voltage (CV)10.95V charge till charge current decline to ≤0.05C | Charge time : Approx 7h |
| 10 | Standard discharge |
Constant current 0.2C Cut-off voltage 7.5V |
|
| 11 | Maximum Charge Current | 5A | 5A(recommended) |
| 12 |
Max Continuous Discharge Current |
5A | |
| 13 |
Max Continuous Output power |
48W | |
| 14 | Operation Temperature Range | Charge: 0~45℃ |
60±25%R.H. 23 ± 5°C( recommended) |
| Discharge: -10~60℃(cell surface temperature≤80℃) | |||
| 15 | Storage Temperature Range | Less than 1 year : 0~25℃ |
60±25%R.H. at the shipment state |
| Less than 3 months:-10~35℃ | |||
| 16 | Weight | Approx: 540g | IFR26650-3.3Ah*6 |
| 17 | Max. Dimension | Height:70.0mm | Type of terminal |
| Width:28mm | |||
| Length: 55mm |
Application
This battery pack is speically design for Solar Powered Remote Weather Stations
and the similar production can be used various application as below
The Packing Standard For The Lifepo4 Battery Pack
The battery pack follow the un38.3 transportation rules
protected by sponge and then put into the box
1 pcs in one box and 20 box in one carton

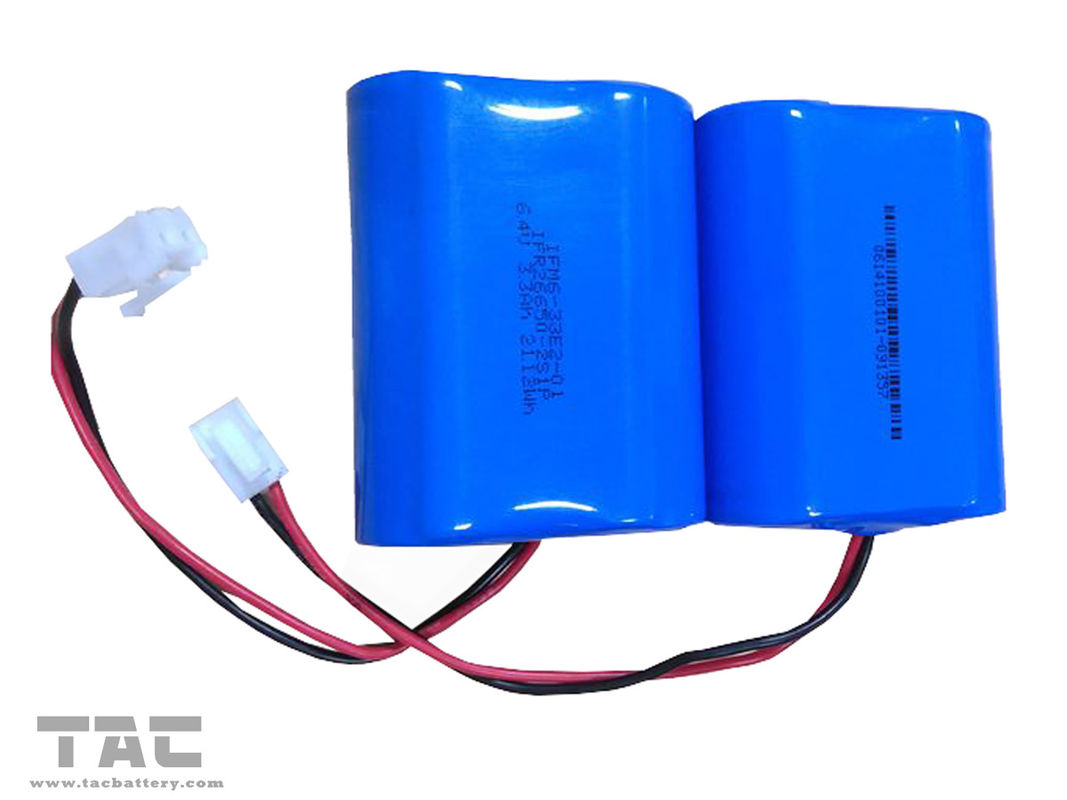

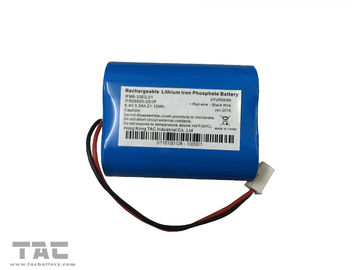

The Battery Picture for 3.2V LiFePO4 Battery 6000mah Battery Pack
The battery pack customized in connector and wire with buyer's require
Want to Know more details about this product
