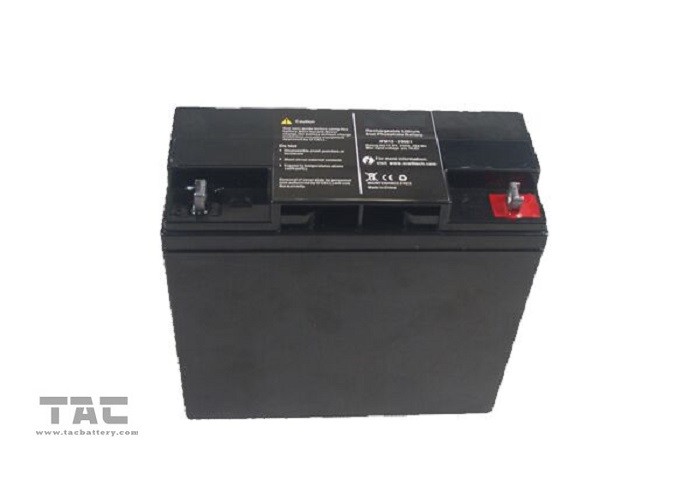

12V Deep Circle Battery Pack 20AH with Wide Temperature For Electric Fish Machine
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | PIFP0609 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | usd 500-1000 |
| Packaging Details: | 1pcs for one bag with UN38.3 |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000UNITS PER MONTH |
|
Detail Information |
|||
| Materail: | Lifepo4 Battery | Circle Life: | 2000 Times |
|---|---|---|---|
| Capacity: | 20ah | Voltage: | 12.8v |
| Pvc: | Blue | Bms: | Including |
| Wire And Connector: | With Customer Require | Size: | 132*77*140mm |
| Accemble: | Ifr26650 3300mah 4s6p | Warranty: | 12 Months |
| High Light: | lithium iron phosphate battery pack,12 volt lithium battery |
||
Product Description
12V Deep Circle Battery Pack 20AH with Wide Temperature For Electric Fish Machine
Feature for 12V Deep Circle Battery Pack 20AH with Wide Temperature For Electric Fish Machine
1) The cycle life is about 2000 times ,long circle life
2) Environment friendly the cell passed Rohs
3) High energy for 100% truth capacity
4) Application widely,such as solar product,electronic machine and so on.
5)The battery with black plastic case
Specification For 12V Deep Circle Battery Pack 20AH with Wide Temperature For Electric Fish Machine
|
No.
|
Item
|
General Parameter
|
Remark
|
| 1 |
Rated Capacity
|
20.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5)
|
| 2 |
Minimal Rated Capacity
|
19.5Ah | |
| 3 |
Nominal Voltage
|
12.8V | |
| 4 |
Cycle Life
|
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles
|
| 5 |
Discharge cut-off voltage
|
9.2V |
|
| 6 |
Charging cut-off voltage
|
14.8V |
|
| 7 |
Cell and assembly method
|
IFR26650-3.3AH | 4S6P |
| 8 |
Housing material
|
PVC |
The Charge And Discharge Performance
|
No.
|
Item
|
General Parameter
|
Remark
|
| 9 |
Standard charge
|
0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C
|
Charge time : Approx 7h
|
| 10 |
Standard discharge
|
Constant current 0.2C Cut-off voltage 10.0V
|
|
| 11 |
Maximum Charge Current
|
7A | |
| 12 |
Continuous Discharge Current
|
7A | |
| 13 |
Operation Temperature Range
|
Charge: 0~45℃ |
60±25%R.H.
|
| Discharge: -10~60℃ | |||
| 14 |
Storage Temperature Range
|
Less than 1 year : 0~25℃
|
60±25%R.H. at the shipment state
|
|
Less than 3 months:-5~35℃
|
|||
| 15 |
Weight
|
Approx/: 2.20Kg | |
| 16 |
Max. Dimension
|
thickness/:30mm |
|
| Width/ 159mm | |||
| Length/ 272mm |
Application For 12V Deep Circle Battery Pack 20AH with Wide Temperature For Electric Fish Machine
Normal Packing for Battery Pack
one set pack with thick bubble pack
1 set for 1 inner box and 10 box in one carton
Delivery Date
7-10 Days for normal standard production after the buyer confirm the pI
25-35 Days for OEM order
Certification for Battery Cell of the whole pack
Similar Battery Pack Picture
