Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh

Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh

    • Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh
    • Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh
  • Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh

    Product Details:

    Place of Origin: GD.China
    Brand Name: Tac
    Certification: UL, Rohs
    Model Number: 0865158 3.6v 8000mah

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000Blister
    Price: usd7.0
    Packaging Details: 20 pcs in one pallet, 10 pallet in one carton
    Delivery Time: 14days after the order confirm
    Payment Terms: T/T, LC,Paypal etc.
    Supply Ability: 30K/Day
    Detailed Product Description
    Material: Polymer Lithium Voltage: 3.6-4.2v
    Capacity: 8000mah Circle Life: 500 Times
    Warranty: 12 Years Pack: Workable
    Rechargeable: Yes OEM \ODM: Yes
    Brand: TAC Accemble: PCB Wire And Connector

    Lipo Battery 0865158 3.7V 8000mAh Cells Square Soft pack for wireless

    Specification forLipo Battery 0865158 3.7V 8000mAh Cells Square Soft pack for wireless



    No.

    Item

    Rated Performance

    Remark

    1

    Rated Capacity

    standard

    8000mAh

    Standard discharge(0.2C
    C5A) after Standard charge

    2

    Nominal Voltage

    3.7V-4.2V

    Mean Operation Voltage
    During Standard Discharge
    After  Standard  Charge

    3

    Voltage at end of
    Discharge

    3.0V

    Discharge Cut-off Voltage

    4

    Charging Voltage

    4.2±0.03V



    5

    AC  (1KHz) Impedance
    New Cell Max.(mW)

    ≤50mΩ



    6

    Standard charge

    Constant Current 0.5C5A
    Constant Voltage 4.2V
    0.01 C5A cut-off

    Charge time : Approx 4.0h

    7

    Standard discharge

    Constant current 0.2 C5A
    end voltage 3.0 V



    8

    Fast charge

    Constant Current 1C5A
    Constant Voltage 4.2V
    0.01 C5A cut-off

    Charge time : Approx 2.5h

    9

    Fast discharge

    Constant current 1 C5A
    end voltage 3.0 V



    10

    Maximum Continuous
    Charge Current

    1 C5A



    11

    Maximum Continuous
     Discharge Current

    1.5 C5A



    12

    Operation Temperature Range

    Charge: 0~45℃

    60±25%R.H.
    Be Cell

    Discharge: -20~60℃

    13

    Storage Temperature
    Range

    Less than 1 year: -20~25℃

    60±25%R.H.
    at the shipment state

    less than 3 months: -20~40℃

    14

    Weight

    Approx :43g

    Bare Cell

    15

    Cell  Dimension

    Length: Max.51.5mm

    Initial  Dimension

    Width: Max.55.5mm

    Thickness: Max. 8.8mm





    packing method for battery  pack

    all the polymer battery cell or pack will pack similar with below

    10 pcs  battery put in the plastic tray and 10 tray in one strong export carton



    Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh

    Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh



    delivery date

    the battery can be shipped out within 20 -25 days after the customer confirm the order

    if you need specially part for the pack , 30-35 days after all the information are confirmed.

    we ship out the cargo by air ocean express with your require





    Similar Model for lipo battery

    Model

    Nominal Voltage (V)

    Typical Cap.

    Dimension(mm)

    (mm)

    Thickness

    Width

    Height

    073496DHP

    3.7

    2100

    7.8

    34

    96

    LP0567100

    3.7

    3400

    4.8

    67

    100

    LP066166

    3.7

    2750

    6.1

    61

    66

    LP555376

    3.7

    2300

    5.6

    53

    76

    LP085065

    3.7

    2600

    7.8

    50

    65

    LP085080

    3.7

    3400

    8

    50

    80

    LP0845131

    3.7

    5100

    7.5

    45

    131

    LP0831134

    3.7

    4000

    8.1

    31

    132

    LP55100100

    3.7

    5600

    5.5

    100

    100

    LP605590

    3.7

    3400

    6

    55

    90

    LP9051109

    3.7

    5500

    9

    51

    109

    LP9551119

    3.7

    6800

    9.5

    51

    119

    LP7044125

    3.7

    4200

    7

    44

    125

    LP7545135

    3.7

    4500

    7.5

    45

    135

    LP704374

    3.7

    2200

    7

    43

    74

    LP854374

    3.7

    3000

    8.5

    43

    74



    Application

    Application for Lipo Battery 0865158 3.7V 8000mAh Cells Square Soft pack for wireless

    the battery customized for wireless equipment, high capacity 8000mah with protect board wire and connector.

    and the polymer battery cell can be used in below sevice

    1. Blue tooth
    2. Small medical equipment and portable equipment
    3. airplane
    4. Solar and wind power generation energy storage devices
    5. Remote control cars, boat, aircraft, toys
    6. Medical device,pos machine,CCTV camera,portable device,consumer electronics.
    7. car starter
    8. solar light





    Product photos

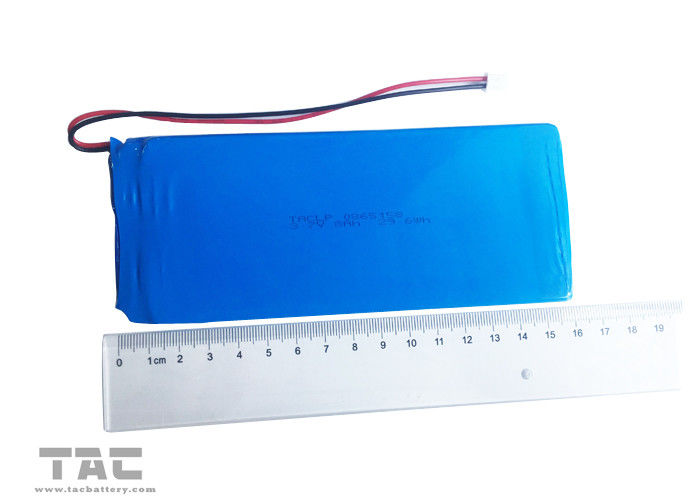

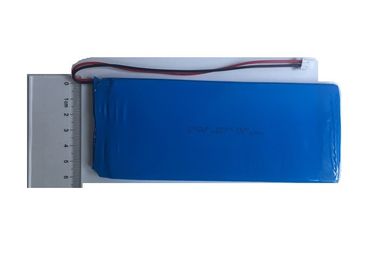

    Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh

    Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh
