Cylindrical LiFePO4 Battery IFR32700 6AH 3.2V With Tag For  Electronic Fence

Cylindrical LiFePO4 Battery IFR32700 6AH 3.2V With Tag For Electronic Fence

Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: IFR32700T 6AH 3.2V

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Price: usd 3-5
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: L/C, T/T
Supply Ability: 50000 pack for one week
Get Best Price Contact Now

Detail Information

Material: Lifepo4 Battery Capacity: 6 Ah
Voltage: 3.2v Tag: 1 Pin For Positive 2 Pin For Negative
Circle Life: 2000 Times Warranty: 1 Year
PVC Color: Blue Or OEM Label: Buyer's Logo And OEM
Shape: Cylindrical Pcm: With Or Without Decide By Buyer
High Light:

lifepo4 battery pack

,

lithium iron phosphate battery pack

Product Description

LiFePO4 Battery IFR32700 6AH 3.2V With Tag for Electronic Fence

Specification for LiFePO4 Battery IFR32700 6AH 3.2V With Tag for Electronic Fence



Item Specification
Battery Type LiFePO4 battery
Nominal Voltage 3.2V
Nominal Capacity 6AH
Battery Type Cylindrical with tag
Discharge Cut-off 2.5V
Charge Cut-off 3.65V
Charge Current 0.2C
Continuous Discharge 0.5C
Peak Discharge 6A
Impendance: ≤30mΩ
Charge Temperature 0℃ - 45℃
Discharge Temperature -20℃ - 60℃
Charge Method CC/CV
Life Cycle 2000-3000
Application Solar/UPS
Dimension D32mm H70mm
Weight 140g
Warranty 12 months
Package 100pcs/box





Feature for LiFePO4 Battery IFR32700 6AH 3.2V With Tag for Electronic Fence



  1. Specially design : The 2-pin terminal is on the (-) side  and The 1-pin terminal  on the (+) side  of the battery.
  2. support various original connector , customized connector is workable
  3. Single cell passed UL certfication and Reach
  4. more accurate size
  5. We can support low moq for the customized order



Battery Pack Engineer Drawing



NO Items Units: mm
1 diameter 32.4mm (Max)
2 Height 71.0 mm (Max)
3 Height 72.0 mm (Max)
4 Width / W  6.0 mm( Max)
5 1-pin for the (+) terminal  20*4.0 mm
6 2-pins for the (-) terminal  24*11 mm
7 W 5.5+/-0.5mm





Cylindrical LiFePO4 Battery IFR32700 6AH 3.2V With Tag For  Electronic Fence 0

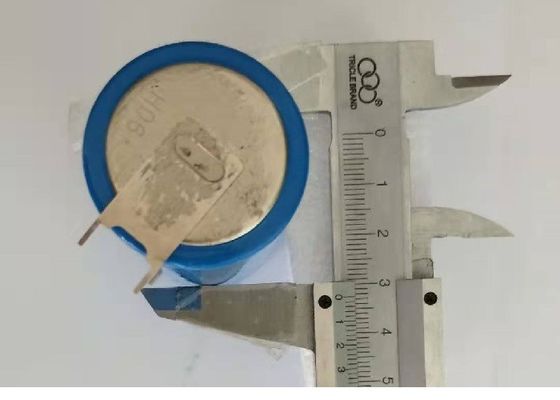

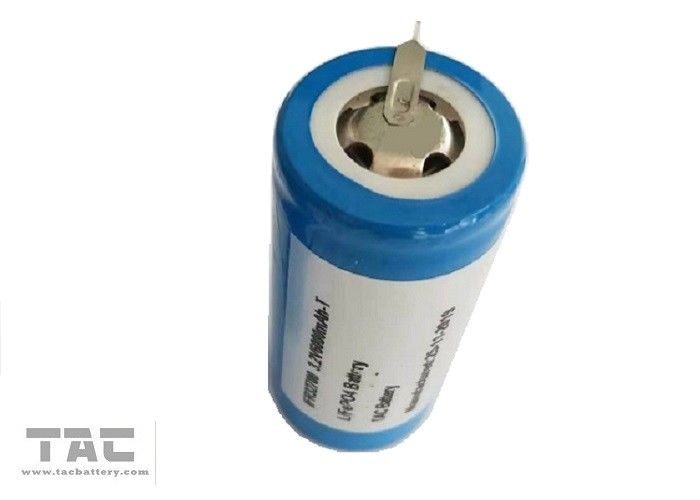

Battery Picture



Cylindrical LiFePO4 Battery IFR32700 6AH 3.2V With Tag For  Electronic Fence 1



Packing Detail

Cylindrical LiFePO4 Battery IFR32700 6AH 3.2V With Tag For  Electronic Fence 2



About Tac battery

Cylindrical LiFePO4 Battery IFR32700 6AH 3.2V With Tag For  Electronic Fence 3
