12V LiFePO4 Battery Pack 26650 6.6Ah With Electronic Display for UPS

12V LiFePO4 Battery Pack 26650 6.6Ah With Electronic Display for UPS

    • 12V LiFePO4 Battery Pack 26650  6.6Ah With Electronic Display for UPS
    • 12V LiFePO4 Battery Pack 26650  6.6Ah With Electronic Display for UPS
    • 12V LiFePO4 Battery Pack 26650  6.6Ah With Electronic Display for UPS
  • 12V LiFePO4 Battery Pack 26650  6.6Ah With Electronic Display for UPS

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UL,ROHS
    Model Number: PLIP0353

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Price Negotiable
    Packaging Details: 5pcs/carton
    Delivery Time: 14Days
    Payment Terms: TT, LC, Paypal, etc
    Supply Ability: 1000Piece/days
    Contact Now
    Detailed Product Description
    Material: LiFePO4 Battery Voltage: 11.1v
    Capacity: 6.6ah Circle Life: 1200- 2000times
    Pvc: Plastic Blue Pvc Connector: Customized

    12V LiFePO4 Battery Pack 26650 6.6Ah With Electronic Display for UPS





    Quick Detail



    1. Nominal Voltage is 11.1V and the rated capacity is 6.6Ah
    2. Add the PCM, wire and electronic display if you like.
    3. Have a long cycle life about 2000 times.
    4. The connector assembled with buyer requrie



    Specification for 12V LiFePO4 Battery Pack 26650 6.6Ah With Electronic Display for UPS





    No.

    Item

    General Parameter

    Remark

    1

    Rated Capacity

    Typical

    6600mAh

    Standard discharge(0.2C5A) after Standard charge

    Minimum

    6500mAh

    2

    Nominal Voltage

    11.1V

    Mean Operation Voltage

    3

    Voltage at end of

    Discharge

    9.0V

    Discharge Cut-off Voltage

    4

    Charging Voltage

    12.6±0.03V



    5

    Internal Impedance

    120≤ mΩ

    Internal resistance measured at AC 1KHZ after 50% charge

    The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

    6

    Standard charge

    Constant Current 0.2C5A

    Constant Voltage 12.6V

    0.01 C5A cut-off



    7

    Standard discharge

    Constant current 0.2C5A

    end voltage 9.0V



    8

    Fast charge

    Constant Current 1C5A

    Constant Voltage 12.6V

    0.01 C5A cut-off



    9

    Fast discharge

    Constant current 4A

    end voltage 9.0V



    10

    Maximum Continuous Charge Current

    1 C5A



    11

    Maximum Continuous Discharge Current

    6.6A

    Pulse  19.8A

    12

    Operation Temperature Range



    Charge: 0~45℃

    60±25%R.H.

    Bare Cell





    Discharge: -20~60℃



    13

    Storage Temperature Range

    Less than 1 year: -20~25℃

    60±25%R.H.

    at the shipment state





    less than 3 months: -20~40℃







    Less than 7 day : -20~65℃



    14

    Pack  Dimension

    High:Max71.0mm

    Initial  Dimension





    Width:Max60.0mm







    Thickness: Max60.0mm





    Pack Manner

    The battery pack with double level sponge bag, 1 or 3 sets for one inner box

    5 -10 box for one cargo base on ship out by sea

    5 box for one cargo base on samples were shipped out by air

    12V LiFePO4 Battery Pack 26650  6.6Ah With Electronic Display for UPS

    Pictures:

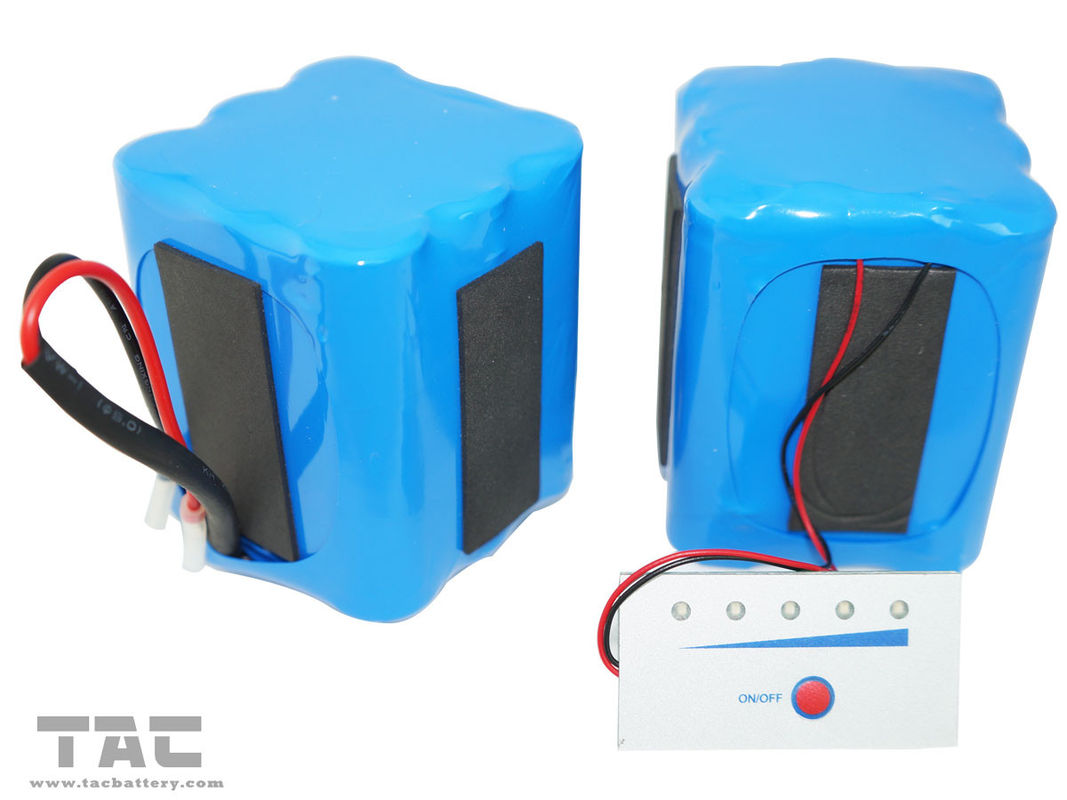

    11.1V 6.6Ah LiFePO4 Batteries Pack with Electronic Display for UPS


    11.1V 6.6Ah LiFePO4 Batteries Pack with Electronic Display for UPS



    11.1V 6.6Ah LiFePO4 Batteries Pack with Electronic Display for UPS






    11.1V 6.6Ah LiFePO4 Batteries Pack with Electronic Display for UPS

    The charger (12.6V 2.5A) for 11.1V 6.6Ah battery pack


    12.6V charger



    12.6V charger






    Tag:  Solar Battery. Electric battery pack. LiFePO4 battery pack
