Long Cycle Life 15AH 12V LiFePO4 Battery Pack 32140 4S1P For Explosion Proof Product
Product Details:
| Place of Origin: | GUANGZHOU |
| Brand Name: | Sunland |
| Certification: | MSDS REACH ROHS UN38.3 |
| Model Number: | IFM12-150E2-32140 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | USD41 |
| Packaging Details: | 10PCS/CTN |
| Delivery Time: | 14 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS per month |
|
Detail Information |
|||
| Type: | LiFePO4 Battery | Voltage: | 12.8V |
|---|---|---|---|
| Capacity: | 15AH | Dimension: | 137mm*42mm*146mm |
| Weight: | 1.5KG | BMS: | 15A |
| High Light: | 15AH 12V LiFePO4 Battery Pack,32140 LiFePO4 Battery Pack |
||
Product Description
Long Cycle Life 12V 15AH Battery Pack 32140 4S1P LiFePO4 Battery For Explosion-Proof Product
Feature:
1. Only series, not parallel,base on IEC 60079-0 standard.
2. Good high temperature performance.
3. Long cycle life
Long Cycle Life 12V 15AH Battery Pack 32140 4S1P LiFePO4 Battery For Explosion-Proof Product
Parameter
|
No. |
Items |
Specifications |
Remark |
|
1 |
Capacity for assembled cell discharging by 0.2C |
≥14500Ah |
Standard discharging method |
|
2 |
Battery Voltage |
12.8V |
Base on MOQ 10K Within 10 days from Factory |
|
3 |
Standard charge condition |
Charge with 3A constant current and 14.6V constant voltage, charge to 14.6V,continue charging till current decline to ≤0.05C |
Charge voltage: 14.6V±0.03V Charge current:3A |
| 4 |
Max continuous charge current |
7.5A |
|
|
5 |
Standard discharging method |
3A constant current discharge to 9.2V, |
|
| 6 |
Max continuous discharge current |
||
|
Internal Impedance |
Assemblage Impedance |
Measure the Red and black wire of the connector after assembling. |
|
| 8 |
Charge upper limit temperature |
0-45℃ |
Charging at low temperature, capacity and cycle life will reduce. |
| 9 |
Discharge upper limit temperature |
-20-60℃ | |
| 10 | Connector | / | |
| 11 | Wire | 16AWG | |
| 12 | Weight | 1.5KG |
Long Cycle Life 12V 15AH Battery Pack 32140 4S1P LiFePO4 Battery For Explosion-Proof Product

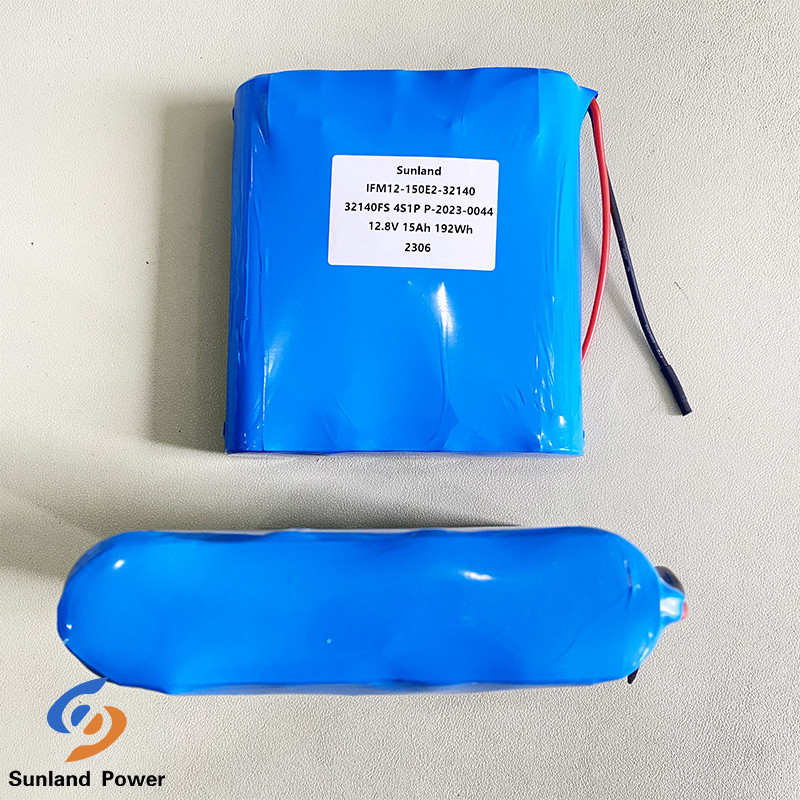

Picture:
| NO | Part name | Quantity | Unit | Remark |
| 1 | Cell | 4 | PCS | 4S1P 32140FS CBAK |
| 2 | Wire | 2 | PCS | 16AWG |
| 3 | PCM | 1 | PCS | TDT-8181A-4S |
| 4 | Connector | 1 | PCS | / |
|
5 |
PVC |
1 |
Ea |
Blue |
Long Cycle Life 12V 15AH Battery Pack 32140 4S1P LiFePO4 Battery For Explosion-Proof Product
Period of Warranty
The period of warranty is one year from the date of shipment. Sunland guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Storage of battery
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity. We recommend that batteries be charged about once per half a year to prevent over discharge.
