1.5V AAA Rechargeable Lithium Ion Cylindrical Battery With Type C Connector
Product Details:
| Place of Origin: | GUANGZHOU |
| Brand Name: | Sunland |
| Certification: | ROHS,REACH,UL,UN38.3 |
| Model Number: | AAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$1 |
| Packaging Details: | 50pcs/box |
| Delivery Time: | one week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000PCS/week |
|
Detail Information |
|||
| Model: | AAA 10440 | Voltage: | 1.5V |
|---|---|---|---|
| Type: | Lithium Ion Battery | Feature: | Rechargeable |
| Connector: | UType C | Size: | D:10mm*H 44mm |
| High Light: | Rechargeable Lithium Ion Cylindrical Battery,1.5V Lithium Ion Cylindrical Battery |
||
Product Description
1.5V AAA Rechargeable Lithium Ion Cylindrical Battery With Type C Connector
Feature:
1. Replacement 1.5V Alkaline Battery.
2. Portable USB Rechargeable battery,memoryless,no need to discharge before charging.
3. Long cycle life 1000 cycles.
4. With Type C connector
5. Application:remote control unit,toy,mouse
1.5V AAA Rechargeable Lithium Ion Cylindrical Battery With Type C Connector

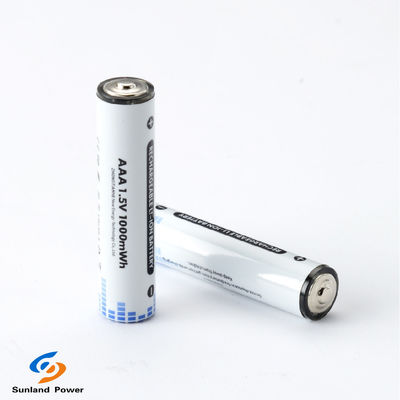

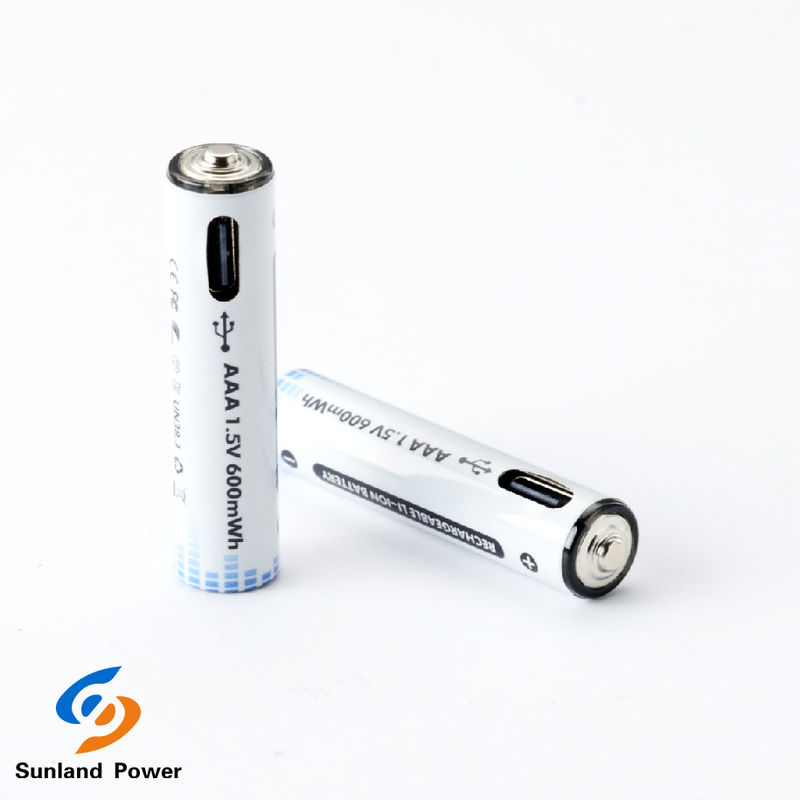

Picture:
1.5V AAA Rechargeable Lithium Ion Cylindrical Battery With Type C Connector
Parameter:
| Item | Description | Unit | Parameter | Remark |
| 1 |
Open Voltage |
V | 1.5V(±0.04) |
Without Load |
| 2 |
Working currnet |
V | (1.5±0.05) | |
| 3 |
Cell |
V/mAh | 3.7V/270mAh |
Standard charge,then 1C discharge |
| 4 |
Power |
mWh | 1000 | (AA1.5V/1000mwh) |
| 5 |
USB charging voltage |
V | DC5.0 |
Input DC/5V±0.2 |
| 6 |
USB charging current |
mA | 450 |
Input DC5V/>0.5A |
| 7 |
Standard charging time |
Min | 60 |
(IEC Standard) Indicator status: The G-LED indicator blinks during charging, and the G-LED indicator keeps on when fully charged |
| 8 | Fast charging time | Min | 30 | 5V 2A fast charge:50min |
| 9 | Discharg current | mA |
Standard:200 (Max:2000) |
|
| 10 | Discharging time | Min | Standard:160 |
Standard discharging time:160min (Discharge current:200mA) |
| 11 | Discharge cut-off voltage | V | 0.9V | |
| 12 | Cycle life | Cycle | 1000+ |
1C charge and discharge. Restore the initial capacity ≥70%(refers to the standard charge and discharge of the cell) |
| 13 | Working temperature range | ℃ | -20~60 | |
| 14 | Storage temperature range | ℃ | -10~25 | -10~60℃≤30 days,-10~45℃≤90 days,-10~20℃≤360 dasy, recovery capacity must be at least 70% of the original capacity. |
| 15 | Storage ambient humidity | % | ≤85 | |
| 16 | Slef discharge/year | % | 10~15 | |
| 17 | Charging temperature rise | K | 16K | |
| 18 | Static current | uA | 〈8 | |
| 19 | LED Status | -- | Green G-LED | Blinking at 1Hz during charging, full of steady on, discharge off, discharge short circuit 10Hz high speed blinking! |
1) Do not use or place the battery at high temperatures (in hot sunlight or in a hot car), as this may cause the battery to overheat, or fail to function and shorten its life.
2) Do not use it in places with strong static electricity and magnetic field; otherwise, the battery safety protection device may be damaged, resulting in unsafe risks.
3) If the battery leaks and the electrolyte enters your eyes, do not rub it. Rinse your eyes with clean water and seek medical treatment immediately. Otherwise, your eyes may be injured.
4) If the battery gives off a bad smell, heats up, changes color, becomes deformed, or shows any abnormality during use, storage, or charging, immediately remove the battery from the device or charger and stop using it.
5) If the electrode is dirty, wipe it with a dry cloth before use, otherwise it may cause poor contact or function failure; The discarded battery should be wrapped in insulating paper to prevent short circuit and high temperature and fire!
