Wide Temperature 3.6V ER14250 1200mAh LiSOCl2 Battery Non Rechargeable For Rain Detector
Product Details:
Place of Origin: | GUANGZHOU |
Brand Name: | TAC |
Certification: | REACH MSDS |
Model Number: | PERC0643 |
Payment & Shipping Terms:
Minimum Order Quantity: | 5000pcs |
---|---|
Price: | US$0.8 |
Packaging Details: | 1000PCS/CARTON |
Delivery Time: | 7-25 days after order confirm |
Payment Terms: | T/T, Paypal , Western Union |
Supply Ability: | 100,000PCS/Day |
Detail Information |
|||
Material: | LiSOCl2 Battery | Capacity: | 1200mah |
---|---|---|---|
Voltage: | 3.6v | Rechargeable: | Non Rechargeable |
Length Of Axis: | 15mm | Storage Life: | 10 Years |
Working Temperature: | -55~ +85℃ | Size: | φ14.5mm×H25.5mm |
High Light: | 1200mAh LiSOCl2 Battery,ER14250 LiSOCl2 Battery,LiSOCl2 Battery Non Rechargeable |
Product Description
Wide Temperature Non Rechargeable 3.6V ER14250 1200mAh LiSOCl2 Battery for Rain Detector.
Features:
LiSOCL2 battery has high cell voltage and is the battery with the highest specific energy among lithium batteries. The discharge is stable and the discharge curve is flat. The work platform remains almost unchanged within 90% of the capacity range. The battery can work normally in the range of -55℃~+85℃. The capacity at -55℃ is about 50% of the normal temperature capacity. It shows extremely excellent high and low temperature performance, with an annual self-discharge rate of ≤1% and a storage life of up to With a lifespan of more than 10 years, it is a very cost-effective battery.
Wide Temperature Non Rechargeable 3.6V ER14250 1200mAh LiSOCl2 Battery for Rain Detecto.
Specification:
No. | Item | General Parameter | Remark |
1 | Rated Capacity | 1200mAh |
Discharge to 2.0V 0.5mA (0.5mA2.0V) |
2 | Nominal Voltage | 3.6V | Mean Operation Voltage |
3 |
Voltage at end of Discharge |
2.0V | Discharge Cut-off Voltage |
4 | Max dimension |
φ14.5mm×H25.5mm |
|
5 | Max weight | 10g | |
4 | Standard discharge | Discharge to 2.0V 0.5mA | |
5 | Max constant discharge current | 35mA | |
6 | Max. pulse current | 100mA | |
7 | Ambient temperature range | -55~ +85℃ | |
8 | Storage life | ≥10 year | Yearly self-discharge ≤ 1% |
9 | The length/Diameter of axle wire | 15mm/0.8mm | |
10 | Axle needle | ⌀0.8mm, L15mm | See blew picture |
Wide Temperature Non Rechargeable 3.6V ER14250 1200mAh LiSOCl2 Battery for Rain Detecto.

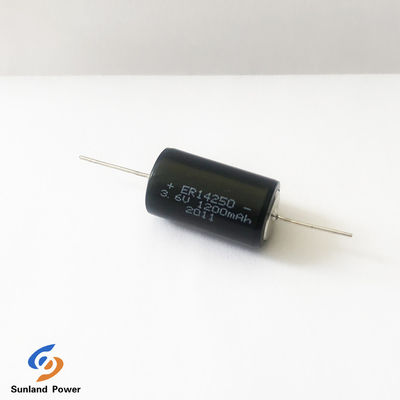

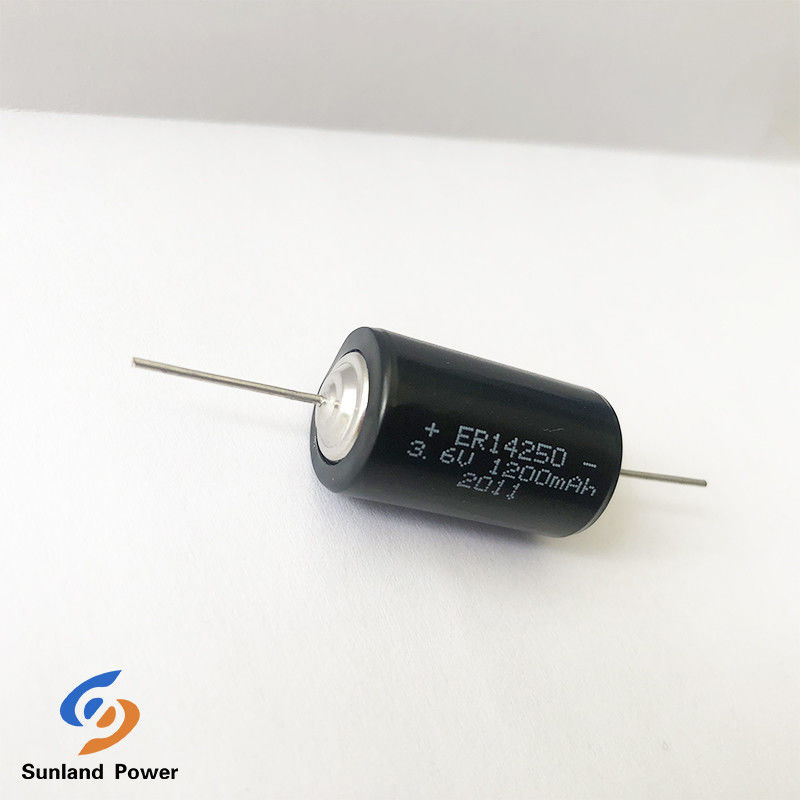

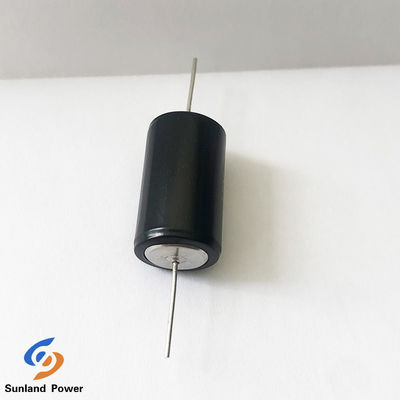

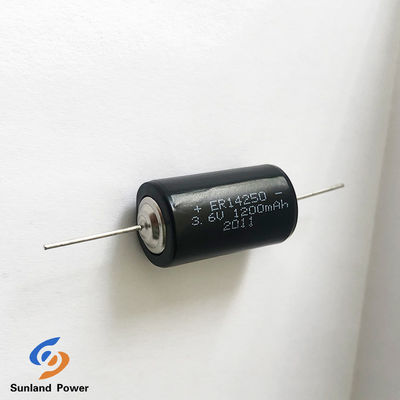

Pictures:
Wide Temperature Non Rechargeable 3.6V ER14250 1200mAh LiSOCl2 Battery for Rain Detector.
Application:
1. Civil water meter, Gas meter, Kilowatt-hour meter, Smoke alarm, Bu-regular proof alarm, Intelligent instruments,
Life-guard device, Signal lamp, Professional radio electric tools.
2. Military electronic devices, Communication equipment, Portable transmitter-receiver, Night-vision instruments,
Collimator, GPS system for navigation, Underwater weapon, Sonobuoy missile and more.
