3.0V Non-rechargeable Lithium Manganese Dioxide Battery CR17505 Li-MnO2 Battery For Thermal Sight
Product Details:
Place of Origin: | GUANGZHOU |
Brand Name: | Sunland |
Certification: | MSDS,UN38.3,ROHS,REACH |
Model Number: | CR17505 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1000PCS |
---|---|
Price: | US$0.9/PCS |
Packaging Details: | 800PCS/CTN |
Delivery Time: | 14 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50000PCS/week |
Detail Information |
|||
Battery Type: | Lithium Manganese Dioxide Battery | Voltage: | 3.0V |
---|---|---|---|
Capacity: | 3000mAh | Rechargeable: | NO |
Dimension: | D:17mm*H:50.5mm | Weight: | 30g |
Working Temerature: | -40℃ To 70℃ | Max.pulse Current: | 3000mA |
Product Description
3.0V Non-rechargeable Lithium Manganese Dioxide Battery CR17505 Li-MnO2 Battery For Thermal Sight.
Parameter:
No. |
Item |
Measuring Procedure |
Criteria |
1 |
Open-Circuit Voltage |
The open-circuit voltage shall be measured within 24 hours after standard charge. |
≥3.0 V |
2 |
Rated Capacity |
The capacity means the discharge capacity of the cell, which is measured by continuously discharging with a resistive 100 ohm load to 2.0V. |
≥3000 mAh |
3 |
External Short Circuit |
Positive and negative of undischarged battery are connected by a Cu wire. This short-circuit condition is continued for 1 day at room temperature (20±2℃). |
No leakage; No explosion. |
4 |
Over Discharge |
Discharged to 1.0V at 500mA; |
No explosion; No fire |
3.0V Non-rechargeable Lithium Manganese Dioxide Battery CR17505 Li-MnO2 Battery For Thermal Sight.

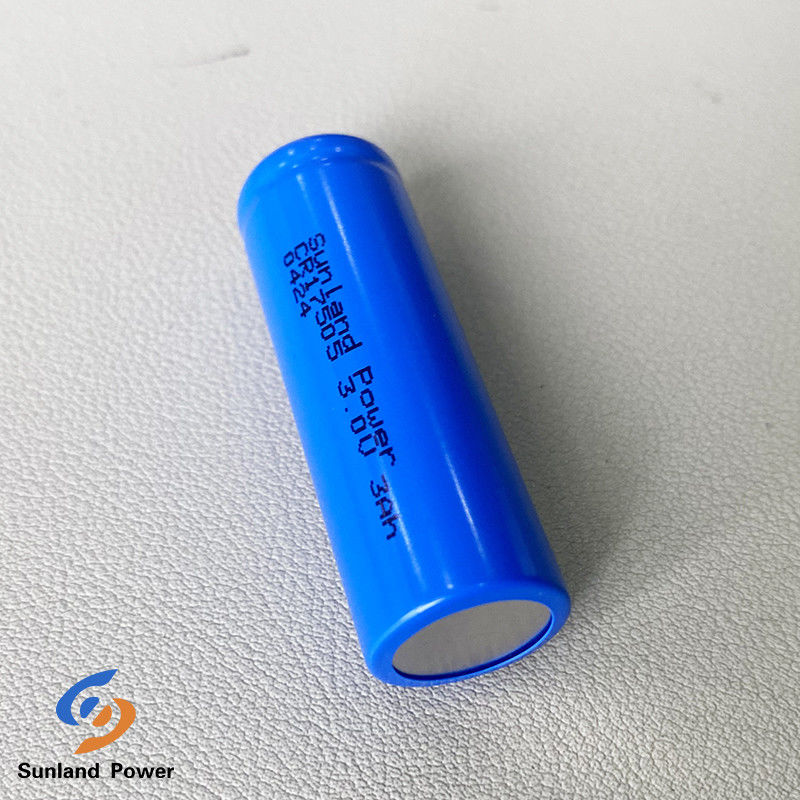

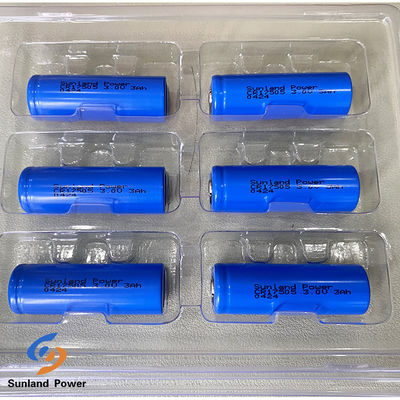

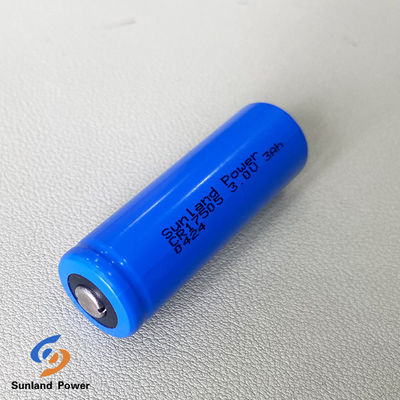

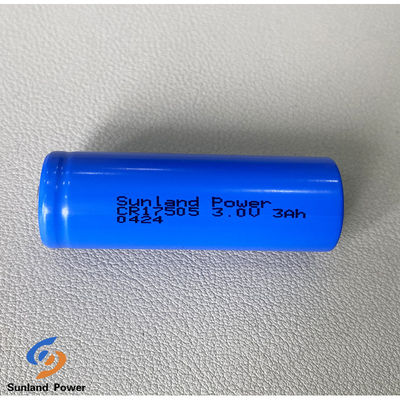

Picture:
3.0V Non-rechargeable Lithium Manganese Dioxide Battery CR17505 Li-MnO2 Battery For Thermal Sight.
