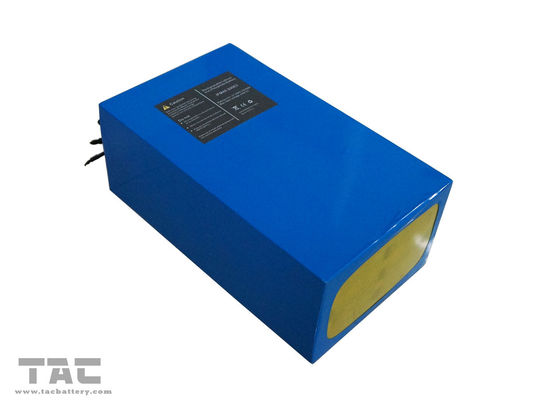

24V LiFePO4 Battery Pack 25AH  5 years Long Life For Electric Bike

24V LiFePO4 Battery Pack 25AH 5 years Long Life For Electric Bike

Product Details:

Place of Origin: shenzhen
Brand Name: TAC
Certification: UL,ROHS
Model Number: PIFP0242

Payment & Shipping Terms:

Minimum Order Quantity: 20 SET
Price: usd 50
Packaging Details: 1pcs/carton
Delivery Time: 14Days after order confirm
Payment Terms: TT, LC, Paypal, etc
Supply Ability: 100Piece/days
Get Best Price Contact Now

Detail Information

Charge Time :: Approx 7.0h Application:: Electric Bike, Solar Street Light
Battery Tpye:: Lifepo4 Voltage: 24V
Capacity: 25ah Circle Life: 2000 Times
Warranty: 12 Months Pvc: Blue Or Housing
Highlight:

electric bicycle battery

,

e bike battery pack

Product Description

24V LiFePO4 Battery Pack 25AH 5 years Long Life For Electric Bike



Key Data:

  1. Rated Capacity: 26.4Ah; Nominal Voltage: 25.28V
  2. Application for Solar Product
  3. Have a long cycle life about 2000 times.
  4. The battery pack with BMS



Specification for 24V LiFePO4 Battery Pack 25AH 5 years Long Life For Electric Bike



No.

Item

Rated Performance

Remark

1

Rated Capacity

Typical

26.4AH

Standard discharge(0.2C C5A) after Standard charge

Minimum

25AH

2

Nominal Voltage

25.28V

Mean Operation Voltage During Standard Discharge After  Standard  Charge

3

Voltage at end of

Discharge

20V

Discharge Cut-off Voltage

4

Charging Voltage

29.2V



7

Cell and assembly method

IFR26650EC-3.3AH

IFR26650EC-3.3Ah cells in a 8S8P configuration.

6

Standard charge

Constant Current 0.2C5A

Constant Voltage 29.2V

0.05 C5A cut-off

Charge time : Approx 7.0h

7

Standard discharge

Constant current 0.2 C5A

end voltage 20.0V



8

Maximum Continuous Charge Current

5A



9

Maximum Continuous Discharge Current

15A



10

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Bare Cell

Discharge: -20~60℃

11

Storage Temperature

Range

Less than 1 year: 0~25℃

60±25%R.H.

at the shipment state

less than 3 months: -5~35℃

12

Weight

Approx 5.5KGg

PVC pack

13

Cell  Dimension

High:110mm



Width: 75mm

Length: 420mm



Structure:



24V 25AH ELECTRIC BIKE BATTERY PACK

Application:

High Capacity Electric Bike Battery Pack 24V 25Ah for Solar Street Light

LIFEPO4 BATTERY PACK



Q & A:

Q1.: Does Polinovel support door to door shipping? drop ship ?

A1.: Yes. If battery unit weight is below 30kg, we delivery it via Air Express. If battery unit weight is above 30kg, we delivery it via sea . If you want to us to help you to make custom clearance, we would like to do that. We support drop ship.



Q2.: If we hope do series and parallel connection by ourselves (12 volt battery), is it workable?

A2.: Yes. But, we should pay attention to below tips:

a.: Connect the same spec for  battery cell. Please don't mix them.

b.: consistancy require for the single cell The voltage difference of the connection batteries should be less than 50mV

c.: Support 4 series OR 4 parallel connection. it is dangrous series and parallel connection at the same time.

d.  It may cause battery damaged or shorten the battery life if the battery pack without BMS



Q4.: I do not so clear about your question for lithium battery key data I just want to know the price !!

A4.: Sorry for annoying you. But the discharge current, voltage etc. Information is very important for us to produce the correct battery for you. If we produce the battery which can not achieve the real application discharge current, size etc. That will put both of us in a very embarrassing and lose-lose condition. We also have price list, but it is only for your reference. We should confirm the discharge current etc. Information before we produce your orders.



Q5.: How about the BMS? Can we use it for vehicle?

A5.: Yes, our battery pack include BMS with normal performance , you can use it for low speed vehicles.And make sure the discharge current can meet the application request (please refer to Q4) . If you want to use standard vehicle, please inform us, we need to adopt more complex design BMS and different technology solution.



Q6.: What is your warranty?

A6.: Our standard warranty is 1 years. Our battery lifespan can be used for at least 5- 8 years for normal 1 cycle per day. We have a complete warranty policy documents, please feel free to contact us to get it.
