Alarm System Lithium Battery LI-SOCL2 of ER34615 19Ah 3.6v
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC |
| Certification: | REACH MSDS |
| Model Number: | ER34615 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | USD20 |
| Packaging Details: | 20 pcs each pallet / 1 pack for one box |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | T/T, LC, Paypal etc. |
| Supply Ability: | 100,000PCS/Day |
|
Detail Information |
|||
| Material: | Lithium LISOCL2 | Primary: | Non- Rechargeable |
|---|---|---|---|
| Voltage: | 3.6V | Capacity: | 19AH |
| Life: | 10 Years | Size: | D: 34mm H: 61.5mm |
| Temperature: | -55~ +85 Degree | Weight: | 26.5kgs |
| Highlight: | lithium battery packs,rechargeable li-on battery |
||
Product Description
Alarm System Lithium Battery LI-SOCL2 of ER34615 19Ah 3.6v
Performance for Alarm System Lithium Battery LI-SOCL2 of ER34615 19Ah 3.6v
1. High energy density: 420WH/KG and 800WH/dm3
2. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V the end voltage is 2.0V or 2.5V.
3. Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged, the capacity output is still more than 90%.
4. Wide temperature range: the widest temperature range from -60℃ to 85℃
5. Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than 10 years under room temperature.
Application:
1 Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.
2 Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
3 Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
4 Intelligent water meter, Ammeter, Gas Meter
Packing Method:
30PCS/layer, 240Pcs/Carton, weight:26.5KG Size:44*27*33cm
Specification:
|
No |
Item |
Data |
|
1 |
voltage: |
3.6V |
|
2 |
capacity: |
19000mAh(3mA / 2.0V) |
|
3 |
Discharge end-voltage: |
2.0V |
|
4 |
Operating voltage : |
3.5V(330Ω, in 5s) |
|
5 |
Max constant discharge current: |
200mA |
|
6 |
Max. pulse current: |
400mA |
|
7 |
Ambient temperature range: |
-55~ +85℃ |
|
8 |
Storage life: |
≥10 year, Yearly self-discharge ≤ 1% |
More Detail data
| Item | Measuring Procedure | Standard |
| 1.Appearance | Visual check | Clean, unscratched and clearly labeled |
| 2.Dimenaions | Measured by calipers with precision of 0.02mm | Maxφ34.2×61.5mm |
| 3.Weight | Weighed by balance with precision of 0.1g | Max 106g |
| 4.Open-circuit voltage | Measure by volt-meter with precision of 0.01V | ≥3.65V |
| 5.Operating voltage | Measure by volt-meter with precision of 0.01V, connecting an impedance of 200Ωin series, Reaching the target voltage in 5 seconds. | ≥3.45V |
| 6.Nominal discharge | 200Ω,20±2℃, Constant discharge to 2.0V. | ≥13.0Ah |
| 7.Rapid discharge | 30Ω,20±2℃, Constant discharge to 2.0V. | ≥10.0Ah |
| 8. Discharge at high temperature | Put battery in constant ambient temperature of 55±2℃ for 16 hours, discharge at 200Ω to 2.0V/cell. | ≥13.5Ah |
| 9.Discharge at low temperature | Put battery in constant ambient temperature of -40±2℃ for 16 hours, discharge at 680Ω to 2.0V/cell | ≥6.5Ah |
| 10.Charge | Prohibited | Prohibited |
| 11.Over-discharge | Prohibited | Prohibited |
| 12.Self discharge | Store the batteries at constant temperature of 20±5℃, Measure the nominal capacity yearly for 10 years. | ≤1% |

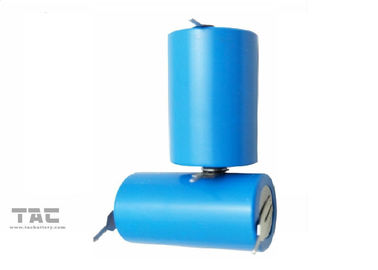

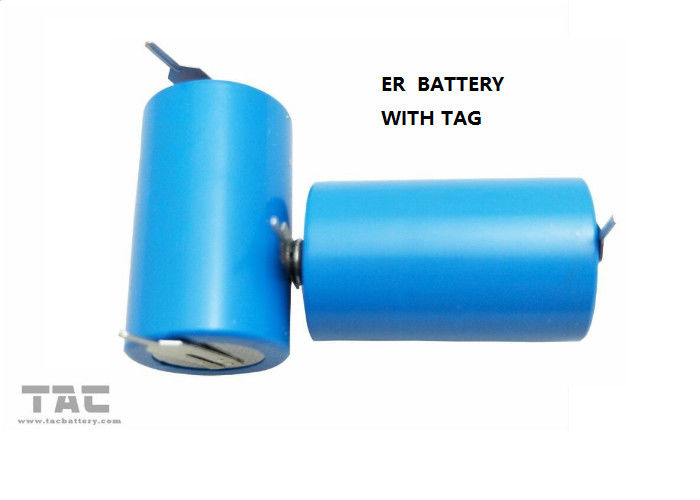

Pictures:
Battery pack:

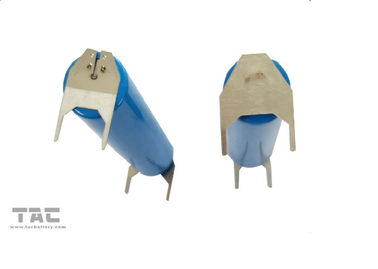

We can add the wire and connector on the battery if you like
