Power Bank 3-5C 18650 Lithium Ion Cylindrical Battery 3.7v 2200mAh
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM & ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | Li-Ion 18650 3.7V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 pcs for single cell , 50pack for battery packs |
|---|---|
| Price: | usd1.5 each pcs |
| Packaging Details: | meet UN38.3 Certification |
| Delivery Time: | 7-10 days after order confirm for stock model |
| Payment Terms: | 100% prepaid before shipping out |
| Supply Ability: | 100000PCS EACH WEEK |
|
Detail Information |
|||
| Material: | Lithium Ion Battery | Voltage: | 3.7-4.2V |
|---|---|---|---|
| Capacity: | 2200mah | Size: | D: 18MM H: 65MM |
| PVC: | Blue | Circle Life: | 500 Times |
| Maximum Charge Current: | 1C | Maximum Discharge Current: | 3-5C |
| Pack: | Acceptable | Warranty: | 12 Months |
| Highlight: | lithium iron phosphate battery pack,lithium ion phosphate batteries |
||
Product Description

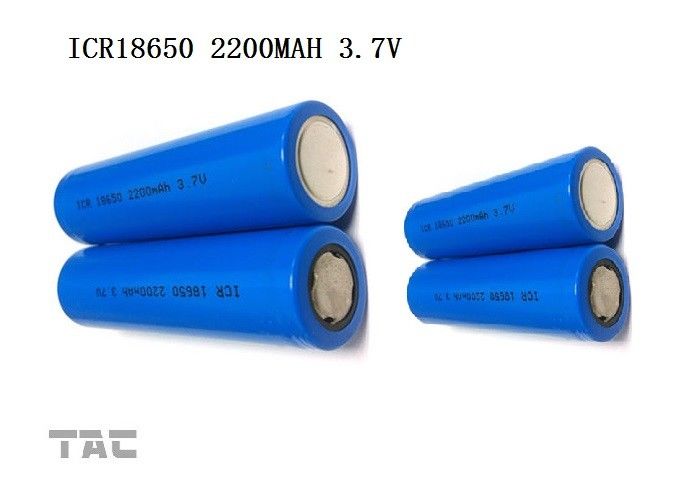

Power Bank 3-5C 18650 Lithium Ion Cylindrical Batteries 3.7v 2200mAh
Specification
| No. | Items | Specifications | |
| 1 |
Nominal Capacity
|
2200mAh | |
| 2 |
Minimum Capacity
|
2156mAh | |
| 3 | voltage | 3.7V | |
| 4 |
Delivery voltage
|
3.70~3.9V | |
| 5 |
Charge Voltage
|
4.2V±0.03V | |
| 6 |
Standard charging method
|
0.5C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C | |
| 7 |
Charge current
|
0.5C | 1100mA |
| 1.0C | 2200mA | ||
| 8 |
Standard discharging method |
0.5C constant current discharge to3.0V, | |
| 9 |
Cell Internal Impedance
|
≤25mΩ | |
| 10 |
Maximum charge current
|
1C | 2200mA |
| 11 |
Maximum discharge current
|
5C | 11000mA |
| 12 |
Operation Temperature and relative humidity Range
|
Charge |
0~45℃ 60±25%R.H. |
| Discharge |
-20~60℃ 60±25%R.H. |
||
| 13 |
Storage temperature for a long time
|
-20~25℃ 60±25%R.H. |
|
Application:
- power bank
- Audio visual equipment
- Cellular phones
- Office automation
- Notebook PC's
- PDA's and handy terminals
- Communication devices
- Electronic instruments
Cell Electrical characteristics
1 Rated Capacity at 0.5C(Min.)0.5C
After standard charge, the capacity shall be measured on 0.5C discharge till the voltage discharge to3.0V,
the capacity can not less than 2150mah
2 Circle life
Charging and discharging battery as blew conditions
0.5C standard charge to 4.2V end-off
0.5Cstandard discharge to 3.0V cut-off
Continuous charge and discharge for 300 cycles ,the capacity will be measure after the300th cycle
3 Capacity retention
The battery to be charge in accordance with standard charge condition at 20~25℃,then storage the battery at an ambient temperature 20~25℃ for 28 days.
Measure the capacity after 30 days with 0.2C at 20~25℃ as retention capacity
the capacity can not less than 80%
4 Temperature Dependence of discharge capacity
Cells shall be charged per 3.6 and discharged @0.2 C5A to 3.0 volts. Except to be discharged at temperatures per Table 3. Cells shall be stored for 3 hours at the test temperature prior to discharging and then shall be discharged at the test temperature. The capacity of a cell at each temperature shall be compared to the capacity achieved at 23 ºC and the percentage shall be calculated. .
|
Discharge Temperature
|
-20℃ | -10℃ | 0℃ | 23℃ | 60℃ |
|
Discharge Capacity (0.2 C5A)
|
40% | 50% | 80% | 100% | 95% |

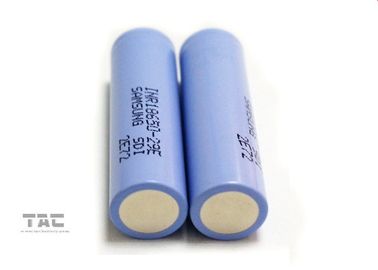

Product Photos
Packing Method
The pack method follow Samsung standard packing with specially paper tray
50 to 100 pcs for each carton
The Similar Performance Single Cell

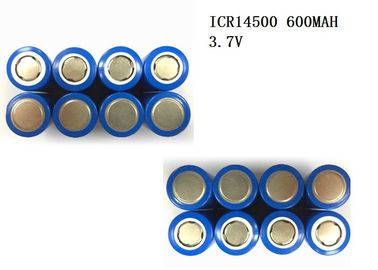

ICR14500 700MAH 3.7V
ICR26650 2300MAH 3.7V
ICR32650 5000MAH 3.7V
ICR10400 700MAH 3.7V
ICR17335 900MAH 3.7V
Certification for TAC Battery
Q1: Are you a Factory or trading company?
A: We are a factory, welcome OEM/ODM Service.
Q2: What Certificates do you have?
A: Our products have been tested by UL UN38.3 CE, FCC, RoHS Standards.
Q3: Can I try a trial order?
A: Yes, we welcome any trial order to test and check product quality. Mixed products trial order are acceptable. If you have any idea about the product, we also can be according to your demands to give you the helpful suggestion.
Q4. What OEM service you can support?
1. Lamp head LOGO print: Laser engraved or Silk print;
2. Custom package: Color box or Blister package;
3. Product mode/color/design etc. customization.
Q5: What’s your lead time?
A: Available sample is 3-5days, mass production time is 5-30 days after full payment or deposit be confirmed.
Q6: Do you offer guarantee for the products?
A: 1 year warranty.
Tag: Power Bank 3-5C 18650 Lithium Ion Cylindrical Batteries 3.7v 2200mAh
