Nimh Rechargeable Batteries 9V 230mAh Batteries With Charger For Microphone
Product Details:
| Place of Origin: | Guangzhou |
| Brand Name: | TAC |
| Certification: | MSDS REACH |
| Model Number: | 9V 230mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 PCS |
|---|---|
| Price: | usd 2.0+ usd1.6 |
| Packaging Details: | 50pcs per box, 20boxes per carton |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, LC, Paypal etc. |
| Supply Ability: | 500000pcs per week |
|
Detail Information |
|||
| Material: | NIMH | Voltage: | 9V |
|---|---|---|---|
| Capacity: | 230-250mah | Circle Life: | 500 Times |
| Warranty: | 12 Months | Size: | 17.5*26.5*48.5mm |
| Pvc: | Green | Rechargeable: | Yes |
| Highlight: | nickel metal hydride nimh batteries,nickel metal hydride nimh batteries |
||
Product Description
Ni-MH Batteries 9V 230mAh Batteries With Charger For Microphone
Specification For Ni-MH Batteries 9V 230mAh Batteries With Charger For Microphone
|
Test |
Unit |
Specification |
Conditions |
Remarks |
|
|
Capacity |
mAh |
Typical |
230 |
Standard Charge/Discharge |
Up to 3 cycles are allowed |
|
Minimum |
220 |
||||
|
Open Circuit Voltage (OCV) |
V |
≥1.25 |
Within 1hr after standard Charge |
Up to 3 cycles are allowed |
|
|
Internal Impedance(Ri) |
mΩ |
≤80 |
Upon fully charge (1kHz) |
Unit cell |
|
|
High Rate Discharge (1C) |
min |
≥48 |
Standard Charge before discharg |
End Voltage is 1.0V |
|
|
Overcharge |
N/A |
No leakage nor explosion |
80mA(0.1C) charge 1 year no leakage nor explosion |
|
|
|
Charge Retention |
mAh |
≥65% |
Standard Charge, Storage: 28 days, Standard Discharge |
|
|
|
IEC Cycles Test |
Cycle |
>500 |
IEC 61951-2(2003) |
(see Note 3) |
|
Packing & Delivery
- Normally the battery Cell pack with Green PVC jacket or OEM brand
- 50pcs for each inner box and 10pcs in one export carton
- the picture similar as below
Delivery Date
- less than 1000pcs, one day after receipt of T/T
- 1000pcs-10, 000pcs, one week after receipt of T/T
- 100, 000pcs above, one month after receipt of T/T
- the battery shipped out by air sea with your require
Application
- 9V battery can be used various microphone loudspeaker,
- emergency lighting and back-up power, etc.
- and NImh battery application is very wide including of below,

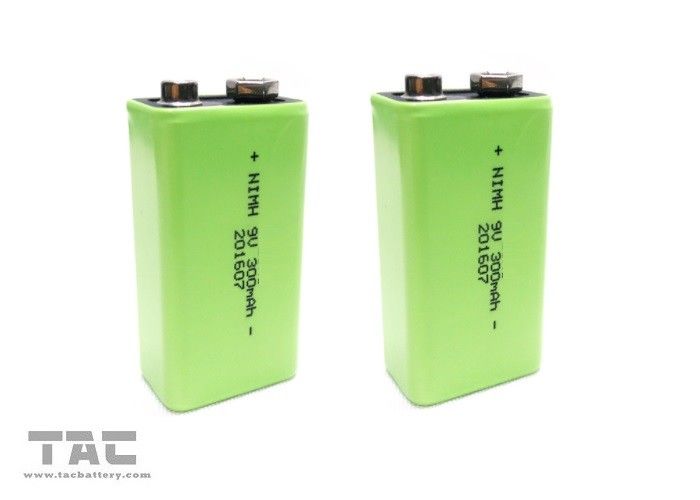

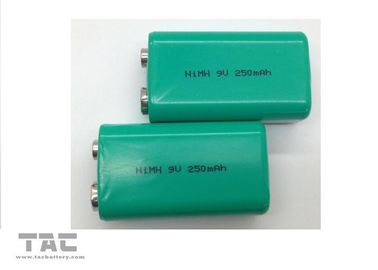

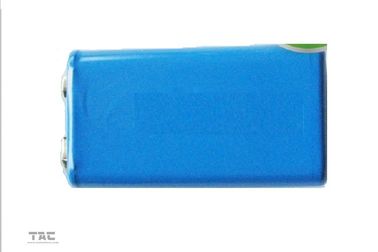

Battery Picture

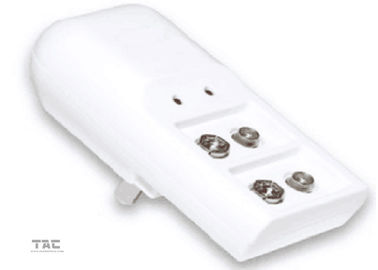

Production for Charger
The charger is suitable for NIMH 9v Battery including of various capacity
Other NiMh Production
Want to Know more details about this product
