19.2V LiFePO4 Battery Pack 32700 18AH With Connector For Sound Device UL Certification

19.2V LiFePO4 Battery Pack 32700 18AH With Connector For Sound Device UL Certification

  • 19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification
  • 19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification
  • 19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification
  • 19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification
19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification
Product Details:
Place of Origin: SHENZHEN
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: IFR32700 18V 19.2V 18AH
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: usd 30-50
Packaging Details: 1pcs for one bag with UN38.3
Delivery Time: 7-25 days after order confirm
Payment Terms: L/C, T/T
Supply Ability: 50000 per month
Contact Now
Detailed Product Description
Material: Lifepo4 Capacity: 18AH
Voltage: 18-19.2V Pcb: Including Of
Connector: JSP-PH-2P Circle Life: 2000 Times
High Light:

lithium iron phosphate battery pack

,

12 volt lithium battery

LiFePO4 Battery Pack 32700 19.2V 18AH With Connector For Sound Device UL Certification



Basic Parameter for LiFePO4 Battery Pack 32700 18V 18AH With Connector For Sound Device UL Certification



No.ItemsSpecifications

Remark


1

Nominal Capacity


18Ah

0.2C Standard discharge


2

Minimum Capacity


17.5Ah
3

Nominal Voltage


19.2V

Mean Operation Voltage


4

Charge Voltage


21.9V±0.03V

By standard charge method


5

Standard charging method


0.2C constant current,21.9V constant voltage charge to 21.9V,continue charging till current decline to ≤0.01C



6

Charge current


0.2C3.6A

Standard charge, charge time about 6h(Ref)




Fast charge current


0.5C9.0A
7

Standard discharging method


0.2C constant current discharge to12.0V,
9

Cell Battery Internal Impedance


≤40mΩ

Internal resistance measured at AC 1KHZ after 50% charge





Application


Electrical Vehicle  : Golf trolleys , Electric scooters .
Solar Storage Home wall System, Solar Street Light. Solar Lamp
48V Telecommunications Base Stations
Variour  Protable UPS(Uninterrupted Power Supply).

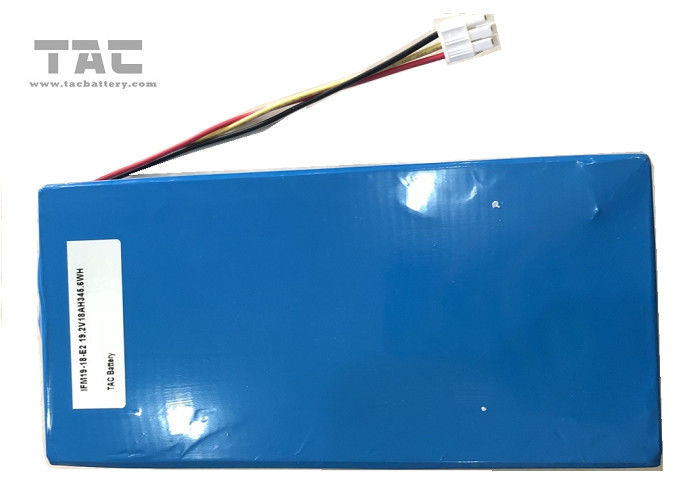

Battery Picture

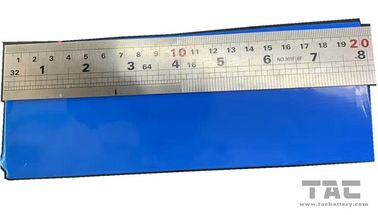

Maybe you call IFR32650  Battery Pack, Actually IFR32650 and IFR32700 is same model , The size is D=32MM H=70+/-5MM , So some buyer call 32650, and some buyer call 32700




19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification 0

19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification 1

19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification 2

Battery Pakage Show


one battery pack was protected by strong foam bag
one bag for one box , 5 box for one carton

19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification 3


Affiliated Production

19.2V LiFePO4 Battery Pack 32700  18AH With Connector For Sound Device UL Certification 4






Why choose Tac



  1. Under the same size, our product has the highest capacity.
  2. With the same capacity, our products are smaller and lighter
  3. The battery pack assembled by 32700 with excellent consistency performance , it is stable quality and longer cycle life
  4. Mass-produced can support better prices and lower MOQ
  5. OEM ODM are all available
  6. UL for single cell and save the pack certification fee
