High Temperature 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area

High Temperature 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area

Product Details:

Place of Origin: GUANGZHOU
Brand Name: Sunland
Certification: MSDS,UN38.3,REACH ROH,IEC60079-0
Model Number: IFM12-20E2-40

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: USD73
Packaging Details: 5pcs per cartons
Delivery Time: 20 to 25 days
Payment Terms: T/T
Supply Ability: 100000PCS per month
Get Best Price Contact Now

Detail Information

Type: LiFePO4 Battery Nornimal Voltage: 12.8V
Normal Capacity: 20AH Dimension: 45mm*162mm*140mm
Max Continuous Working Current: 20A Weight: 2KG
Highlight:

20AH Lithium Ion Battery Pack

,

40135 4S1P Lithium Ion Battery Pack

Product Description

Good High Temperature Performace 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area



Feature:

1. Just series,no parallel

2.  The cell Pass UL1642,IEC 60079-0

3 . Application for Hazardous Area, such Oil And Gas, And Pharmasutricals

4. Flame retardant class:V0

5. Positive and negative:M6 screw





Good High Temperature Performace 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area



Parameter:



No. Items Specifications

Remark



1

Capacity for assembled cell

discharging by 0.2C





               ≥19Ah

Standard discharging method



2



Battery Voltage



12.4-13.6V



Delivery voltage, Within 10 days from Factory







3





Standard charge condition

Charge with 0.2C constant current and 14.6Vconstant voltage, charge to 14.6V continue charging till current declineto ≤0.01C

Charge voltage: 14.6V±0.02V

Charge current:0.2C



4

Maximum charge current







20A

For continuous charging mod



5

Maximum discharge current





            20A

For continuous discharge mod



6

Standard discharging method



0.2C constant current discharge to 10V,





7

Internal Impedance





Assemblage Impedance

≤180mΩ

Measure two sides of the drawing line after assembling.











Good High Temperature Performace 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area

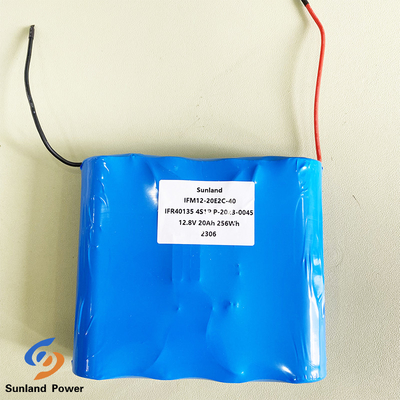

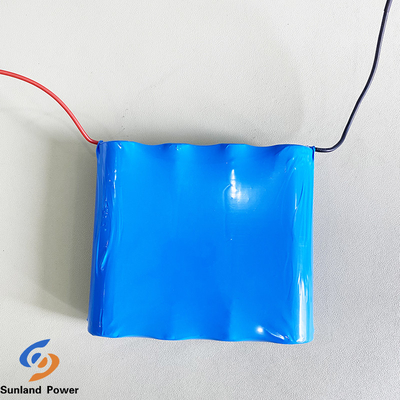

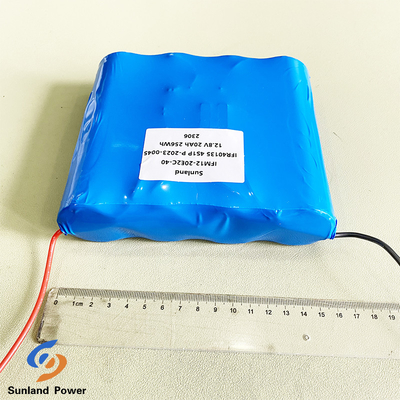

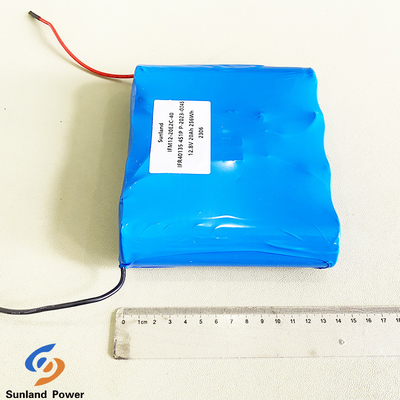

Picture:

High Temperature 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area 0High Temperature 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area 1High Temperature 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area 2High Temperature 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area 3



NO.

Part name

Quantity

Unit

Remark



1

Cell

4

PCS

IFR40135 3.2V 20AH



2

 Case

1

PCS

Blue PVC



3

BMS

1

PCS

TDT-8181A-4S



4

Cable

2

PCS

16AWG







Good High Temperature Performace 12V 20AH Lithium Ion Battery Pack 40135 4S1P For Hazardous Area



Prohibition short circuit

Never make short circuit cell. It generates very high current which causes heating of the cells and may cause electrolyte leakage, gassing

or explosion, that are very dangerous.

The LIP tabs may be easily short-circuited by putting them on conductive surface.

Such outer short circuit may lead to heat generation and damage of the cell.

An appropriate circuitry with PCM shall be employed to protect accidental short circuit of the battery pack.
