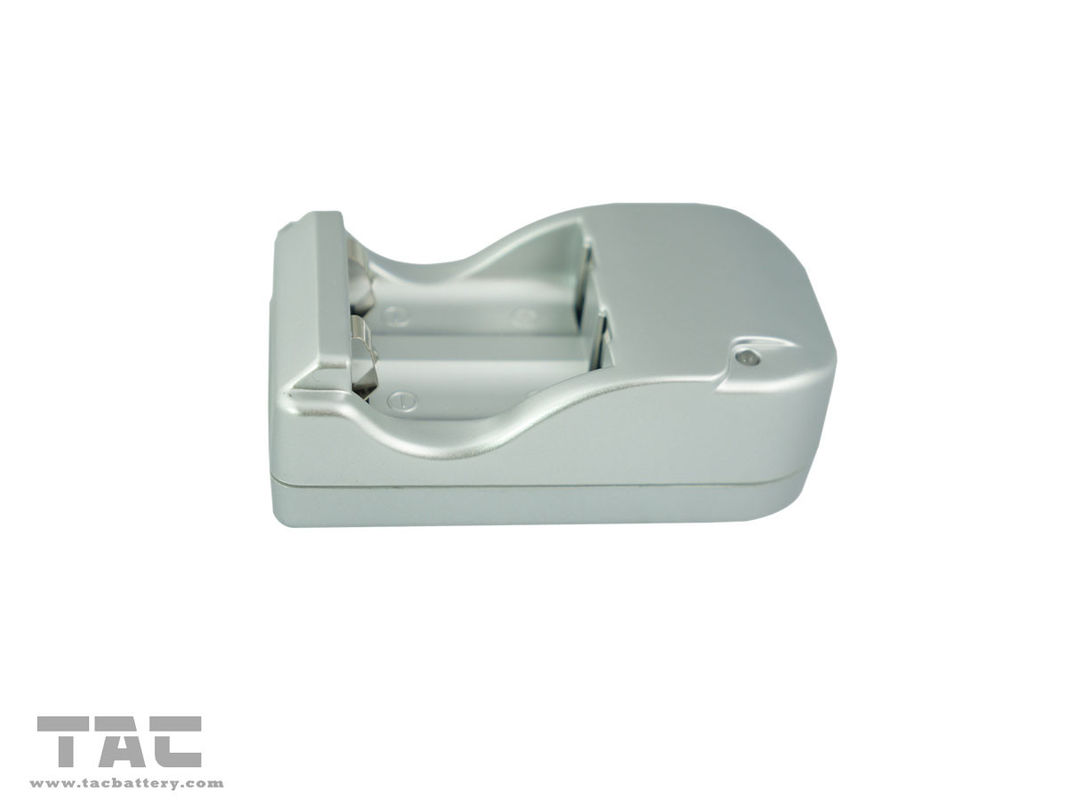

CR123A Portable Battery Charger 12 Volt For Li-Ion Battery

CR123A Portable Battery Charger 12 Volt For Li-Ion Battery

Product Details:

Place of Origin: guangzhou
Brand Name: TAC
Certification: UL,ROHS
Model Number: PCGF0094

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Price Negotiable
Packaging Details: 1pcs/box
Delivery Time: 14Days
Payment Terms: TT, LC, Paypal, etc
Supply Ability: 100000Piece/days
Get Best Price Contact Now

Detail Information

High Light:

rechargeable batteries chargers

,

volt battery charger

Product Description

CR123A Portable Battery Charger 12 Volt For Li-Ion Battery

CR123A Portable Battery Charger 12 Volt For Li-Ion Battery

  1. Input voltage: 12Vd.c.; Input current: 250mA
  2. Output voltage: 4.4Vd.c.; Output loading: 360mA
  3. ussage: Li-ion battery

Specification:



ITEM

DESCRIPTION

1.INPUT

1.1   Input voltage: 12Vd.c.

1.2   Input: current: 250mA

2.OUTPUT

2.1   Output voltage: 4.4Vd.c.

2.2   Output loading: 360mA

3.ADAPTER

3.1   Input voltage: Optional

3.2   Output voltage: 12Vd.c.

3.3   Output loading: 250mA

4.CHARACTERISTIC

  1.    Suitable for 1 or 2pcs 123A Li-ion battery

4.2   Charge with constant current and constant voltage.

5.OPERATING INSTRUCTION

  1.    Insert the battery into the battery compartment with

correct direction of polarity.

5.2   Connect the adapter to the charger and switch on the power.

  1.    Green LED indicates the power is on if there is no

batteries in the battery compartment.

  1.    Red LED indicates the batteries are properly

charging.

      Red LED turn to Green LED indicates the batteries are fully charged.

6.ENVIRONMENTAL

  1.   Operating temperature: 0℃ to  35℃ ambient
  2. Storage temperature: -20℃ to  80℃
  3. Operating humidity:20% to 90% RH

6.4  Storage humidity: 20% to 90% RH

7.CAUTION

  1.   Indoor use only. Do not expose the charger to rain

or moisture.

7.2  The charger is intended for use with Li-ion battery only. Attempt to charge other type of batteries may cause personal injury and damage the charger.

8.SAFETY STANDARD



9.MECHANICAL SPECIFICATION

9.1  Plastic case: Refer to sketch below

9.2  Input DC code: Φ5.5×2.1×10mm



CR123A Portable Battery Charger for Rechargeable 123A Battery









The plug for UK:

CR123A Portable Battery Charger 12 Volt For Li-Ion Battery 0

The plug for US

CR123A Portable Battery Charger 12 Volt For Li-Ion Battery 1





The plug for Euro:

CR123A Portable Battery Charger 12 Volt For Li-Ion Battery 2
