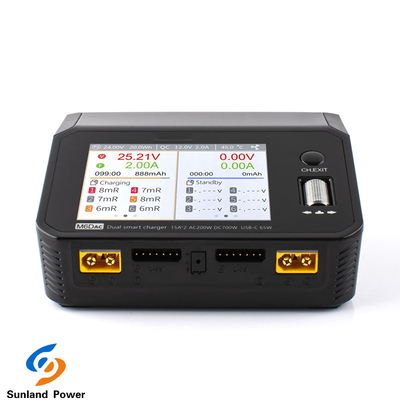

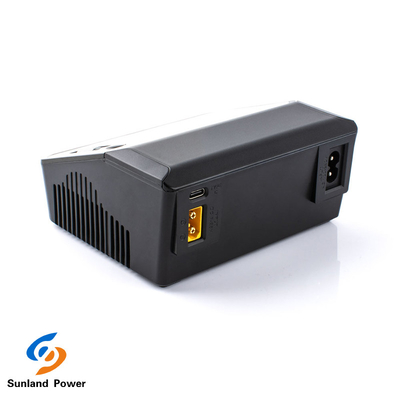

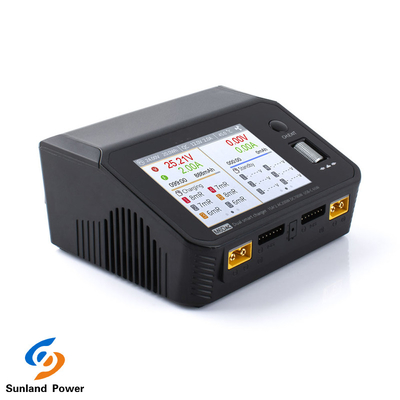

M6DAC 200W Portable Battery Chargers For UAV Battery Dual Channel Balanced Charger
Product Details:
| Place of Origin: | GUANGZHOU |
| Brand Name: | ODM OR OEM |
| Certification: | Reach,Rohs,FCC,UL1310,LVD |
| Model Number: | M6DAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | USD100 |

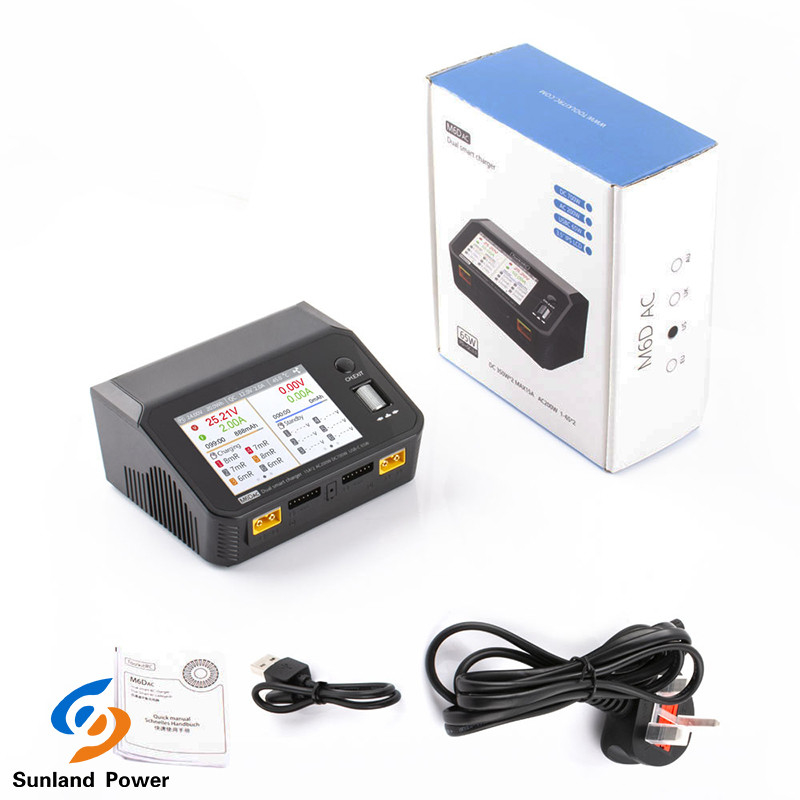

| Packaging Details: | 1pcs for each box 10pcs for each carton |
| Delivery Time: | 14 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 per week |
|
Detail Information |
|||
| Model Name: | M6DAC | Power Supply: | 200W |
|---|---|---|---|
| Charg Current: | 15A@MAX350W | Input Voltage: | 100-240V |
| Highlight: | 200W Portable Battery Chargers,M6DAC Portable Battery Chargers |
||
Product Description
200W Dual-Channel Balanced Charger Portable Battery Charger For UAV Battery
Built-in 200W AC power supply.
Charge, discharge and balance management of
LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, PB 1-10S
batteries.
Charging current:
Synchronous mode maximum 25A@MAX700W
Asynchronous mode maximum 15A@MAX350W
Discharge current:
Recycle mode maximum 15A @350W *2
Normal mode maximum 3A @15W *2
65W fast charge USB-C output.
PD/QC/AFC/FCP/SCP/PE/SFCP/etc. full protocol.
Lithium battery cut-off voltage can be set (TVC
function).
Constant current and constant voltage output,
customizable 1-28V constant voltage, 1-15A
constant current.
Can be adapted to mainstream UAV batteries,
automatically activated and charged.
Multi-language system, can arbitrarily upgrade the
required language.
The device connects to PC like a USB drive for easy
firmware upgrades. Simply copy and paste new
firmware files to update.
200W Dual-Channel Balanced Charger Portable Battery Charger For UAV Battery
Specification
|
Charging |
Input | DC 7-28V@MAX30A AC 100-240V@MAX2.5A |
| Battery Type |
LiPo LiHV LiFe Lion@1-6S NiMh @1-16S Pb @1-10S |
|
| Bal Cur. | 1000mA @2-6S | |
| Accuracy | <0.005V | |
| Charging Power |
0.1-15A@350W *2 ( Asynchronous mode) 0.1-25A@700W ( Synchronous mode) |
|
| Discharging Power | 0.1-15A@350W*2 Recycle Mode 0.1-3A@15W*2 Normal Mode | |
| USB-C | 65W@20V@3.25A upgrade | |
| Protocol | PD,QC,AFC,FCP,SCP,PE,SFCP,VOC | |
|
Battery Voltage |
1.0V-5.0V @1-6S | |
|
Battery Internal Resistance |
1-100mR @1-6S | |
| Display | LCD | IPS 3.5 inch 480*320 resolution |
| Product | Size | 127mm*106mm*57mm |
| Weight | 520g | |
| Individual packing | Size | 158mm*134mm*63mm |
| Weight | 700g |
