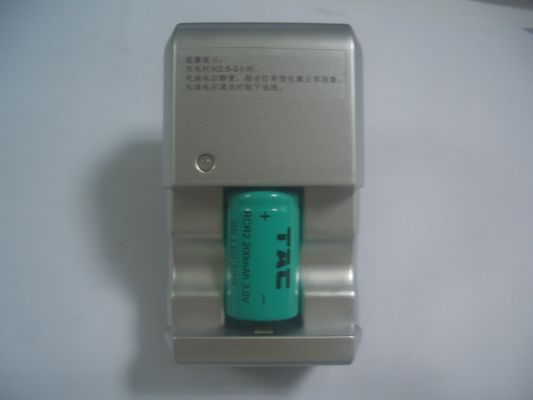

Lithium Battery Charger Of RCR2 Battery For Massage Electronic Stylus

Lithium Battery Charger Of RCR2 Battery For Massage Electronic Stylus

  • Lithium Battery Charger Of RCR2 Battery For Massage Electronic Stylus
  • Lithium Battery Charger Of RCR2 Battery For Massage Electronic Stylus
  • Lithium Battery Charger Of RCR2 Battery For Massage Electronic Stylus
Lithium Battery Charger Of RCR2 Battery For Massage Electronic Stylus
Product Details:
Place of Origin: guangzhou
Brand Name: TAC
Certification: UL CE
Model Number: 68S2-RCR2
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: usd 2.0
Packaging Details: 4 PCs/box, 50box/Carton, total 200pcs/Carton,
Delivery Time: Sample with stock 2 days after T/T,Mass order with stock 7 days after T/T ,Without stock 45days
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Type: Charger Suitable For: Rechargeable Lithium-ion Battery
Input: AC100-240V/50/60Hz 40mA Output: DC3.6V 100mA
Color: Sliver Charger For: Only 1 Pcs At Same Time
Warranty: 1 Year
High Light:

rechargeable battery chargers

,

volt battery charger

Lithium Battery Charger Of RCR2 Battery For Massage Electronic Stylus

Quick Detail:



1)Name: lithium battery charger

2)the charger is suitable for rechargeable lithium RCR2

3) Charge 1 pcs at the same time,

3) With safe circle protect board







Specification for Lithium Battery Charger Of RCR2 Battery For Massage Electronic Stylus



Item

Specification

1

Name

RCR2 battery charger

2

Model

68S2-RCR2

3

Applicable safety standard



4

Rating

Input

AC100-240V/50/60Hz 40mA

Output

DC3.6V  100mA

Operating temperature and humidity ranges

0℃to  35℃/45 to 85%RH

0℃to  40℃/10 to 90%RH

Storage temperature and humidity ranges

-20℃to  60℃

45 to 85%RH

5.5

Short circuit protection

The charger shall not be damaged or destroyed by shorting the DC output to Ground.

Determine Battery status

When the battery voltage less than 2V, charge the battery by the 0.1C current, when the battery voltage is higher than 2V charge the battery by standard.

Auto charging at backstage

When the battery is full and stopped charging, the battery voltage will drop. When the battery voltage drop to 3.5V, the charge recharge the battery with the red LED turn off.

CC Charge

When the battery voltage above 2V, turn to CC charge



End of charge

When the battery voltage reach 3.7V, stop CC charge,change to small current trick charge
