Deep Cycle 12V Lithium Battery Pack Storage 9.9Ah Replace GEL Battery
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | IFM12.8V-9.9AH-E2C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | USD 200-400 |
| Packaging Details: | 1pcs for one bag with UN38.3 |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 units/month |
|
Detail Information |
|||
| Type: | Lithium Battery Pack | Capacity: | 9ah-9.9AH |
|---|---|---|---|
| Voltage: | 12.8v | Circle Life: | 2000 Times |
| Warranty: | 12 Months | Size: | 150*65*95mm |
| PO NO: | PIFP0959 | Color: | Blue |
| Housing: | Abs+pc | ||
| Highlight: | lithium iron phosphate battery pack,12 volt lithium battery |
||
Product Description
Deep Cycle 12v Lithium Battery Pack Storage 9.9Ah Replace GEL Battery
Feature For Deep Cycle 12v Lithium Battery Pack Storage 9.9Ah Replace GEL Battery
1. Thebattey pack can be replacement of Lead-Acid battery,environmental protection pass ROHS
2. Longer life, more than 2000 cycles base on DOD 80%
3. Low self-discharge rate, less than 3% monthly
4. Lighter weight, with the best power-to-weight ratio
5. No memory effects
6. High charging & storage efficiency than normar lithium battery
7. Environment friendly, Non-toxic, non-contaminating and no rare metal
Specification For Deep Cycle 12v Lithium Battery Pack Storage 9.9Ah Replace GEL Battery
|
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
9.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5) |
|
2 |
Minimal Rated Capacity |
9.0Ah |
|
|
3 |
Nominal Voltage |
12.8V |
|
|
4 |
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles |
|
5 |
Discharge cut-off voltage |
10.0V |
10.0V( recommended) |
|
6 |
Charging cut-off voltage |
14.8V |
14.6V (recommended) |
|
7 |

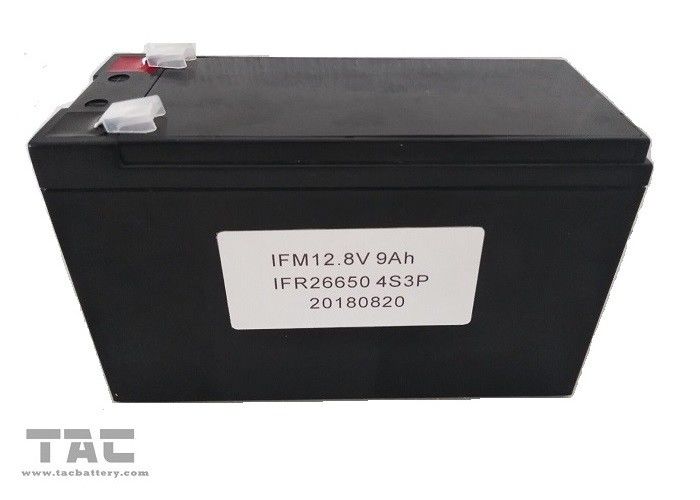

Cell and assembly method |
|
|
|
IFR26650EC 3.0AH |
4S3P |
||
|
8 |
Housing material |
ABS+PC housing |
|
Charge and Discharge Data
|
9 |
Standard charge |
0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C |
Charge time : Approx 7h |
|
10 |
Standard discharge |
Constant current 0.2C Cut-off voltage 10.0V |
|
|
11 |
Maximum Charge Current |
1C |
(0.2C Recommended) |
|
12 |
Continuous Discharge Current |
1C |
|
|
Peack Discharge Current |
5C |
|
|
|
13 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H.
|
|
Discharge: -10~60℃ |
|||
|
14 |
Storage Temperature Range |
Less than 1 year : 0~25℃ |
60±25%R.H. at the shipment state |
|
Less than 3 months:-5~35℃ |
|||
|
15 |
Weight |
Approx:1.6Kg |
|
|
16 |
Max.Dimension |
Height:151mm |
151*65*116mm |
|
Width: 65mm |
|||
|
Length: 116mm |
Lead Time
Packing for Battery Pack
Model List for 12V Lithium Battery Replace Lead Acid Battery
