Rechargeable Polymer Lithium Ion Batteries For IOT LP093040 3.7V 1000mAh
Product Details:
| Place of Origin: | GUANGZHOU |
| Brand Name: | Sunland |
| Certification: | UL, Rohs,REACH,UN38.3 |
| Model Number: | LP093040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | USD1.5 |
| Packaging Details: | 400pcs/ctn |
| Delivery Time: | 14days after order |
| Payment Terms: | T/T, LC, Paypal etc. |
| Supply Ability: | 60000/week |
|
Detail Information |
|||
| Type: | Polymer Lithium Ion Battery | Capacity: | 1000MAH |
|---|---|---|---|
| Voltage: | 3.7V | Connector: | JST SHR-03 |
| PCB: | YES | Cable: | UL1571 26# |
| Size: | 9mm*30mm*40mm | Max Discharge Current: | 1A |
| High Light: | Rechargeable Polymer Lithium Ion Batteries,LP093040 Polymer Lithium Ion Batteries,Polymer Lithium Ion Batteries 1000mAh |
||
Product Description
LP093040 3.7V 1000mAh Rechargeable Polymer Lithium Ion Batteries For IOT
-
Model Name:LP0903040
-
Battery Type :polymer lithium-ion battery
-
Nominal Voltage 3.7V
-
Nominal Capacity 1000MAH
-
Size :9mm(T)*30mm(w)*40mm(h)
LP093040 3.7V 1000mAh Rechargeable Polymer Lithium Ion Batteries For IOT
Cell Specification:
| No. | Items | Specifications |
Remark |
| 1 |
Nominal Capacity |
1000mAh |
0.2C Standard discharge |
| 2 |
Minimum Capacity |
980mAh | |
| 3 |
Nominal Voltage |
3.7V |
Mean Operation Voltage |
| 4 |
Delivery voltage |
≥3.7V |
Within 90 days from Factory |
| 5 |
Charge Voltage |
4.2V±0.03V |
By standard charge method |
| 6 |
Standard charging method |
0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C |
|
| 7 |
Charge current |
0.2C |
Standard charge, charge time:6.5h(Ref) |
| 0.5C |
Rapid Charge, charge time:4.5h(Ref) |
||
| 8 |
Standard discharging method |
0.2C constant current discharge to 3.0V, | |
| 9 |
Discharge cut-off voltage |
3.0V |
By standard discharge method |
| 10 |
Cell Internal Impedance |
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
| 11 |
Maximum charge current |
0.5C |
For continuous charging mod |
| 12 |
Maximum discharge current |
1C |
For continuous discharge mod |
| 13 |
Operation Temperature and relative humidity Range |
Charge |
0~45℃ 60±25%R.H. |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery |
| Discharge |
-10~60℃ 60±25%R.H. |
|||
| 14 |
Storage temperature for a long time |
-20~25℃ 60±25%R.H. |
Do not storage exceed half year. Suggest charge once when storage for half year. Suggest charge the battery which with protect circuit when storage for every 4 month. |
|
| 15 |
Charge ex-factory |
≥80% | ||
| No. | Items | Specifications |
Remark |
| 1 |
Capacity for assembled cell discharging by 0.2C |
≥980mAh |
Standard discharging method |
| 2 |
Standard charge condition |
Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C |
Charge voltage:4.2V±0.02V Charge current:0.2C |
| 3 |
Max charging curent |
500mA | |
| 4 |
Standard discharging method |
0.2C constant current discharge to 3.0V, | |
| 5 |
Max discharging curent |
1000mA | |
| 6 |
Internal Impedance |
Assemblage Impedance |
Measure two sides of the drawing line after assembling. |
| 7 |
Weight |
25g |
LP093040 3.7V 1000mAh Rechargeable Polymer Lithium Ion Batteries For IOT

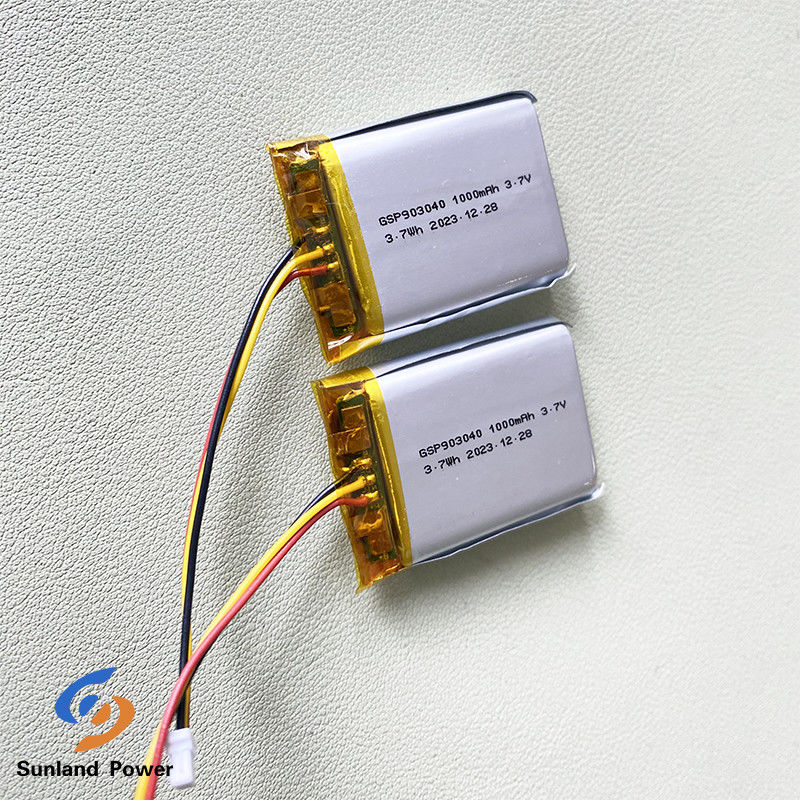

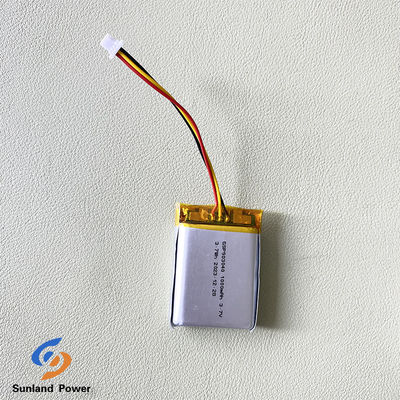

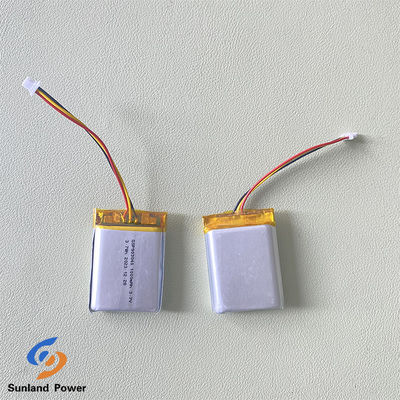

Picture:
LP093040 3.7V 1000mAh Rechargeable Polymer Lithium Ion Batteries For IOT
