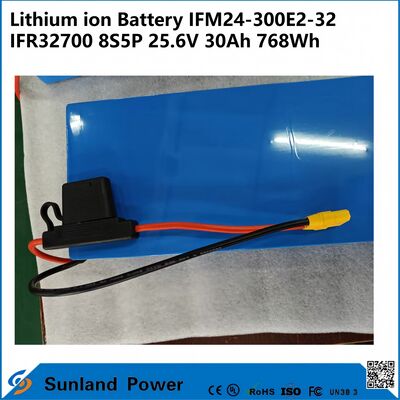

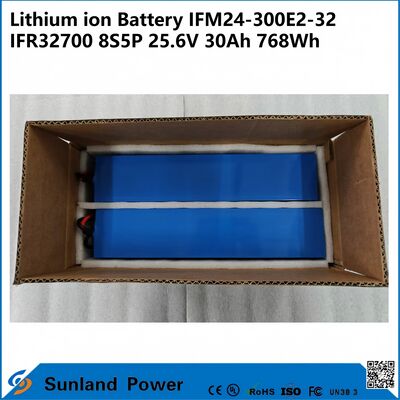

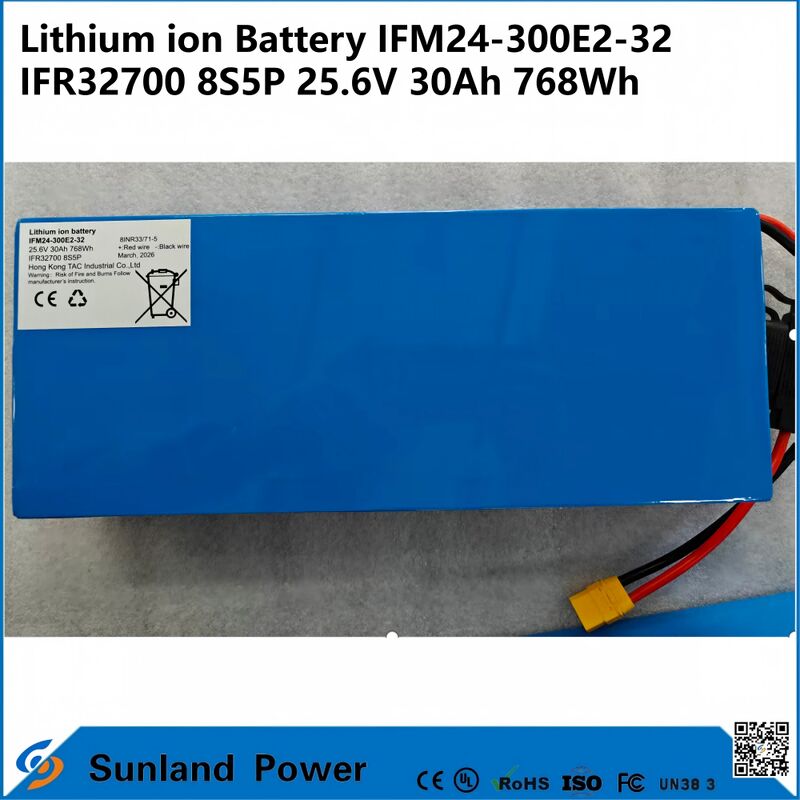

IFM Pro 25.6V 30Ah Industrial Battery – Powered by IFR32700 Cells, 8S5P, 768Wh. Built for AGVs, Robots & Solar Storage.
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TAC |
| Certification: | MSDS UN38.3 |
| Model Number: | IFR32700 8S5P |
Payment & Shipping Terms:
| Minimum Order Quantity: | Allow negotiation |
|---|---|
| Price: | Allow negotiation |
| Packaging Details: | Allow negotiation |
| Delivery Time: | Allow negotiation |
|
Detail Information |
Product Description
IFM Pro 25.6V 30Ah Industrial Battery
--Powered by IFR32700 Cells, 8S5P, 768Wh. Built for AGVs, Robots & Solar Storage.
Product Specification(产品技术规格)
Table
|
No. (序号) |
Item (项目) |
General Parameter (常规参数) |
Remark (备注) |
| 1 |
Rated Capacity (额定容量) |
30Ah |
Standard discharge 0.2C after standard charge(0.2C) (0.2C标准充电后0.2C标准放电) |
| 2 |
Minimal Rated Capacity (最小容量) |
30Ah | |
| 3 |
Nominal Voltage (标称电压) |
25.6V | |
| 4 |
Cycle Life (循环寿命)
|
Higher than 80% of the Initial Capacity of the Cells(初始容量的80%) |
◆Charge: CC@0.2C to 29.2V, then CV till current to 0.02C ◆Rest: 30min. ◆Discharge: 0.2C to 20.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles ◆先以0.2C恒流充电至29.2V,再恒压充电至电流小于0.02C ◆搁置:30min. ◆放电: 0.2C放至20.0V ◆温度:20±5℃ ◆循环2000次100%DOD |
| 5 |
Discharge cut-off voltage (放电截止电压) |
20V (放电保护电压) | |
| 6 |
Charging cut-off voltage (充电截止电压) |
29.2V | |
| 7 |
Cell and assembly method (电芯和组装方式) |
IFR32700-6.0AH | 8S5P |
| 8 |
Packing material (外包装材料) |
PVC shrink | |
| 9 |
IR 内阻 |
≤150mΩ |
|
No. (序号) |
Item (项目) |
General Parameter (常规参数) |
Remark (备注) |
| 9 |
Standard charge (标准充电) |
0.2C constant current(CC) charge to 29.2V,then constant voltage (CV)29.2V charge till charge current decline to ≤0.02C 0.2C恒流充电至29.2V,再恒压29.2V充电直至充电电流≤0.02C |
Charge time : Approx 6h (充电时间:大约6个小时) |
| 10 |
Standard discharge (标准放电) |
Constant current 0.2C Cut-off voltage 20.0V (持续电流: 0.2C 截止电压:20.0V) |
|
| 11 |
Maximum Charge Current (最大充电电流) |
20A | |
| 12 |
Max Continuous Discharge Current (最大持续放电电流) |
30A | |
| 13 |
Operation Temperature Range (工作温度范围) |
Charge(充电): 0~45℃ |
60±25%R.H.
|
| Discharge(放电): -20~60℃ | |||
| 14 |
Storage Temperature Range (储存温度范围) |
Less than 1 year : 0~25℃ (小于一年: 0~25℃) |
60±25%R.H. at the shipment state (出货态时的湿度范围) |
|
Less than 3 months:-5~35℃ (小于3个月:-5~35℃) |
|||
| 15 |
Weight (重量) |
Approx/大约: 6.35kg | |
| 16 |
Pack Dimension (包装后尺寸) |
Height/高度:76mm | Max size |
| Width/宽度: 140mm | |||
| Length/长度: 351mm |
