CR2 3V 900mAH LiMnO2 Primary Lithium Battery for GPS Security System

Product Description

CR2 3V 900mAH LiMnO2 Primary Lithium Battery for GPS Security System





Specification for CR2 3V 900mAH LiMnO2 Primary Lithium Battery for GPS Security System



No.	Items		Specification
1	Nominal Voltage		3.0 V
2	Capacity (Discharge Current 1mA to 2.0V)	Nominal	900 mAh
		Minimum	850 mAh
3	Max. Discharge Current	Continuous	100 mA
		Pulse	400 mA
4	Discharge Cut-off Voltage		2.0 V
5	Weight		Approx. 11.5 g
6	Operating Temperature		-40 ℃ to 60 ℃
7	Storage Temperature		-10 ℃ to 40 ℃
8	Relative humidity		65±20%
9	Period of Validity		5 years
10	Note:Polyswitch is inside the cell.





Hermetically Sealed Construction



1. Internal construction: spiral
2. Model: CR2
3. Nominal voltage:3.0V
4. Nominal capacity: 900mAh
5. Standard discharge current: 10mA
6. Max continuous current: 800mA
7. Maximum pulse current: 1500mA
8. Operating temperature range: -40 to 70°C
9. Maximum dimensions: Ø15.5 x 27.0mm
10. Weight: 11.0g
11. Internal construction: spiral
12. Lifetime: 5-10 years





Features:



1. High and stable operating voltage :3.0V
2. High energy density : 3 to 10 times higher than other non-lithium batteries
3. Wide operating temperature range:-40 ℃ to 60 ℃
4. Low self-discharge rate:Less than 1% per year at room temperature
5. Long shelf life:  90% capacity remaining after 10 years’ storage at 20°C
6. Superior leakage resistance
7. Extremely safe :passed (MH45237/MH49306),UN38.3,CE and RoHS certificated.
8. Environmental protection : Don’t contain toxic materials, noxious liquids or gases



Application:



Intelligent instruments,

smoke detector,

security device,

signal lights and post indicator transfer,

devices, Lighting,

Medical equipment,

Wireless and other equipment,

water, gas and electricity meters,

memory backup power sources,

archery tracer nock



Packing Standard

put the battery into hard paper box tidy, and 50pcs for one inner box

and 8 box put into one standard paper carton with UN38.3 Certificaiton

Payment and  Delivery



1 Price term: FOB (Shenzhen/Guangzhou/HongKong/Shanghai),Ex-works.CIF,C&F.

2. Payment term:30%TT in advance and the balance 70% against copy of B/L,or

     30%TT in advance and the balance before shipment,or 30%TT and 70% LC at sight.

3. Delivery time: 3-25 days after getting deposite.If OEM

4.Brand: TAC or OEM

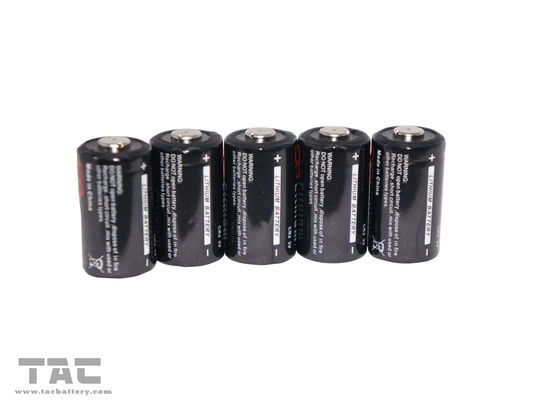

PICTURE FOR CR2 3.0V:









More Model for  LiMnO2 Primary Lithium Battery



Model	Nominal Voltage	Nominal Capacity	Discharge Current	End Voltage	Operating Temperature	Max. Diameter	Max. Height	Reference Weight
CR14250	3V	650mAh	10mA	2.0V	-20°C~+60°C	14.5mm	25.0mm	10g
CR14505	3V	1500mAh	10mA	2.0V	-20°C~+60°C	14.5mm	50.5mm	17g
CR17335	3V	1500mAh	10mA	2.0V	-20°C~+60°C	17.0mm	33.5mm	16g
CR17450	3V	2000mAh	10mA	2.0V	-20°C~+60°C	17.0mm	45.0mm	25g
CR17505	3V	2300mAh	10mA	2.0V	-20°C~+60°C	17.0mm	50.5mm	28g
CR123A	3V	1500mAh	10mA	2.0V	-20°C~+60°C	17.0mm	34.5mm	16g
CR1/3N	3V	160mAh	1mA	2.0V	-20°C~+60°C	11.6mm	10.8mm	3.3g
CR2	3V	850mAh	10mA	2.0V	-20°C~+60°C	15.6mm	27.0mm	11g
CR-P2	6V	1400mAh	10mA	4.0V	-20°C~+60°C	34.8*35.8*19.5mm		34g
2CR5	6V	1400mAh	10mA	4.0V	-20°C~+60°C	34*45*17mm		34g
CR-V3	3V	3000mAh	20mA	2.0V	-20°C~+60°C	29*14.5*52mm		34g





If you need rechargeable cell for same size , pls check below



https://www.tacbattery.com/sale-389784-rechargeable-3-0v-cr2-lifepo4-battery-for-medical-equipment-massage-pen.html
