3.0V CR2 200mAh Lithium battery of LiFePO4 Battery Cell for Meridian Pen

3.0V CR2 200mAh Lithium battery of LiFePO4 Battery Cell for Meridian Pen

Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: 3.2V IFR15270

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Price: USD2.0
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: T/T
Supply Ability: 50000 pack for one week
Get Best Price Contact Now

Detail Information

Nominal Voltage: 3.2V Rated Capacity: 200mAh
Material: LiFePO4 Battery Cell Circle Life: 2000times
Warranty: 12 Months Rechargeable: Yes
Pvc: Green/ Blue/ OEM PO NO: PIFC0237
Size: 15*27mm CR2 Customized: Oem And Odm Workable
High Light:

lifepo4 battery pack

,

lithium iron phosphate battery pack

Product Description

3.0V CR2 200mAh Lithium battery of LiFePO4 Battery Cell for Meridian Pen

3.0V CR2 200mAh Lithium battery of LiFePO4 battery cell for Meridian pen

Feature  for  3.0V CR2 200mAh Lithium battery of LiFePO4 battery cell for Meridian pen

1. The model name is IFR15270, we always call RCR2 or CR2.

2. It ie rechargeable, the rate voltage is 3.2V and the normal capacity is 200mAh

3. The cycle life is about 1000 times.



Product Specification



No. Items Specifications

Remark



1

Nominal Capacity



200mAh

0.2C Standard discharge



2

Minimum Capacity



195mAh
3

Nominal Voltage



3.2V

Mean Operation Voltage



4

Delivery voltage



3.2~3.3V

Within 10 days from Factory



5

Charge Voltage



3.65V±0.03V

By standard charge method



6

Standard charging method



0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C



7

Charge current



0.2C 40mA

Standard charge, charge time about 6h(Ref)



0.5C 100mA

Rapid Charge, charge time about: 3h(Ref)



8

Standard discharging method



0.2C constant current discharge to2.0V,
9

Cell Internal Impedance



≤120mΩ

Internal resistance measured at AC 1KHZ after 50% charge






 Main Applications :



1. Utility meter (water, electricity, gas meter, AMR)

2. Alarm or security equipment (smoke alarm system, detector)

3. GPS tracking

4. Teal time clock

5. Digital control machine

6. Military

7. Remote monitoring systems

8. Car electronics

9. Camera

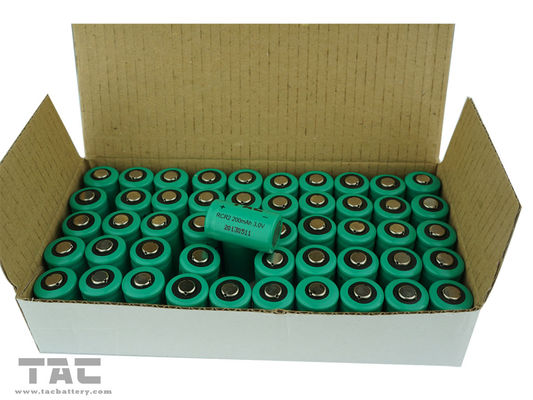

Picture &Drawing



3.0V CR2 200mAh Lithium battery of LiFePO4 battery cell for Meridian pen



3.2V LiFePO4 battery cell





LFP battery











Li-ion battery





Available Model for the LIFePO4 Button Cell:



IFR32700  IFR18650   IFR26650  IFR14500  IFR17335  AND MORE ----

3.0V CR2 200mAh Lithium battery of LiFePO4 Battery Cell for Meridian Pen 3

Cautions in use



To ensure proper use of the battery please read the manual carefully before using it.

   . Handling

  •  Do not expose to, dispose of the battery in fire.
  • Do not put the battery in a charger or equipment with wrong terminals connected.
  • Avoid shorting the battery
  • Avoid excessive physical shock or vibration.
  • Do not disassemble or deform the battery.
  • Do not immerse in water.
  • Do not use the battery mixed with other different make, type, or model batteries.
  • Keep out of the reach of children.

     . Storage

  • Store the battery in a cool, dry and well-ventilated area.

     . Disposal

  • Regulations vary for different countries.
  • Dispose of in accordance with local regulations.



Battery operation instruction



Discharging current

The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.



Electric discharge temperature

The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.



Storing the Batteries

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.



Period of Warranty



Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.



Certification

3.0V CR2 200mAh Lithium battery of LiFePO4 Battery Cell for Meridian Pen 4



Our Factory

3.0V CR2 200mAh Lithium battery of LiFePO4 Battery Cell for Meridian Pen 5



Both of cell and Battery pack are customized for you

https://www.tacbattery.com/sale-12447762-1-8v-lifepo4-battery-pack-32700-18ah-with-connector-for-sound-device-ul-certification.html





3.0V CR2 200mAh Lithium battery of LiFePO4 Battery Cell for Meridian Pen 6





There are two type for same size , if you need non-rechargeable cell , pls check below



3.0V CR2 200mAh Lithium battery of LiFePO4 Battery Cell for Meridian Pen 7
