• Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool
  • Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool
Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool

Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool

Product Details:

Place of Origin: guangzhou
Brand Name: tac
Certification: ROHS\ UL
Model Number: 9759156MP

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: USD3-5
Packaging Details: 20pcs / tray 10 tray / carton
Delivery Time: 20 days
Supply Ability: 100000pcs/ week
Get Best Price Contact Now

Detail Information

Lithium: Polymer Lithium High Capacity: 10AH
Voltage: 3.2V High Power: 5C-10C
SIZE: T: 9.7MM W: 59MM H:156MM PACK: Battery Pack Are Workable
High Light:

li-ion polymer battery

,

high capacity lithium ion battery

Product Description

Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool

Advantages for Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool



1.Professional lithium-ion battery manufacturer

2.Strong R&D team to support.

3.High power high capacity flexible size

4.Long cycle Life 500times.

5. Capacity and size could be customized .



Application:

The battery can be used for RC  e-bike  power tool jump starter and so on

Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool 0







Product Description



No. Item Rated Performance Remark
1 Rated Capacity Typical 720mAh Standard discharge(0.2C C5A) after Standard charge
Minimum 700mAh
2 Nominal Voltage 3.7V Mean Operation Voltage During Standard Discharge After Standard Charge
3

Voltage at end of

Discharge

2.75V Discharge Cut-off Voltage
4 Charging Voltage 4.2±0.03V
5 AC (1KHz) Impedance New Cell Max.(mW) ≤160mΩ
6 Standard charge

Constant Current 0.5C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 4.0h
7 Standard discharge

Constant current 0.2 C5A

end voltage2.75V


8 Fast charge

Constant Current 1C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 2.5h
9 Fast discharge

Constant current 1 C5A

end voltage2.75V


10 Maximum Continuous Charge Current 1 C5A
11 Maximum Continuous Discharge Current 1.5C5A
12 Operation Temperature Range Charge: 0~45℃

60±25%R.H.

Bare Cell

Discharge: -20~60℃
13

Storage Temperature

Range

Less than 1 year: -20~25℃

60±25%R.H.

at the shipment state

less than 3 months: -20~40℃
14 Weight Approx: 14 g Bare Cell
15 Pack Dimension Length: Max 49 mm Initial Dimension
Width: Max. 30.5mm
Thickness: Max. 5.2mm

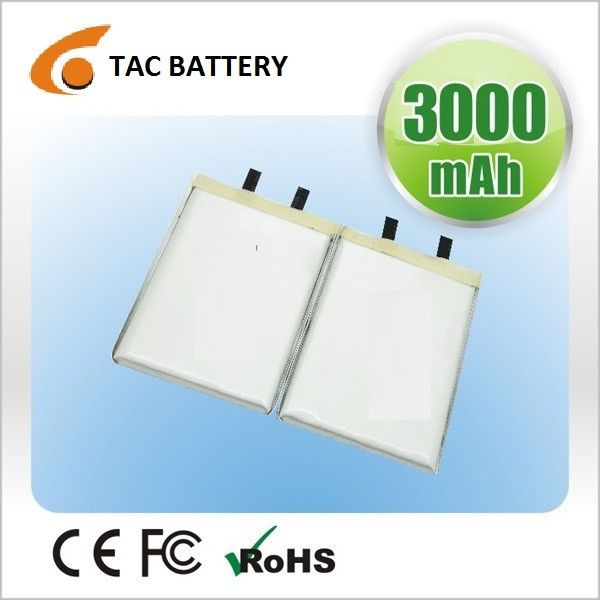

product photo

Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool 1Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool 2



Packing Photo

Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool 3



HK TAC Polymer battery production line photo

Polymer Lithium Ion Batteries 5C-10C 9759156 ROHS UL For Power Tool 4
