PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike

PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike

    • PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike
    • PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike
    • PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike
  • PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike

    Product Details:

    Place of Origin: shenzhen
    Brand Name: TAC
    Certification: MSDS REACH ROHS
    Model Number: IFR12.8V 36Ah

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 PCS
    Price: usd 50-100
    Packaging Details: 1pcs for one bag with UN38.3
    Delivery Time: 7-25 days after order confirm
    Payment Terms: L/C, T/T, paypal
    Supply Ability: 1000units/days
    Contact Now
    Detailed Product Description
    Brand Name:: TAC Model Number:: 12.8V 36Ah
    Nominal Voltage:: 12.8V-15.6V Rated Capacity:: 36AH
    Type:: LiFePO4 Lithium Battery Size:: T33:W295:H272mm
    Weight:: 3.6KG OEM & ODM:: Support
    PO NO: PIFP0965 Warranty: 1 Year
    High Light:

    lifepo4 battery pack

    ,

    12 volt lithium battery

    PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike

    Product Specification for PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike

    No.ItemGeneral ParameterRemark
    1Rated Capacity36.0Ah

    Standard discharge(0.2 C5)after standard charge(0.2 C5)
    (

    2

    Minimal Rated
    Capacity

    35.0Ah
    3Nominal Voltage12.8V
    4

    Cycle Life


    Higher than 60% of the Initial Capacity of the Cells

    Charge: CC@0.2C to 14.6V, then CV till current to 0.02C
    Rest: 30min.
    Discharge: 0.2C to 10.0V
    Temperature:20±5℃
    Carry out 2000cycles

    5Discharge cut-off voltage9.2V10.0V( recommended)
    6Charging cut-off voltage14.8V14.6V (recommended)
    7Cell and assembly methodIFR26650-3.0AH4S12P
    8Housing materialPVC



    The Charge And Discharge Performance And Measure



    No.
    Item



    General Parameter


    Remark


    9

    Standard charge


    0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.02C


    Charge time : Approx 7h


    10

    Standard discharge


    Constant current 0.2C
    Cut-off voltage 10.0V


    11

    Maximum Charge Current


    10A
    12

    Continuous Discharge Current


    10A
    13

    Operation Temperature Range


    Charge:0~45℃

    60±25%R.H.


    Discharge: -10~60℃
    14

    Storage Temperature Range


    Less than 1 year : 0~25℃


    60±25%R.H.
    at the shipment state


    Less than 3 months:-5~35℃


    15

    Weight


    Approx/: 3.60Kg
    16

    Max. Dimension


    thickness/:33mm




    Width/: 295mm
    Length/272mm

    12v Lithium ion Battery Application

    The Lifepo4 battery pack widely use in our daily life including of the Power tool, E-cig, E-bike, Robot, E-bike, Bright flashlight, headlights, Mobile medical equipment, digital camcorder, digital camera, e-book, household electrical appliances, and other equipment etc.
    PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike 0


    Packaging & Shipping

    1. the battery protect the foam bag one by one and put it into 3 times outer pack
    2. UPS / DHL / EMS/ FEDEX / TNT within 7 working days
    3. The shipping cost is different in different country and weight ,we will choose the cheapest one for you always.
    PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike 1

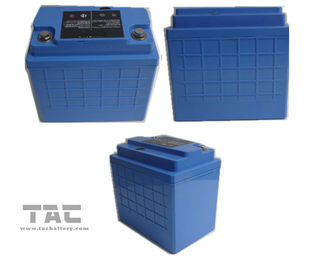

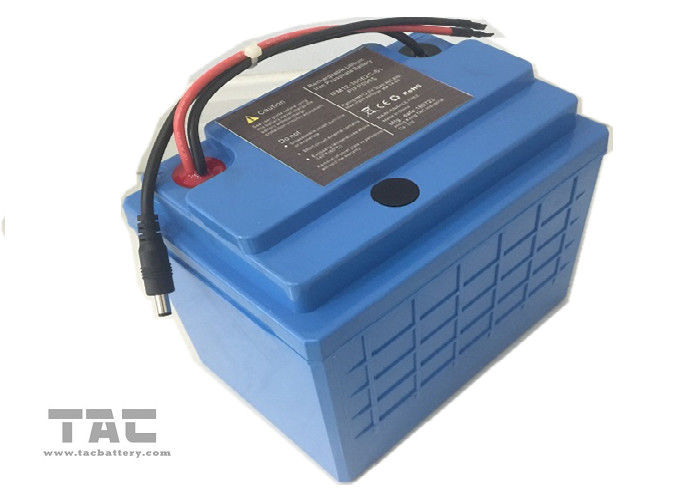

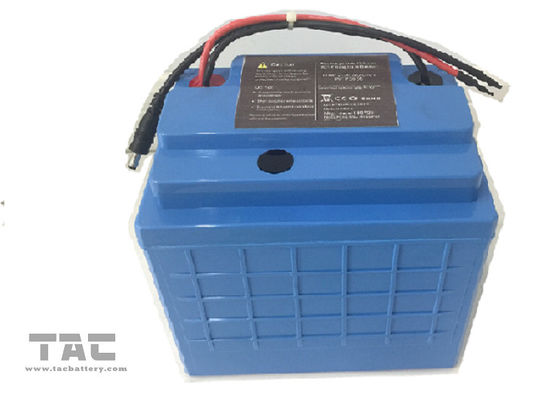

    Battery Show

    PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike 2

    TAC Trade Terms:

    Payment: T/T, PayPal for sample,small order);L/C
    30% deposits,70% balance before delivery (batch order).

    Delivery Time: 7-10days(if the samples did have stock ),10-15days(base on small order),35-40days(for batch order)
    MOQ: 50pcs

    Features and Advantages of Lifepo4 Battery

    1. Excellent high and low temperature discharge performance . Nominal voltage 3.2V, 90% capacity output under the stable voltage
    2. Widely using temperature range, can be operated in -40°C~+60°C.
    3. Excellent storage life and reliability. With low self-discharge, self-discharge rate≤5% monthly.
    4. Flexible design,also can make special design for customers.
    5. Long cycle life, more than 2000 charge/discharge cycles ( 80% capacity remained ).
    6. lithium batteries are environmentally friendly and pollutant free power, it's without mercury, cadmium,lead and other heavy metals.pass the REACH ROHS



    Why chose us

    1. over 8 year professional manufacturer in lithium-ion battery Lifepo4 polymer lithium battery
    2. Low MOQ :we can agree with small quantity even 1 set samples and try our best to meet you business very well
    3. OEM ODM accepted :please send us you design, we can submit best solution not only for the battery cell but also BMS and specially wire or connector
    4. Good service :Quickly action and respond.Professional technology support
    5. Good quality :We are vendor for Philips Samsung
    6. Fast&safe delivery :strong export team, and export forward partner

    Factory Certification
