Lithium ion polymer battery 0865155 3.7V 8000mAh Cells For Wireless

Lithium ion polymer battery 0865155 3.7V 8000mAh Cells For Wireless

  • Lithium ion polymer battery  0865155 3.7V 8000mAh Cells  For Wireless
  • Lithium ion polymer battery  0865155 3.7V 8000mAh Cells  For Wireless
  • Lithium ion polymer battery  0865155 3.7V 8000mAh Cells  For Wireless
Lithium ion polymer battery  0865155 3.7V 8000mAh Cells  For Wireless
Product Details:
Place of Origin: guangzhou
Brand Name: Tac
Certification: UL, Rohs
Model Number: 0865155 3.6v 8000mah
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: usd 7.0
Packaging Details: 20 pcs in one pallet, 10 pallet in one carton
Delivery Time: 14days after the order confirm
Payment Terms: T/T, LC,Paypal etc.
Supply Ability: 30K/Day
Contact Now
Detailed Product Description
Material: Polymer Lithium Voltage: 3.6-4.2v
Capacity: 8000mah Circle Life: 500 Times
Warranty: 12 Years Pack: Workable
Rechargeable: Yes OEM \ODM: Yes
Brand: TAC Or OEM Accemble: PCB Wire And Connector
High Light:

li-ion polymer battery

,

high capacity lithium ion battery

Lithium ion polymer battery 0865155 3.7V 8000mAh Cells For Wireless

Specification for Lithium ion polymer battery 0865155 3.7V 8000mAh Cells For Wireless

No.ItemsSpecifications

Remark


1

Nominal Capacity


8000mAh

0.2C Standard discharge


2

Minimum Capacity


8000mAh
3

Nominal Voltage


3.7V

Mean Operation Voltage


4

Delivery voltage


≥3.7V

Within 90 days from Factory

5

Charge Voltage


4.2V±0.03V

By standard charge method


6

Standard charging method


0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C



7

Charge current


0.2C

Standard charge, charge time:6.5h(Ref)


0.5C

Rapid Charge, charge time:4.5h(Ref)


8

Standard discharging method


0.2C constant current discharge to 3.0V,
9

Discharge cut-off voltage


3.0V

By standard discharge method


10

Cell Internal Impedance


≤60mΩ

Internal resistance measured at AC 1KHZ after 50% charge


11

Maximum charge current


0.5C

For continuous charging mod


12

Maximum discharge current


0.5C

For continuous discharge mod


13

Weight


200.0±5.0g



Packing Method for Battery  Pack

Whatever  the polymer lithium  battery  pack or single cell will be similar with below

20 single  battery put in the ROHS plastic tray and 10-12 tray in one strong paper  carton
Lithium ion polymer battery  0865155 3.7V 8000mAh Cells  For Wireless 0


Application


Application for Lipo Battery 0865158 3.7V 8000mAh Cells Square Soft pack for wireless
the battery customized for wireless equipment, high capacity 8000mah with protect board wire and connector.

The polymer battery cell widely used in digital products such as drones, smart wearables, car start-stop devices, tablet computers, Bluetooth speakers, DVDs, new energy vehicle batteries, solar and wind energy communication base stations, and home energy storage systems.

Delivery date

After the customer sign the pi , we will ship the cargo from factory  within 20 -25 days
When we confirm all the detail for the battery pack , 30-35 days will send the cargo if you need customized
shipped out the cargo by air sea ups tnt  and other express with your require
Drawing for battery pack
Lithium ion polymer battery  0865155 3.7V 8000mAh Cells  For Wireless 1

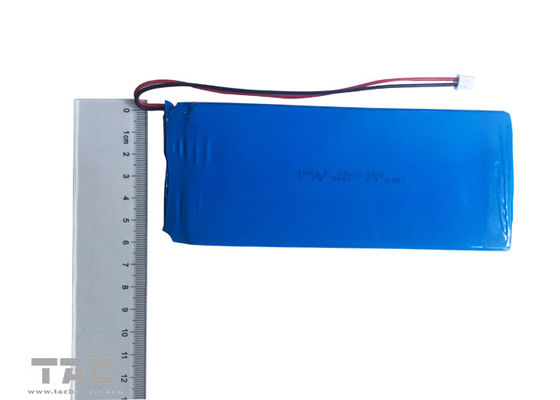

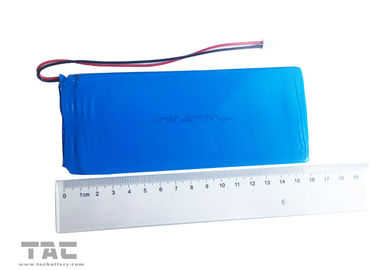

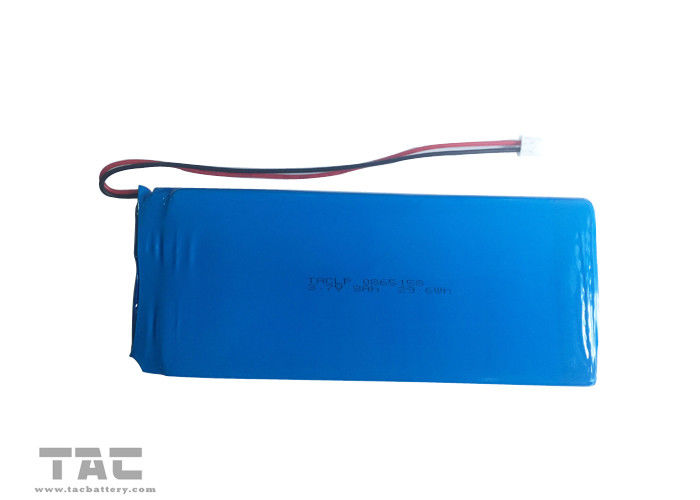

Product photos

Lithium ion polymer battery  0865155 3.7V 8000mAh Cells  For Wireless 2
There are two type for  pouch cell , one is Lithium ion polymer battery (3.7v)  , the other is LiFePO4 battery (3.2v )

https://www.tacbattery.com/sale-382076-3-2v-lifepo4-battery-11585135-10000mah-lifepo4-cells-for-electric-motor.html


Model List for 8000MAH Lithium ion polymer battery , Maybe you need more suitable size


MODELCAPACITYMIN CAPACITYINNER RESISTANCEVOLTAGEPERFORMANCEMAX SIZE/mm
mAhmAhVcharge currentdischarge currentTWH
906010080008000403.7≤0.5C≤1C9.060.0101.0
106010080008000603.7≤0.5C≤1C10.060.5100.5
126010080008000403.7≤0.5C≤1C12.060.5101.0
937910480008000223.2≤0.5C≤1C9.679.5104.5
9379104Fe80008000223.2≤0.5C≤1C9.679.5104.5
