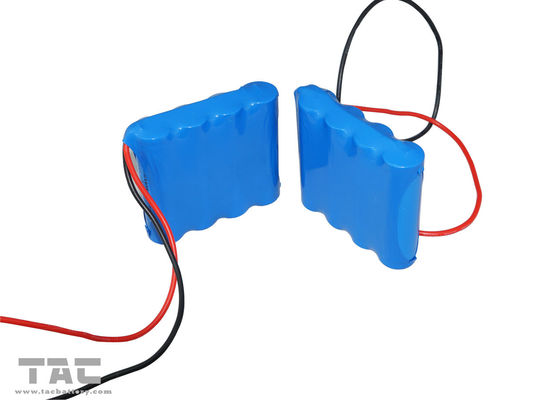

18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp

18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp

    • 18500 12V LiFePO4 Battery Pack  1AH With BMS for Street Light and Lamp
    • 18500 12V LiFePO4 Battery Pack  1AH With BMS for Street Light and Lamp
  • 18500 12V LiFePO4 Battery Pack  1AH With BMS for Street Light and Lamp

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: CE\ UN \UL for cell
    Model Number: IFR 18500 1000mAh battery pack

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: usd 3-4
    Packaging Details: 8 pcs in one box , 5 box in one carton
    Delivery Time: Sample with stock 3 days after T/T;Mass order with stock 7 days after T/T ;Mass order with stock 7 d
    Payment Terms: TT/ LC/ PAYPAL
    Supply Ability: 100000PCS EACH WEEK
    Contact Now
    Detailed Product Description
    PO NO: PIFP0610 Model: IFR18500 1000MAH 12.8V
    Capacity: 1000mah Voltage: 3.2-3.65v
    Pvc Color: Blue Pack: 4 Pcs Pack In Serier
    Warranty: 1 Year Circle Life: 2000 Times
    BMS: Including Application: VRLA/SLA Replacements



    18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp

     Base Data  for   18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp

     The battery pack can replace VRLA/SLA (Lead Acid) battery.

    Item

    General Parameter



    Remark

    Rated Capacity



    1.0Ah

    Standard discharge(0.5C)after standard charge(0.5C)



    Minimal Rated

    Capacity

    0.95Ah

    Nominal Voltage

    12.8V



    Cycle Life



    Higher than 60% of the Initial Capacity of the Cells

    Charge: CC@0.5C to 14.6V, then CV till current to 0.05C

    Rest: 30min.

       Discharge: 0.5C to 10.0V

       Temperature:20±5℃

       Carry out 800cycles

    Discharge cut-off voltage

    none

    No over-discharge protection,10.0V recommended

    Charging cut-off voltage



    none

    No over-charge protection,14.6V recommended

    Cell and assembly method



    IFR18500P-1.0AH

    4S1P

    Packing material

    PVC





    Capacity Test Method And Standard



       Continuous the table 1

    No.



    Item



    General Parameter

    Remark

    9

    Standard charge



    0.5C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C

    Charge time : Approx 3.5h



    10

    Standard discharge



    Constant current 0.5C

    Cut-off voltage 10.0V



    11

    Maximum Charge Current

    1.0A



    12

    Maximum Discharge Current



    1.0A

    The surface of the battery pack do not exceed 65℃

    13

    Operation Temperature Range



    Charge: 0~45℃

    60±25%R.H.



    Discharge: -10~50℃

    14

    Storage Temperature Range



    Less than 1 year : 0~25℃



    60±25%R.H.

    at the shipment state

    Less than 3 months:-5~35℃



    15

    Weight



    Approx: 40.0g±10.0g



    16

    Pack Dimension



    High:79mm

    max

    Width: 20mm

    Length: 70mm









    Features for LiFePO4 Battery Pack IFR26650 4S1P 12.8V 2300mAh For Solar Light

    1. High energy density than normal lithium-ion

    2. safest lithium raw material

    3. Wide range of operating temperature from 0 degree to 45 degree

    4. Stable operating voltage and current

    5. Long operating time and deep circle  2000 times

    6. Low self-discharge rate (less than 2% per year at 20°C).



    Main Applications :

    Power bank

    Laptop

    Flashlight

    E-V

    Electircal tool

    E shawer

    Lamp

    Solar Led Lighting

    18500 12V LiFePO4 Battery Pack  1AH With BMS for Street Light and Lamp

    Package Pictures

    1. each battery pack protected by bubble pack,and then one pack for each box
    2. 20 box for one carton
    3. Display box and OEM package is workable18500 12V LiFePO4 Battery Pack  1AH With BMS for Street Light and Lamp





    Accemble Structure:

    18500 12V LiFePO4 Battery Pack  1AH With BMS for Street Light and Lamp







    Other Model For Similar Type

    MODEL

    CAPACITY

    mAh

    IFR10120 35
    IFR10440 200
    IFR14430 300
    IFR14430 400
    IFR14430 500
    IFR14430 FLAT 450
    IFR14505 250
    IFR14505 300
    IFR14505 400
    IFR14500 FLAT 600
    IFR14505 600
    IFR15270 200
    IFR17335 450
    IFR18500 600
    IFR18500 800
    IFR18500 1000
    IFR18650 1000

    IFR18650

    HIGH POWER

    1100
    IFR18650 1200
    IFR18650 1500
    IFR26650 3000
    IFR26650 3300
