26650 12V LiFePO4 Battery Pack 27ah For Portable Power Device
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | IFR12.8V 27Ah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | usd 80-100 |
| Packaging Details: | 1pcs for one bag with UN38.3 |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | L/C, T/T, paypal |
| Supply Ability: | 1000units/days |
|
Detail Information |
|||
| PO NO: | PIFP0427 | Capacity: | 12.8V 27Ah |
|---|---|---|---|
| Voltage: | 12.8V-15.6V | Rated Capacity:: | 27AH |
| Type:: | LiFePO4 Lithium Battery | Size:: | T33:W295:H272mm |
| Weight:: | 3.6KG | OEM & ODM:: | Support |
| Pvc Color: | Blue | Warranty: | 1 Year |
| Cell: | IFR26650 3000MAH 3.2V | Assembled: | 4s9p |
| Highlight: | lithium iron phosphate battery pack,12 volt lithium battery |
||
Product Description
26650 12V LiFePO4 Battery Pack 27ah For Portable Power Device
Product Specification for 26650 12V LiFePO4 Battery Pack 27ah For Portable Power Device
| No. | Item | General Parameter | Remark |
| 1 | Rated Capacity | 27.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5) ( |
| 2 |
Minimal Rated Capacity |
25.0Ah | |
| 3 | Nominal Voltage | 12.8V | |
| 4 |
Cycle Life
|
Higher than 60% of the Initial Capacity of the Cells |
Charge: CC@0.2C to 14.6V, then CV till current to 0.02C Rest: 30min. Discharge: 0.2C to 10.0V Temperature:20±5℃ Carry out 2000cycles |
| 5 | Discharge cut-off voltage | 9.2V | 10.0V( recommended) |
| 6 | Charging cut-off voltage | 14.8V | 14.6V (recommended) |
| 7 | Cell and assembly method | IFR26650-3.0AH | 4S9P |
| 8 | Housing material | PVC |
The Charge and Discharge Performance And Measure Standard for 12v Lithium ion Battery
|
No |
Item |
General Parameter
|
Remark
|
| 9 |
Standard charge
|
0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.02C
|
Charge time : Approx 7h
|
| 10 |
Standard discharge
|
Constant current 0.2C Cut-off voltage 10.0V |
|
| 11 |
Maximum Charge Current
|
10A | |
| 12 |
Continuous Discharge Current
|
10A | |
| 13 |
Operation Temperature Range
|
Charge:0~45℃ |
60±25%R.H.
|
| Discharge: -10~60℃ | |||
| 14 |
Storage Temperature Range
|
Less than 1 year : 0~25℃
|
60±25%R.H. at the shipment state
|
|
Less than 3 months:-5~35℃
|
|||
| 15 |
Weight
|
Approx/: 3.60Kg | |
| 16 |
Max. Dimension
|
thickness/:33mm |
|
| Width/: 295mm | |||
| Length/272mm |
12v Lithium ion Battery Application
The Lifepo4 battery pack widely use in our daily life including of the toys and RC, Power tool, E-cigarette, E-bike, Robot, E-bike, Bright flashlight, headlights, Mobile medical equipment, digital camcorder, digital camera, e-book, household electrical appliances, and other equipment etc.
Packaging & Shipping
1. the battery protect the foam bag one by one and put it into 3 times outer pack
2. UPS / DHL / EMS/ FEDEX / TNT within 7 working days
3. The shipping cost is different in different country and weight ,we will choose the cheapest one for you always.
TAC Trade Terms:
Payment: T/T, PayPal for sample,small order);L/C
30% deposits,70% balance before deliverying(batch order).
Delivery Time: 7-10days(if the samples did have stock ),10-15days(base on small order),35-40days(for batch order)
MOQ: 50pcs
Features and Advantages of Lifepo4 Battery
- Excellent high and low temperature discharge performance . Nominal voltage 3.2V, 90% capacity output under the stable voltage
- Widely using temperature range, can be operated in -40°C~+60°C.
- Excellent storage life and reliability. With low self-discharge, selft-discharge rate≤5% monthly.
- Flexible design,also can make special design for customers.
- Long cycle life, more than 2000 charge/discharge cycles ( 80% capacity remained ).
- lithium batteries are environmentally friendly and pollutant free power, it's without mercury, cadmium,lead and other heavy metals.pass the REACH ROHS
Why chose us
- over 8 year professional manufacturer in lithium-ion battery Lifepo4 polymer lithium battery
- Low MOQ :we can agree with small quantity even 1 set samples and try our best to meet you business very well
- OEM ODM accepted :please send us you design, we can submit best solution not only for the battery cell but also BMS and specially wire or connector
- Good service :Quickly action and respond.Professional technology support
- Good quality :We are vendor for Varta Samsung
- Fast&safe delivery :strong export team, and export forward partner
Factory Certification
Full -automatic machine for TAC

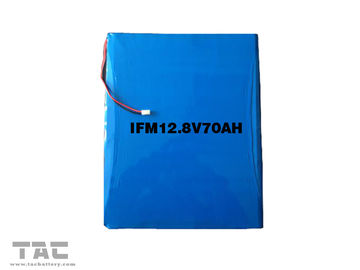

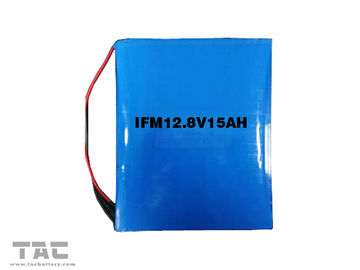

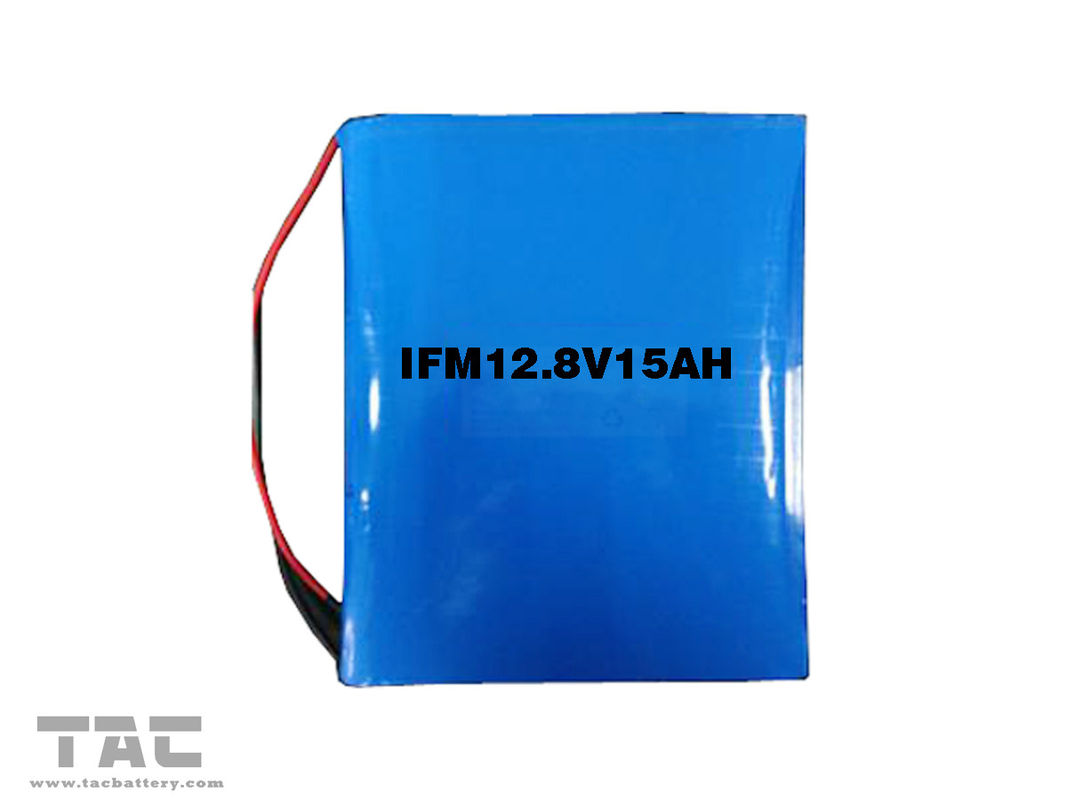

Similar Product Photo
