113AH 3.2V LiFePO4 Battery LPF42173205 For EV And ESS Prismatic Cell
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | LPF42173205 3.2V 113AH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | 10-100 each pcs |
| Packaging Details: | Follow UN38.3 Rule |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 pack for one week |
|
Detail Information |
|||
| Type: | Lifepo4 Battery | Appearance: | Prismatic Cell |
|---|---|---|---|
| Capacity: | 113ah | Voltage: | 3.2v |
| Circle Life: | 2000 Times | Warranty: | 1 Year |
| Size: | 4.2*173*205mm | Shell: | Metal |
| Highlight: | lifepo4 battery pack,lifepo4 rechargeable batteries |
||
Product Description
LiFePO4 Battery Prismatic Cell LPF42173205 3.2V 113AH For EV and ESS
Feature for LiFePO4 Battery Prismatic Cell LPF42173205 3.2V 113AH For EV and ESS
- Super Long Working life: Over 2000cycles, 4 times more than that of lead-acid battery.
- For high Temperature: Good working performance under 70℃.
- Super safe:under 150℃ for 30 minutes,no fire, no explosion.
- Light Weight Deep Cycle Lithium Battery Pack
Specification for LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS
| NO. | Item | Specification | Remark |
| 1 | Nominal Capacity | 113Ah |
0.2C, CC(constant current)discharge to 2.0V cut off, at 23±3℃ |
| 2 | Nominal Voltage | 3.2V | |
| 3 | Standard Charging Current | 0.2C |
0～45℃0.2CCC(constant current)charged to 3.6V,then CV(constant voltage 3.6V)charge till charge current ≤0.02C |
| 4 | Max. Charging Current | 1.0C | |
| 5 | Charge Ending Voltage | 3.6V | |
| 6 | Standard Discharging Current | 0.2C |
0.2CCC(con constant current)discharged to 2.0V |
| 7 | Max. Continual Discharging Current |
2.0C | |
| 8 | Discharge Ending Voltage | 2.0V | |
| 9 | Standard Charging Time | 5～6h | |
| 10 | Rapid Charging Time | 1～2h | |
| 11 | Production Impedance | ≤80mΩ | AC Impedance 1KHz |
| 12 | Battery Weight | ≤ 235g | No include box |
| 13 | Volumetric Energy | ～264Wh/l | |
| 14 | Gravimetric Energy | ～136Wh/Kg |
Specially Packing Detail
8-10 pcs put in plastic tray, , 10 trays shrink together to avoid short circle and vibration
Application for LiFePO4 Battery Square Cell
Solar energy storage,Home wall ,home storage ,E-vehicle products.
solar street light,wind energy storage ,UPS
telecommunication power supply, photo voltaic power station

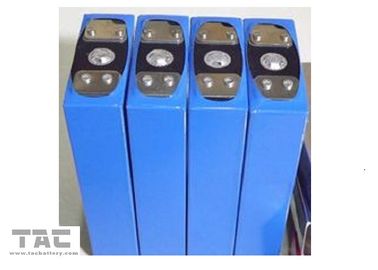

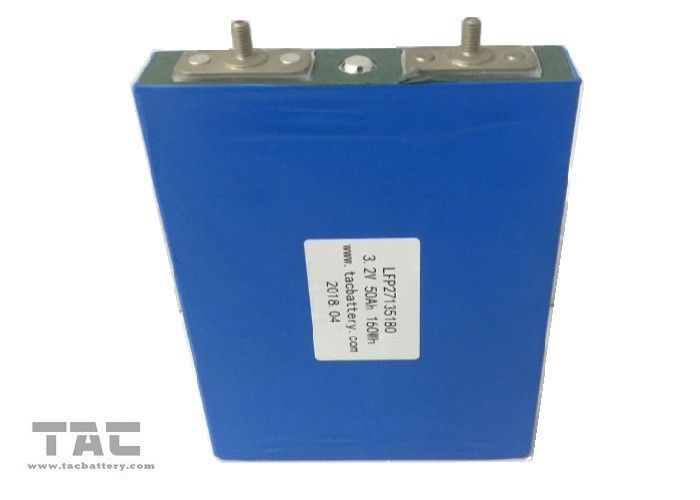

Picture for Singer Cell

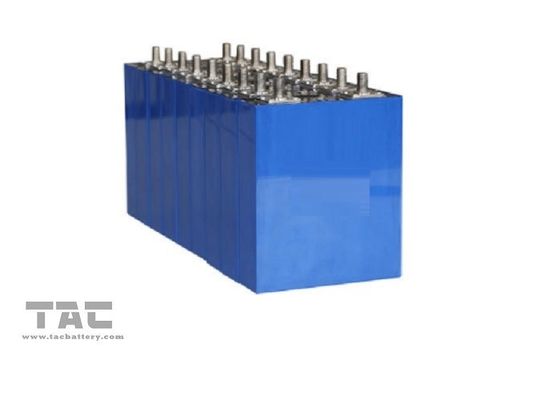

The single cell were assembled to various battery pack
More Detail For Lifepo4 Battery
| MODEL | CAPACITY | VOLTAGE | mΩ≤ | T | W | l |
| F7050125TP-2900 | 2900 | 3.2 | 2.4 | 6.94 | 50.19 | 126.89 |
| F8054106SP-3000 | 3000 | 3.2 | 2.3 | 7.88 | 53.87 | 104.99 |
| F706094-3000 | 3000 | 3.2 | 3.5 | 6.6 | 58.4 | 94.58 |
| F6567102TP-3000 | 3000 | 3.2 | 2 | 6.31 | 67.17 | 103.56 |
| F134295SP-3300 | 3300 | 3.2 | 2 | 12.32 | 42.05 | 96.97 |
| F9044130TP-3300 | 3300 | 3.2 | 2.2 | 8.16 | 44.4 | 130.61 |
| F7264110TP-3500 | 3500 | 3.2 | 2.2 | 7.41 | 64.95 | 112.51 |
| F7567102TP-3500 | 3500 | 3.2 | 2 | 7.28 | 66.86 | 103.06 |
| F106094TP-3600 | 3600 | 3.2 | 2.2 | 9.23 | 59.18 | 94.48 |
| F8367102TP-3700 | 3700 | 3.2 | 2.0 | 7.65 | 67.25 | 103.7 |
| F9045145TP-4000 | 4000 | 3.2 | 2 | 8.79 | 44.73 | 144.83 |
| F9567102TP-4300 | 4300 | 3.2 | 2 | 8.85 | 66.97 | 102.38 |
| F7075130HP-4600 | 4600 | 3.2 | 3 | 6.47 | 73.86 | 130.77 |
| F1167102TP-5000 | 5000 | 3.2 | 2 | 10.29 | 66.88 | 104.08 |
| F6884165TP-6000 | 6000 | 3.2 | 2 | 6.36 | 83.41 | 166.05 |
| F76100115HP-6000 | 6000 | 3.2 | 2.5 | 7.1 | 98.75 | 116.08 |
| F1257130HP-6100 | 6100 | 3.2 | 2.5 | 11.09 | 56.12 | 130.48 |
| F7284165TP-6500 | 6500 | 3.2 | 2.2 | 6.97 | 83.41 | 164.65 |
| F9570170TP-7000 | 7000 | 3.2 | 2.0 | 8.8 | 70.49 | 171.62 |
| F9084165TP-8000 | 8000 | 3.2 | 1.8 | 8.42 | 83.37 | 166.38 |
| F8590150HP-8000 | 8000 | 3.2 | 2 | 7.87 | 88.62 | 150.41 |
| F1284165SP-10000 | 10000 | 3.2 | 2 | 10.85 | 84.46 | 165.75 |
| F95130140HP-12000 | 12000 | 3.2 | 1.8 | 8.66 | 129.73 | 140.73 |
| F65160220-17000 | 17000 | 3.2 | 2.5 | 5.96 | 158.07 | 219.03 |
Tac Battery Production Line

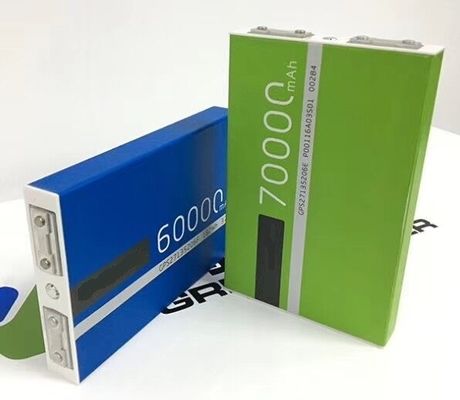

If you need seeking for pouch 3.2V liFePO4 cell , pls check below
