Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054

Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054

  • Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054
  • Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054
  • Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054
Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054
Product Details:
Place of Origin: SHENZHEN
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: IFR32650 24V 30AH
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: usd 220-250
Packaging Details: 1pcs for one bag with UN38.3
Delivery Time: 7-25 days after order confirm
Supply Ability: 50000 per months
Contact Now
Detailed Product Description
Type: Lifepo4 Battery Pack Voltage: 24v
Capacity: 30ah Circle Life: Over 2000times
Warranty: 12 Months Single Cell: Ifr32700 3.2v 6ah
Bms: Involve Housing: With Or Without By Customer's Require
PO NO: PIFP0996 Connector: Customize
High Light:

lifepo4 battery pack

,

lithium iron phosphate battery pack

Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054

Battery Specification for Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054

Its for telecom cyclic application working as energy storage in a hybrid solution


Solar Battery Cell Model GLP20Ah-70170240
Capacity(0.5C) 20Ah
rated voltage(V) 3.2V
Typical Impedance (mΩ) ≤2 mΩ
Battery material LiFePO4
Solar Battery Pack Combination method 3P4S
Minimal capacity 60Ah
Nominal voltage 12.8V
Max. charge voltage 14.6V
Discharge cut-off voltage 9V-10V
Max charge current (0.5C)30A
Max working current (1C)60A
Standard charge current (0.3C)18A
Standard discharge current (0.5C)30A
Weight (Approx.) ≈6.5Kg
Max. dimension(L×W×H)(mm) ≤90*176*270


Operating temperature

Charge temperature 0℃~45℃
Discharge temperature -20℃~55℃



Application

1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment.


Package

Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054 0

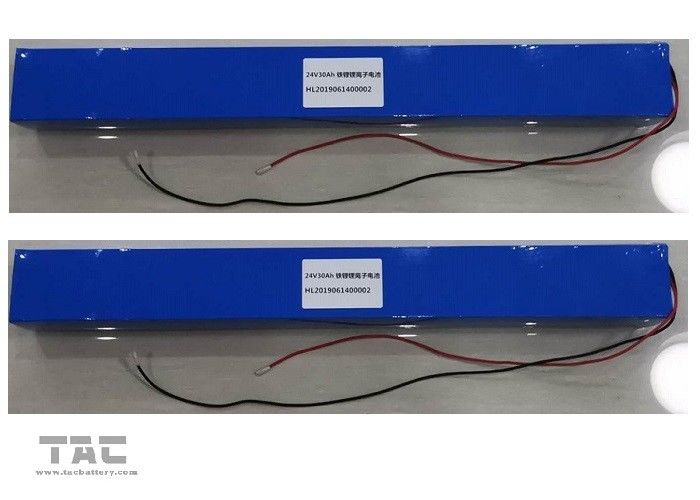

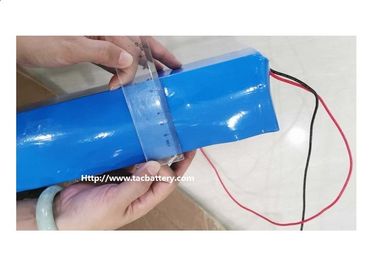

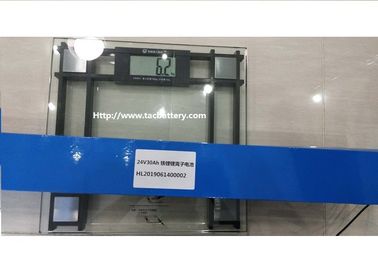

Battery Photos

Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054 1

Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054 2


Drawing for Battery Pack

Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054 3



Certification

Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054 4


Factory Picture

Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054 5

Solar Lighting LifePO4 Battery Pack 24V 30AH With UL2054 6
