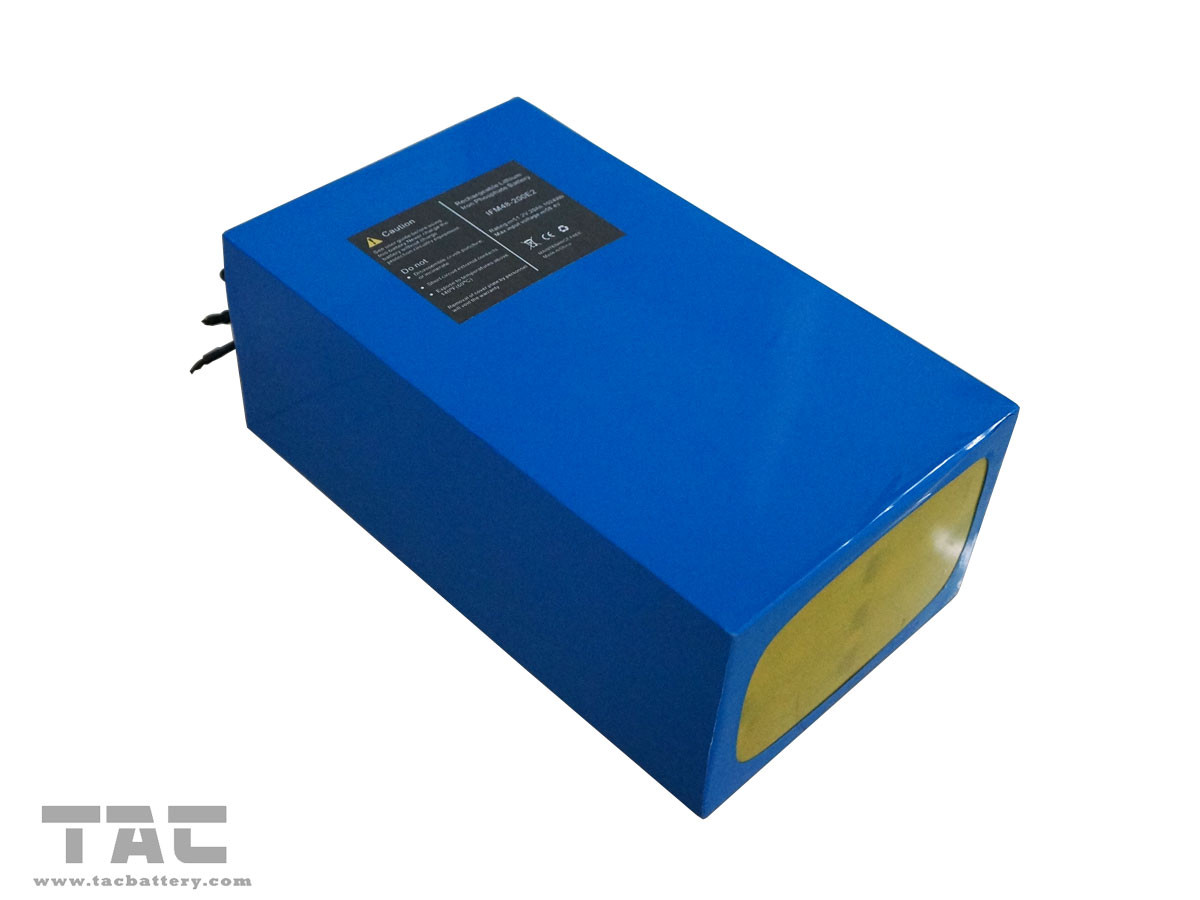

High Capacity Electric Bike Battery Pack 48v 20ah For Electric Vehicle

High Capacity Electric Bike Battery Pack 48v 20ah For Electric Vehicle

    • High Capacity Electric Bike Battery Pack 48v 20ah For Electric Vehicle
    • High Capacity Electric Bike Battery Pack 48v 20ah For Electric Vehicle
  • High Capacity Electric Bike Battery Pack 48v 20ah For Electric Vehicle

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UL,ROHS
    Model Number: PIFP0133

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: usd 200-500
    Packaging Details: 1pcs/carton
    Delivery Time: 14Days after order confirm
    Payment Terms: TT, LC, Paypal, etc
    Supply Ability: 100Piece/days
    Contact Now
    Detailed Product Description
    Material: Lifepo4 Capacity: 50ah
    Voltage: 48v Cirle Life: 1200times
    Cell Inside: IFR26650 3300MAH PACK: Blue Pvc
    Wire: With Customer Require Connector: With Customer Require


    High Capacity Electric Bike Battery Pack 48v 20ah For Electric Vehicle

    Quick Detail:

    1. Rated Capacity: 20Ah; Nominal Voltage: 48V
    2. Application for Electric Boat, Car, Motorcycle,E-bike and so on.
    3. Have a long cycle life about 2000 times.
    4. High quality and the good price


    Specification:



    No.

    Item

    General Parameter

    Remark

    1

    Rated Capacity

    20Ah

    Standard discharge(0.2 C5)after standard charge(0.2 C5)

    2

    Minimal Rated Capacity

    18Ah

    3

    Nominal Voltage

    48V

    16S

    4

    Cycle Life

    Higher than 60% of the Initial Capacity of the Cells

    ◆Charge: CC@0.2C to 58.4V, then CV till current to 0.05C

    ◆Rest: 30min.
    ◆Discharge: 0.2C to 36.8V
    ◆Temperature:20±5℃
    ◆Carry out 2000cycles

    5

    Discharge cut-off voltage

    36.8V

    36.8V( recommended)

    6

    Charging cut-off voltage

    58.4V

    58.4V (recommended)

    7

    Cell and assembly method

    IFR26650EC-3.3AH

    16S6P

    8

    Housing material

    PVC



    9

    Standard charge

    0.2C constant current(CC) charge to 58.4V,then constant voltage (CV)58.4V charge till charge current decline to ≤0.05C

    Charge time : Approx 7h

    10

    Standard discharge

    Constant current 0.2C

    Cut-off voltage 36.8V



    11

    Maximum Charge Current

    15A



    12

    Max Discharge Current

    40A



    13

    Operation Temperature Range

    Charge: 0~45℃

    60±25%R.H.







    Discharge: -10~60℃



    14

    Storage Temperature Range

    Less than 1 year : 0~25℃

    60±25%R.H.

    at the shipment state





    Less than 3 months:-5~36.8℃



    15

    Weight

    Approx: 8.8Kg



    16

    Max. Dimension

    Height:280mm









    Width: 164mm







    Length: 130mm





    Structure:
    High Capacity Electric Bike Battery Pack 48V 20Ah for Electrocar








    High Capacity Electric Bike Battery Pack 48v 20ah For Electric Vehicle







    High Capacity Electric Bike Battery Pack 48v 20ah For Electric Vehicle










    Application:

    High Capacity Electric Bike Battery Pack 48V 20Ah for Electrocar, Electric Boat, Motorcycle, E-bike and so on




    Safety Performance  for Single Cell



    Tac single cell passed the UN38.3 Certification to keep the safe perofrmance of battery pack.



    No. Items Test Method and Condition Criteria
    1 Overcharge (3C/10V) Charge the cell with current of 3C, till the voltage of the cell reach 10V and current reduce to 0A. Monitor the variation of the cell’s temperature in the process of the test. Stop the test when the temperature of the cell falls to value 10ºC lower than the peak value.

    No explosion

    No fire

    2

    Over

    Discharge

    Charge: 1C CC to 3.65V and CV to 0.05C cut off, Discharge the cell with 1C current for 2.5 hours.

    No explosion

    No fire No leakage

    3 Nail test Charge: 1C CC to 3.65V, and CV to 0.05C cut off, Standby for 1 hour, then measure OCV, A nail is penetrated vertically through the center of the cell and left for over 1h. The diameter of the nail is 2.5~3.5 mm.

    No explosion

    No fire

    4

    Short test

    (25°C)

    The battery to be fully charged with standard charging condition, and short the positive and negative terminals for 4 hrs with wire resistance = 30mOhm at 25°C.

    No explosion

    No fire

    5

    Short test

    (55°C)

    The battery to be fully charged with standard charging condition, and short the positive and negative terminals for 4 hrs with wire resistance = 30mOhm at 55°C.

    No explosion

    No fire

    6

    Heating test

    (130°C)

    The battery to be fully charged with standard charging condition, and put into the chamber for heating at 130°C / 30mins.

    No explosion

    No fire
