32700 12V 24AH LiFePO4 Battery Pack For Replace Lead Acid Battery
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | TAC OEM ODM |
Certification: | MSDS REACH ROHS |
Model Number: | IFR32700 12.8V 24AH |
Payment & Shipping Terms:
Minimum Order Quantity: | 50 PCS |
---|---|
Price: | usd 50 |
Packaging Details: | 1pcs for one bag with UN38.3 |
Delivery Time: | 7-25 days after order confirm |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 set per day |
Detail Information |
|||
Type: | LiFePO4 Battery | Capacity: | 24AH |
---|---|---|---|
Voltage: | 12.8v | Size: | 165*125*175mm |
Weight: | 2.8kgs | Circle Life: | 2000 Times |
High Light: | 32700 LiFePO4 Battery Pack,12.8v LiFePO4 Battery Cell |
Product Description
32700 12V 24AH LiFePO4 Battery Pack For Replace Lead Acid Battery
Specification for 32700 12V 24AH LiFePO4 Battery Pack For Replace Lead Acid Battery
No. | Items | Specifications |
Remark
|
|
1 |
Capacity for assembled cell discharging by 0.2C
|
≥24Ah |
Standard discharging method
|
|
2 |
Battery Voltage
|
12.8-13.2V
|
Delivery voltage, Within 10 days from Factory
|
|
3 |
Standard charge condition
|
Charge with 0.2C constant current and 14.6Vconstant voltage, charge to 14.6V continue charging till current declineto ≤0.01C
|
Charge voltage: 14.6V±0.02V Charge current:0.2C
|
|
4 |
Maximum charge current
|
|
12A |
For continuous charging mod
|
5 |
Maximum discharge current
|
|
24A |
For continuous discharge mod
|
6 |
Standard discharging method
|
0.2C constant current discharge to 8V, |
||
7 |
Internal Impedance
|
Assemblage Impedance
|
Measure two sides of the drawing line after assembling.
|
|
8 | size | 165*125*175mm | PACK with housing |
NO. | Items | Units:mm | |
1 | Length | L | MAX165mm |
2 | Width | W | MAX125mm |
3 | Height | H | MAX175mm |
Maybe you are interested in below similar model 12.8v 24ah /26ah /30ah
photo voltage size capacity cell price weight(kgs)

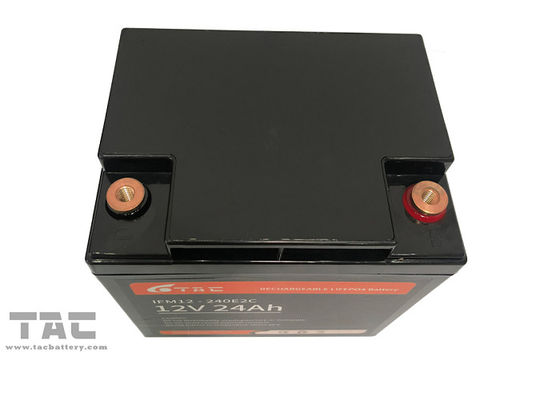

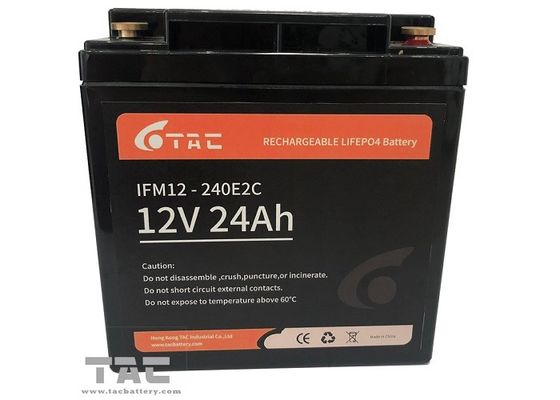

Battery Pack Photos
Period of Warranty
The period of warranty is One year from the date of shipment. TAC guarantees to give a replacement in case of cells with
defects proven due to manufacturing process instead of the customer abuse and misuse.
Storage of the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.
Factory Show
