24V 20Ah High Rate LiFePO4 Battery Pack For Pump with Outer Shell
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | TAC OEM ODM |
Certification: | MSDS REACH ROHS |
Model Number: | PIFP0530 |
Payment & Shipping Terms:
Minimum Order Quantity: | 50 PCS |
---|---|
Price: | usd 380-400 |
Packaging Details: | 1pcs for one bag with UN38.3 |
Delivery Time: | 7-25 days after order confirm |
Payment Terms: | TT/Paypal |
Supply Ability: | 1000 unit/month |
Detail Information |
|||
Material: | Lifepo4 Battery Pack | Capacity: | 20ah |
---|---|---|---|
Voltage: | 12v | Circle Life: | 1200times |
Plastic Shell: | ABS+PC Housing | Size For Pack: | 183*130*195mm |
Weight: | 5.5kgs | Warranty: | 12 Mohths |
Color: | Blue | Oem: | Workable |
High Light: | lithium iron phosphate battery pack,12 volt lithium battery |
Product Description
24V 20Ah High Rate LiFePO4 Battery Pack For Pump with Outer Shell
24V 20Ah High Rate LiFePO4 Battery Pack For Pump with Outer Shell
The Feature Of 24V 20Ah High Rate LiFePO4 Battery Pack For Pump with Outer Shell
-
The rate capacity is 20Ah,and the minimal rate capacity is 19Ah.
-
The standar voltage is 24V
-
Outside with the plastic shell,and the size is 183*mm130mm*195mm
-
With wide application,for pump,motor and so on
-
Deep Circle : Long life 1200times
Specification For 24V 20Ah High Rate LiFePO4 Battery Pack For Pump with Outer Shell
No. |
Item |
General Parameter |
Remark |
1 |
Rated Capacity |
20.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5) |
2 |
Minimal Rated |
19.0Ah | |
3 |
Nominal Voltage |
25.6V | |
4 |
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 29.2V, then CV till current to 0.05C ◆Rest: 30min. |
5 |
Discharge cut-off voltage |
20.0V |
20.0V( recommended) |
6 |
Charging cut-off voltage |
29.2V |
29.2V (recommended) |
7 |
Cell and assembly method |
IFR26650EC-3.3AH | 8S6P |
8 |
Housing material |
ABS+PC housing |
Charge And Discharge Performance
9 |
Standard charge |
0.2C constant current(CC) charge to 29.2V,then constant voltage (CV)29.2V charge till charge current decline to ≤0.05C |
Charge time : Approx 7h |
10 |
Standard discharge |
Constant current 0.2C |
|
11 |
Maximum Charge Current |
10A | |
12 |
Continuous Discharge Current |
20A | |
13 |
Operation Temperature Range |
Charge: 5~45℃ |
60±25%R.H. |
Discharge: -10~60℃ | |||
14 |
Storage Temperature Range |
Less than 1 year : 0~25℃ |
60±25%R.H. |
Less than 3 months:-5~35℃ |
|||
15 |
Weight |
Approx: 5.5Kg | |
16 |
Max.Dimension |
High:183mm |
|
Width: 130mm | |||
Length: 195mm |
Application Area
- Energy Storage: UPS , backup ,power station.
- EV and E car Wagon : Golf trolleys , Electric scooters .
- Solar System,Wind Energy Storage,Home wall, Solar Street Light
- Standtard 4UTelecommunications Base Stations
- 12v 36v 48v UPS(Uninterrupted Power Supply)
- Portable Energy Storage System
Normall packaging :

Lead Time

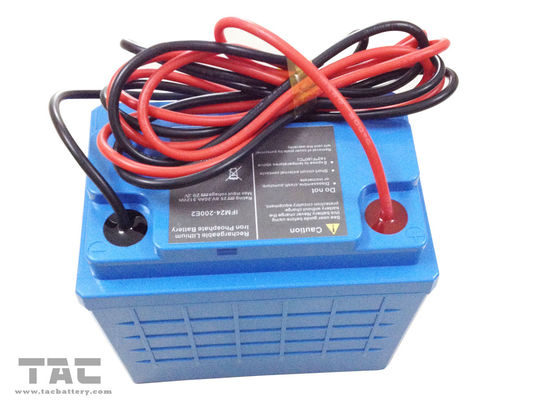

The Pictures of Battery Pack
