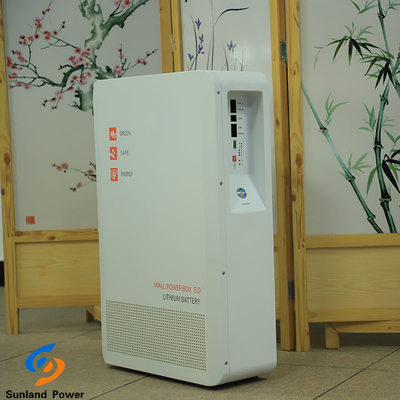

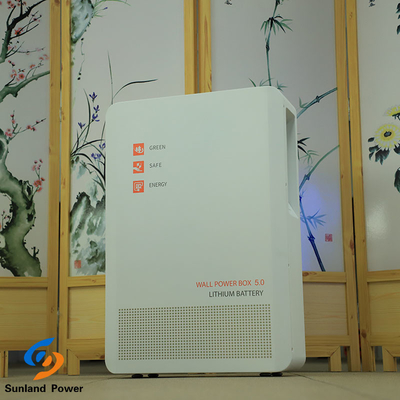

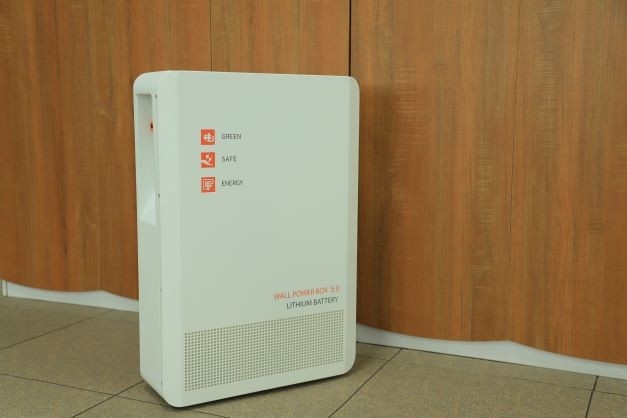

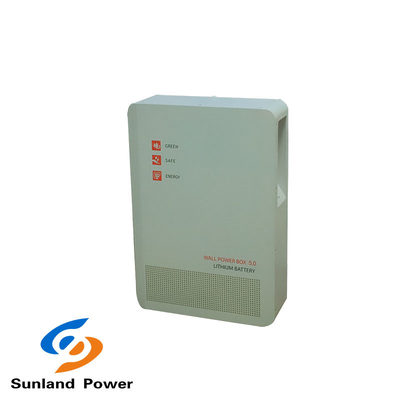

48V 100AH 5KWH Battery Energy Storage System Wall Power Box 5.0
Product Details:
| Place of Origin: | China |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | Wall Power Box 5.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 PCS |
|---|---|
| Price: | US$5,000-10,000 |
| Packaging Details: | 1pcs each carton |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | TT, LC, Paypal, etc |
| Supply Ability: | 100Piece/days |
|
Detail Information |
|||
| Model Name:: | Wall Power Box 5.0 | Rated Voltage: | 48V 100AH |
|---|---|---|---|
| Voltage Range: | 45～54.7VDC | Rated Energy: | 5.12KWH |
| Weight: | 65kg | Circle Life: | 2000 Times |
| Warranty: | 1 Year | ||
| High Light: | 5KWH Battery Energy Storage System,100AH Battery Energy Storage System |
||
Product Description
5KWH Energy storage System Wall Power Box Lithium Battery Pack
Features for 5KWH Wall Power Box Energy storage System Lithium Battery Pack
1. 5kwh Distributed Micro-grid Energy storage Systemfor PV solar energy storage
2. Parallel mode for multiple machine:centralized or independent.
3. Centralized mode:using single or greater capacity battery system and additionally,provide backup power and PV surplus energy storage to multiple grid-connected invert er.
4. Distributed micro-grid can be achieved through combining energy storage system and PCS.
5. The flexible operation mode of distributed micro-grid improves the energy supply reliability on user side.
Quick Detail:
| NO. | Item | Specification | Remark |
| Place of Origin: | China | Brand Name: | TAC |
| Model Name: | Wall Power Box 5.0 | Capacity: | 100AH |
| Rated Voltage/ Capacity | 48V/100Ah | Rated Energy | 5.12KWh |
| Voltage Range | 45～54.7VDC | Display | LED light |
| Dimensions(W*H*D) | Weight | 65kg |
5KWH Wall Power Box Energy storage System Specification:
|
Parameters |
Wall Power Box 5.0 |
|
Battery Type |
Li-Ion |
|
Rated Voltage/ Capacity |
48V/100Ah |
|
Rated Energy |
5.12KWh |
|
Usable Capacity (80%DOD) |
4.1KWh |
|
Voltage Range |
45～54.7VDC |
|
Rated Discharge Current |
100A |
|
Max. Discharge Current |
120A |
|
Standard Charge Current |
60A |
|
Max.Charge Current |
100A |
|
Operating Temperature |
charge:0°C ~40°C； |
|
Discharge -20°C~40°C; |
|
|
Storage Temperature |
-20°C~50°C |
|
Ambient Humidity |
Max. 90[%Rh] *Non Condensing |
|
Expected Lifetime (25°C/+77°C) |
＞5 Years |
|
Cycle life (80% DOD, 25°C/+77°C) |
＞2000Cycles |
|
Max. operating altitude |
2000m |
|
Dimensions(W*H*D) |
|
|
Weight |
65kg |
|
Color |
White/Black(customized) |
|
Protection degree |
IP20 |
|
Cooling |
Fan |
|
Noise emission |
<40dB |
|
Display |
LED light |
|
Interface |
RS232,RS485 |
