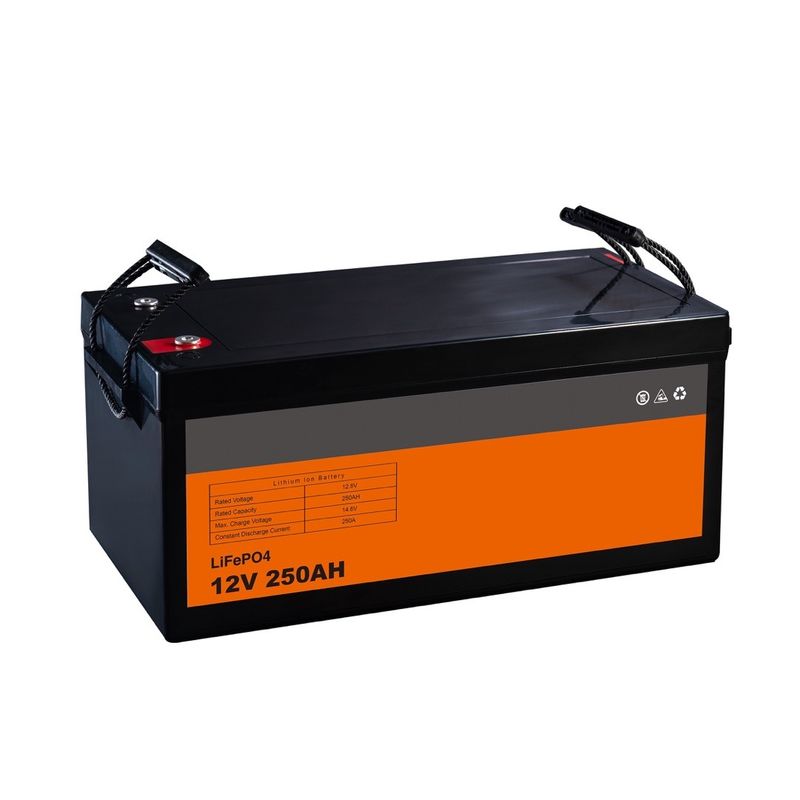

• 12V250AH Lithium Lifepo4 Battery, Deep Cycle Batteries Built-In 200A BMS
12V250AH Lithium Lifepo4 Battery, Deep Cycle Batteries Built-In 200A BMS

12V250AH Lithium Lifepo4 Battery, Deep Cycle Batteries Built-In 200A BMS

Product Details:

Place of Origin: GUANGZHOU
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: 12V 250AH

Payment & Shipping Terms:

Minimum Order Quantity: 50 PCS
Price: usd 482
Packaging Details: 10pcs for one carton
Delivery Time: 7-25 days after order confirm
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 per week
Get Best Price Contact Now

Detail Information

Type: LiFePO4 Battery Pack Voltage: 12V
Voltage: 12.8-13.2V Size: 490*171*240mm
Capacity: ≥201.6Ah Maximum Discharge Current: 150A
Net: 23Kg

Product Description



12V250AH Lithium Lifepo4 Battery, Deep Cycle Batteries Built-In 200A BMS





About this item:

  • 【Deep Cycle & Long longevity】 How is the longevity of this battery? If not charged to 100% and not discharged to 0%, leaving about 10% on charge and discharge, LiFePO4 battery life can be recycled up to 4000-8000 times and lives up to 10 years. Just be sure to get a battery charger specifically designed for lithium iron phosphate batteries.
  • 【Automatic BMS and Quickly Charge】 Compared to other chemistries, LiFePo4 offers higher energy density, more stability at higher temperatures, and better performance, making the batt charge quickly, discharge flatly, and last longer. Our battery built-in BMS protects it from overcharge, deep discharge, overloading, overheating and short circuit, and low self-discharge rate ensuring up to one 1-year maintenance-free.
  • 【Uncompromising Quality】 State-of-the-art battery cells ensure a lifespan of more than 5000 cycles, 150A continuous discharge current, and a wide operating temperature range.




Battery specifications:



No. Items Specifications



Remark





1



Capacity for assembled cell

discharging by 0.2C



≥202AH



Standard discharging method





2

Battery Voltage





12.8-13.2V









Delivery voltage, Within 10 days from Factory







3







Standard charge condition









Charge with 0.2C constant current and 14.6Vconstant voltage, charge to 14.6V continue charging till current declineto ≤0.01C





Charge voltage: 14.6V±0.02V

Charge current:0.2C



4



Maximum charge current









150A





For continuous charging mod





5



Maximum discharge current







150A



For continuous discharge mod





6



Standard discharging method





0.2C constant current discharge to 8V,







7



Internal Impedance





Assemblage Impedance







Measure two sides of the drawing line after assembling.

.



8


Net


23Kg



12V 250Ah Lithium Lifepo4 Battery

  • Very high service life: from 3000 cycles to several ten thousand
  • Possible deep discharges (up to 100%)
  • Completely secure Lithium Iron Phosphate technology (no risk of explosion or self-ignition)
  • BMS (Battery Management System) integrated into the case: maximizes the life and secures the battery
  • No lead, no rare earths, no acid, no degassing
  • Calendar life > 10 years
  • Excellent temperature resistance (-20 °C to +60 °C)
  • Flexible system: up to 16 packs in parallel and 4 in series
  • Constant power throughout the discharge (low internal resistance)
  • Very low Peukert losses (energy efficiency >98%)
  • Very low self-discharge (<3% per month)
  • No memory effect
  • Weight gain > 50% and 40% less footprint compared to lead-down batteries
  • Certification: CE, RoHS, UL.

12V250AH Lithium Lifepo4 Battery, Deep Cycle Batteries Built-In 200A BMS 0

Safty performance:





No.

Items



Test Method and Condition





Criteria



1

Thermal exposure test





Each fully charged cell, stabilized at room temperature, is placed in a circulating air-convection oven. The oven temperature is raised at a rate of 5 °C/min ± 2 °C/min to a temperature of 130 °C ± 2 °C. The cell remains at this temperature for 10 min before the test is discontinued.



No fire, No explosion



2

Low pressure





Each fully charged cell is placed in a vacuum chamber, in an ambient temperature of 20~25℃. Once the chamber has been sealed, its internal pressure is gradually reduced to a pressure equal to or less than 11.6 kPa (this simulates an altitude of 15240 m) held at that value for 6 h.



No leakage, No fire, No explosion



3.

Short test





The fully charged battery is to be short-circuited by connecting the positive and negative terminals of the battery with resistance load not exceed 100mΩ. Tests are to be conducted at room temperature 20~25℃.



No fire, No explosion

The Temperature of the Battery surface not exceeded than 150℃



4



Over Discharg







(After standard charge. Cells are discharged at constant Current of 0.2C to 2.0V, and the positive and negative terminal is connected by a 30Ω wire for 24 hours. Cell Condition: Fresh, Fully charged cell.)



No fire, No explosion

5

Over charge test





After standard charge, continue to charge with a constant voltage 4.8V per a cell, holding 8h.



No leakage, No fire, No explosion



6

Soak Test





Put the batteries into clean water, be soaked for 24 hours.



No break, No fire







Caution:



Risk of Fire , Explosion or Burns

DO NOT Short circuit
DO NOT Reverse connections from charger to battery

DO NOT Disassemble
DO NOT Throw into fire or incinerate

DO NOT Heat above 70C
