TAC-BMS-16S100A-20A16s Battery Electronic Component For 18650 Battery Pack -20-75℃ Storage Humidity
Product Details:
| Brand Name: | TAC |
| Certification: | UL |
| Model Number: | 16S100A-20A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | usd50$ |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 per week |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Protection Plates: | 16S200A-20A |
|---|---|---|---|
| Battery Type: | Alkaline Battery | Series No: | 16S |
| Switch: | Yes | The Discharge Rate: | 100A |
| He Charging Ratio: | 100A | Charging Limited: | Yes |
| Communication: | RS485/CAN | Blue Tooth: | Support |
| High Light: | TAC-BMS-16S100A-20A16s Battery Electronic Component,18650 Battery Electronic Component |
||
Product Description

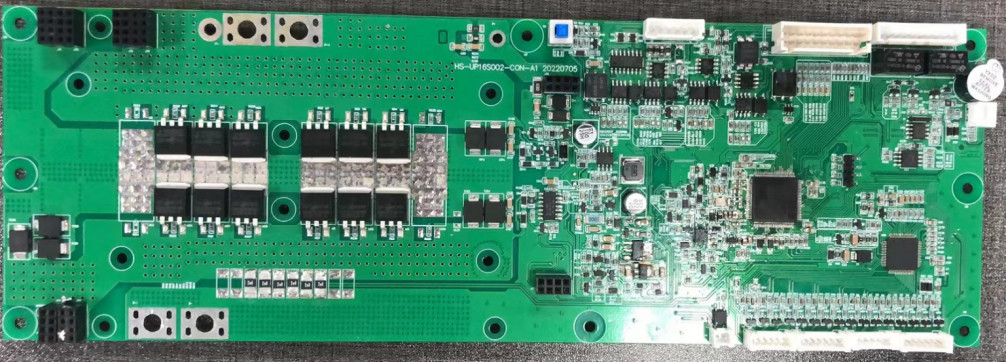

TAC-BMS-16S100A-20A16s For 18650 Battery Pack,-20-75℃ Storage Humidity
1. Functional Features
High-integrated analog front-end Adjustable overcurrent protection
Isolation of the power supply circuit Has a variety of dormancy and awakening modes
Integrated serial port IC Low power consumption
High Voltage Accuracy (≤10mV) RS485 Communication
High Current Accuracy (≤2%@FS) Adjustable Parameter Settings
4-Way Battery Temperature Detection (≤2°C) Data Refresh Interval (Period) ≤ 2 Seconds
SOC Estimation Function LED Status Indication Function
SOH Estimation Function Charge Equalization Function
Short Circuit Protection Function SOC Accuracy (≤5% @ 50% Capacity Range Or More)
2. Functional Block Diagram
3. Environmental Requirements
| Projects | Parameters | Unit |
| Operating Temperature | -20 to 75 | ℃ |
| Storage Temperature | -40to 75 | ℃ |
| Operating Humidity |
95(45℃±2℃) |
%RH |
| Storage Humidity |
95(45℃±2℃) |
%RH |
| Temperature Measurement | -40 to 125 | ℃ |
| Atmospheric Pressure | 70~106 | kPa |
4. Electromagnetic compatibility
4.1 Electrostatic discharge of disturbance immunity:
Meet the requirements of GB / T 17626.2-2018 grade 4, contact 8KV and air 15KV; work normally after test.
4.2 Transmission of harassment limits:
Meeting the conduction harassment limit shall meet the requirements of Table 8 (quoted from Article 5.1 in GB 9254-2008); it shall work normally after the test.
4.3 Radiation harassment limits:
Meeting the radiation disturbance limits shall meet the requirements of Table 9 (quoted from Article 6.1 in GB 9254-2008); working normally after the test.
4.4 Surge (shock) disturbance resistance:
The communication port and the power supply port shall adopt the corresponding isolation measures, and the communication port line alignment shall meet the GB / T 17626.5-2019 grade 2 (open circuit test voltage for 0.5kV), the line to ground shall meet the requirements of GB / T 17626.5-2019 grade 2 (open circuit test voltage: 1kV); the power port line shall meet GB / T.
The requirements of 17626.5-2019 grade 4 (open circuit test voltage 2kV), and the line alignment shall meet the requirements of GB / T 17626.5-2019 grade 4 (open circuit test voltage 4kV).
5. Install connection instructions:
There are strict sequence requirements on the protection board. First weld B-, P-, B +, P +, and plug in the battery sampling line connector in order from low to high. After power on, charge or button activation. Load or charger can be added after all cables are installed.
When removing, first unplug the charger or load, remove the battery sampling line connector in the order from high to low, and finally remove B +, P +, B-and P-.
6. Display size diagram
7. Precautions for use:
1) When connecting the battery lead, note not to misconnect or reverse connect. If the wrong lead is connected, it may cause damage to this circuit board, which should be re-tested again before use.
2) When assembly, the protective plate is careful not to directly contact the surface of the cell to avoid damage to the cell. Ensure the assembly.
3) In the process of use, pay attention to the lead head, soldering iron, solder and other components do not touch the components on the circuit board, otherwise it may lead to damage to the protection board.
4) The use process should pay attention to anti-static, moisture-proof, waterproof and other measures.
5) Please follow the designed parameters and the conditions of use during the use process, and do not exceed the relevant values in this specification, otherwise it may lead to damage to the protection plate.
6) After combining the battery pack and the protection panel, if there is no voltage output or no charge for the first time, please re-check whether the wiring is correct.
