IFR40135 4S1P 12V 20AH LiFePO4 Battery Pack Explosion Proof For Hazardous Area Oil Gas Pharmasutricals
Product Details:
| Place of Origin: | GUANGZHOU |
| Brand Name: | Sunland |
| Certification: | MSDS,UN38.3,REACH ROH,IEC60079-0 |
| Model Number: | IFM12-20E2C-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | USD100 |
| Packaging Details: | 5pcs per cartons |
| Delivery Time: | 20 to 25 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS per month |
|
Detail Information |
|||
| Material: | LiFePO4 Battery | Nornimal Voltage: | 12.8V |
|---|---|---|---|
| Normal Capacity: | 20AH | Battery Pack: | 3.2V IFR40135 4S1P |
| Case: | Metal | Dimension: | 187mm*176mm*50mm |
| Max Continuous Working Current: | 20A | BMS: | Pass UL |
| High Light: | 20AH LiFePO4 Battery Pack,IFR40135 LiFePO4 Battery Pack,LiFePO4 Battery Pack Explosion Proof |
||
Product Description
Explosion-Proof Product IFR40135 4S1P 12V 20AH LiFePO4 Battery Pack For Hazardous Area, Oil And Gas, And Pharmasutricals
Feature:
1. Accept series.
2. Pass UL1642,IEC 60079-0
3 . Application for Hazardous Area, such Oil And Gas, And Pharmasutricals
4. Flame retardant class:V0
5. Positive and negative:M6 screw
Explosion-Proof Product IFR40135 4S1P 12V 20AH LiFePO4 Battery Pack For Hazardous Area, Oil And Gas, And Pharmasutricals
Parameter:
| No. | Items | Specifications |
Remark |
|
|
1 |
Capacity for assembled cell discharging by 0.2C |
≥19Ah |
Standard discharging method |
|
|
2 |
Battery Voltage |
12.4-13.6V
|
Delivery voltage, Within 10 days from Factory |
|
|
3 |
Standard charge condition |
Charge with 0.2C constant current and 14.6Vconstant voltage, charge to 14.6V continue charging till current declineto ≤0.01C |
Charge voltage: 14.6V±0.02V Charge current:0.2C |
|
|
4 |
Maximum charge current |
|
20A |
For continuous charging mod |
|
5 |
Maximum discharge current |
|
20A |
For continuous discharge mod |
|
6 |
Standard discharging method |
0.2C constant current discharge to 10V, |
||
|
7 |
Internal Impedance
|
Assemblage Impedance ≤180mΩ |
Measure two sides of the drawing line after assembling. |
|
Explosion-Proof Product IFR40135 4S1P 12V 20AH LiFePO4 Battery Pack For Hazardous Area, Oil And Gas, And Pharmasutricals

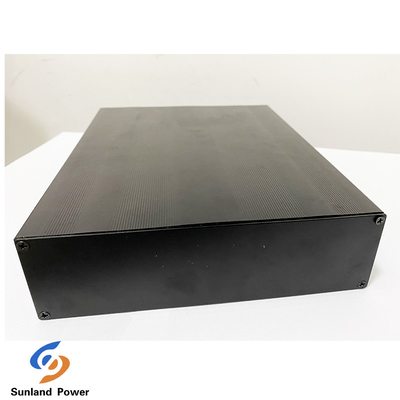

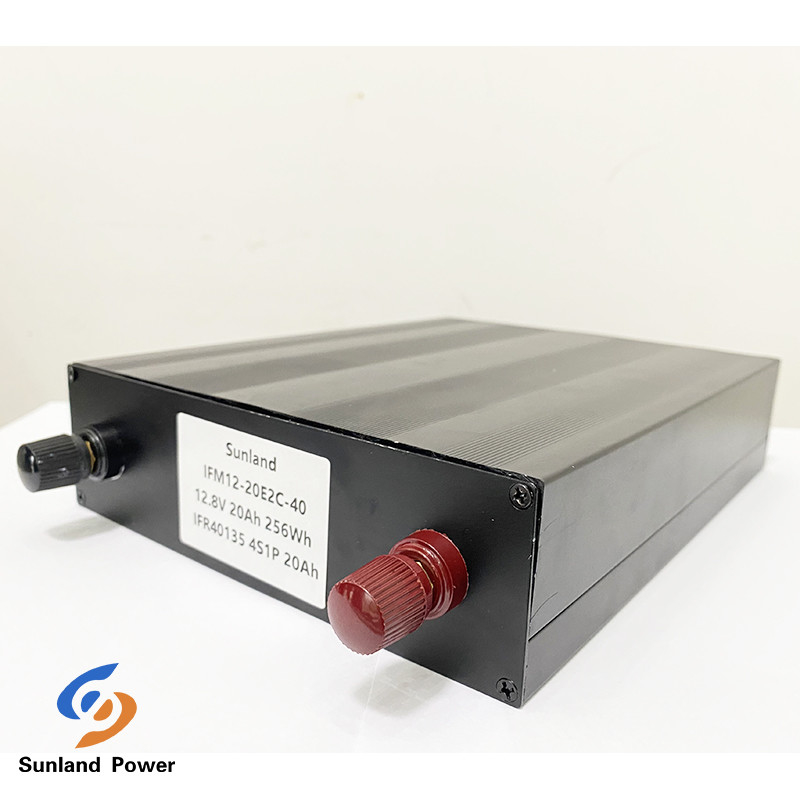

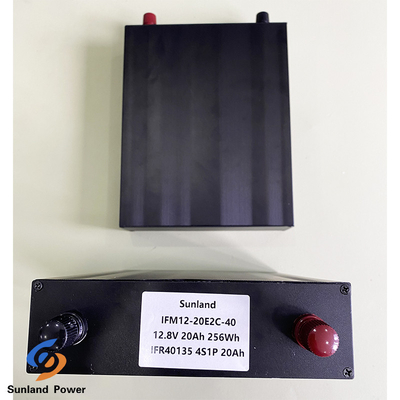

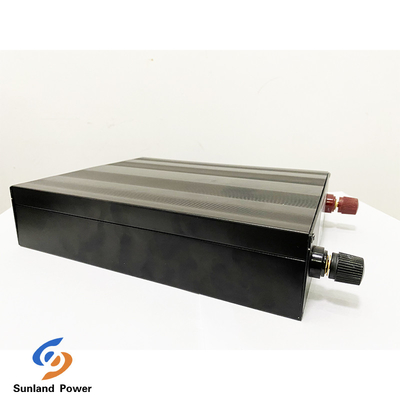

Picture:
Explosion-Proof Product IFR40135 4S1P 12V 20AH LiFePO4 Battery Pack For Hazardous Area, Oil And Gas, And Pharmasutricals
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time
without being used. In addition, if the various usage conditions such as charge, discharge, ambient temperature, etc. are not maintained
within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by
electrolyte leakage. If the batteries cannot maintain a charge for long periods of time, even when they are charged correctly, this may
indicate it is time to change the battery.
