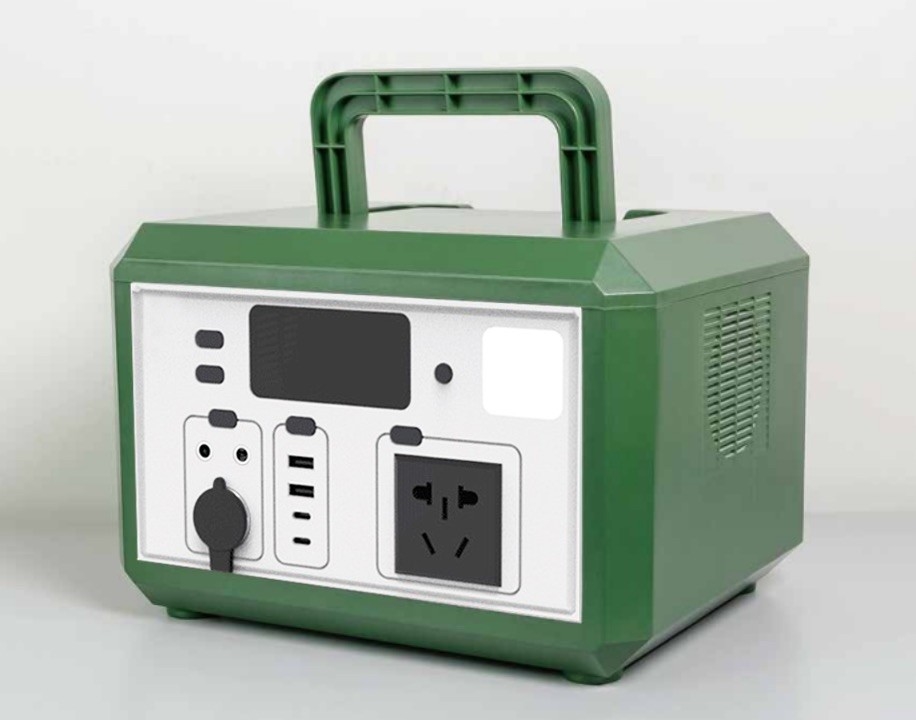

Portable Power Station 600W Outdoor Solar Generator Mobile Lithium Battery Pack
- Multiple Charging Outputs Provide More Options: Features AC/DC/USB outputs: 110V AC output (600W), 3 DC outputs, 1 QC3.0 fast charging USB port and 2 USB ports (5V 2.1A), 1 PD USB-C port (60W). Power your smartphones, tablets, laptops, cameras, drones, fans, lights, CPAP machines, etc. at any time. Please note that charging devices cannot be larger than 600 watts
- Triple Rechargeable Modes: The portable generator can be charged via AC adapter, car charger, or in direct sunlight via 12-22 volt solar panels (not included). It is the ideal battery backup kit for car camping, air travel, overland travel, outdoor camping activities, and more. So you can charge anywhere without worrying about low battery levels and reduced battery capacity
Product Operation Instructions
Press and hold the main switch for 2 seconds to turn on the system and wireless charging
function, and press and hold for 2 seconds to turn off the output of the whole machine.
Long press the LED light switch for 2 seconds to turn on or off the LED light, and click
again for the SOS function.
Press and hold the DC switch for 2 seconds to turn on or off the DC5521 and car cigarette
Press and hold the USB switch for 2 seconds to turn on or off the USB1, USB2, TYPE-C1 output.
Press and hold the AC switch for 2 seconds to turn on or off the inverter output.
USB ports QC3.0 output
The switch opens the corresponding output independently.
Turn on the switch and the display will show the USB symbol, which means the output is
TYPE-C2 PD 100W is two-way insertion load, and will automatically discharge.
Turn on the DC output and car charger output buttons, then the DC12V will turn on the
output, and then the display will display the DC symbol
Turn on the LED light button, and the LED light will be turned on.
When the operation is abnormal , please turn off the power switch immediately, and
check whether the equipment used is abnormal.
After use, please unplug the device and turn off the power switch.
When the battery voltage is close to the protection voltage or reaches the low voltage
protection, the output of the whole machine will be turned off.
One AC port 220V/600W output
Turn on the AC switch, and the AC starts to output.
If the output of one AC port is normal, the display will show the AC symbol.
An AC port output is abnormal, and the AC switch should be turned off.
Check the rated power of a product used to ensure that it does not exceed the 600W of
the AC outlet.
After connecting a product, plug it into the AC port to charge.
If the operation is abnormal, please turn off the power switch immediately, and check whether the digital products are abnormal.
After use, please unplug the product and turn off the power switch.
Battery low voltage protection
When the product voltage is insufficient, the LCD screen will display the empty
battery, and all outputs will be turned off. Please charge the product in time .
Product Easy Troubleshooting
1 When there is no AC output when powering on, check whether the power display screen is
displayed. If it does not display, try to charge the product for 1-2 minutes to activate the
2 When there is no DC output when powering on, check whether there is any problem with the
digital product and the connecting line.
Warnings when using the product
1 Do not put the product in water!
2 Do not heat the product and keep it close to fire!
3 Do not disassemble or modify the product without authorization!
4 Do not hit the product hard!
