ER14505S 2S2P Li-Soci2 Lithium Battery For Medical Device 7.2V AA
Product Details:
| Place of Origin: | HuBei |
| Brand Name: | TAC |
| Certification: | REACH MSDS |
| Model Number: | ER14505S 7.2V 3.2Ah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | usd 11 each pcs |
| Packaging Details: | 20 pcs each pallet / 1 pack for one box |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | T/T, LC, Paypal etc. |
| Supply Ability: | 100,000PCS/Day |
|
Detail Information |
|||
| Model Number:: | ER14505S 7.2V 3.2Ah | Brand Name:: | P-2023-0019 |
|---|---|---|---|
| Nominal Voltage:: | 3.6V | Size:: | 30X104X 15mm |
| Type:: | LiSOCL2 Battery | Weight:: | 80g |
| Certification: | UL,ROHS | Warranty:: | 12months |
| Life: | 10years | Rechargeble: | Non Rechargeable |
| Highlight: | 2S2P Li-Soci2 Lithium Battery,ER14505S Li-Soci2 Lithium Battery |
||
Product Description
ER14505S 2S2P for Medical Device 7.2V AA Li-soci2 Lithium Battery
Features For 7.2V AA Li-soci2 Lithium Battery ER14505S 3.2Ah for Medical Device
1 .Li-S0Ci2 Lithium Battery ER14505S 7.2V 3200mAh with wire
2. This is high temperature model ,Extension of temperature range up to +150 degree
3. High working voltage 3.6v for single battery cells of primary battery
4. Pollution-free passed Reach
5. highest capacity 3200mah for same size
6. Long operating life over 10 years
7. Best price from factory ,lower MOQ
Quick Detail:
| Model Number: | ER14505S 3.6V | Brand Name: | P-2023-0019 |
| Nominal Voltage: | 7.2V | Rated Capacity: | 3200mAh |
| Type: | LiSOCL2 Battery | Size:30X104X 15mm | φ14.5mm×H25.5mm |
| Weight: | 80g | Certification | UL,ROHS |
| Warranty: | 12 months |
3.6V1/2AA Li-soci2 Lithium Battery ER14250S 900mAh Specification:
|
No.
|
Item
|
General Parameter
|
Remark |
| 1 |
Rated Capacity
|
3200mAh | Discharge to 2.0V 1mA |
| 2 |
Nominal Voltage
|
7.2V
|
Mean Operation Voltage
|
| 3 |
Voltage at end of Discharge
|
2.0V
|
Discharge Cut-off Voltage
|
| 4 |
Max dimension
|
30X104X 15mm
|
|
| 5 |
Max weight
|
80g
|
|
| 6 |
Standard discharge
|
Discharge to 2.0V 1mA
|
|
| 7 |
Max constant discharge current
|
10mA
|
|
| 8 |
Max. pulse current
|
50mA
|
|
| 9 |
Ambient temperature range
|
-40~ +150℃
|
|
| 10 |
Storage life
|
≥10 year
|
Yearly self-discharge ≤ 1%
|
Size; Max dimension : 30X104X 15mm
If you have purchase the ER battery from other supplier, pls take close attention to max size
in order to avoid the size over your space limit
Application
- Medical Device
- Utility meters (gas, water, electricity meters)
- Safe alarm system , Monitoring systems
- Signal lights and the post indicator transfer
- Medical equipment
- Memory back-up power
- Military Radar and Medical Instrument etc
- GPS system
ER14505S 2S2P for Medical Device 7.2V AA Li-soci2 Lithium Battery
the battery pack with blue PVC jacket
specially sponge pallet fix each battery
standard 7 level strong paper carton

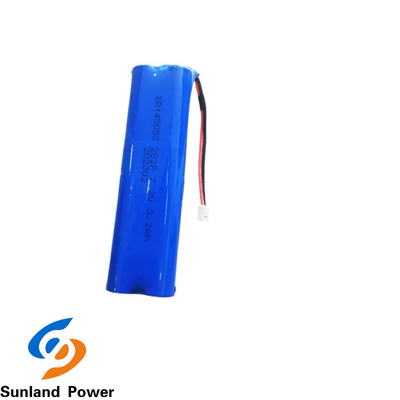

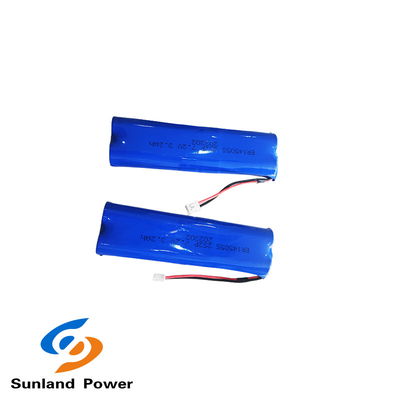

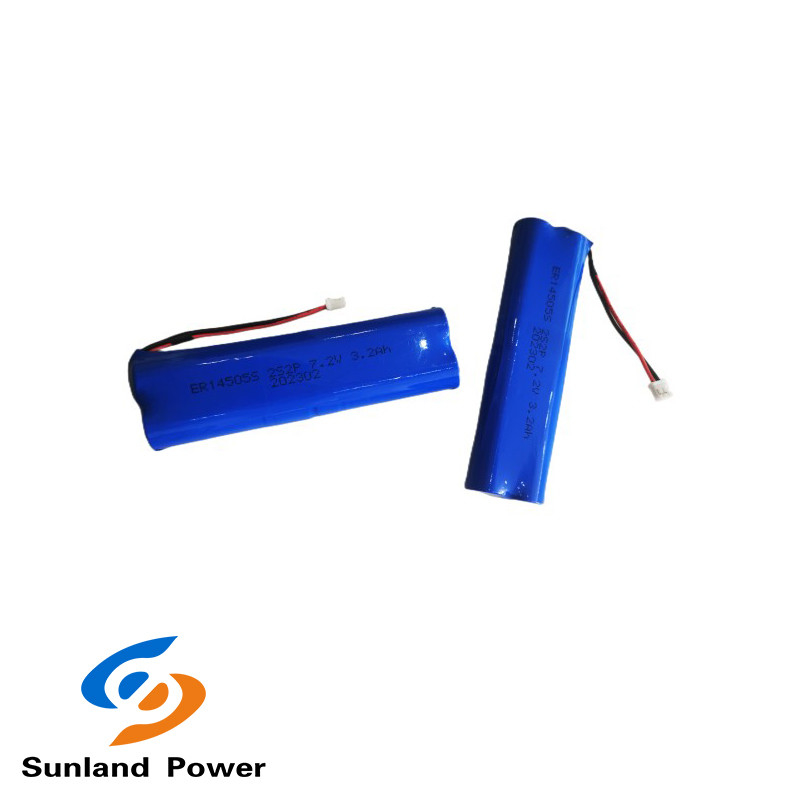

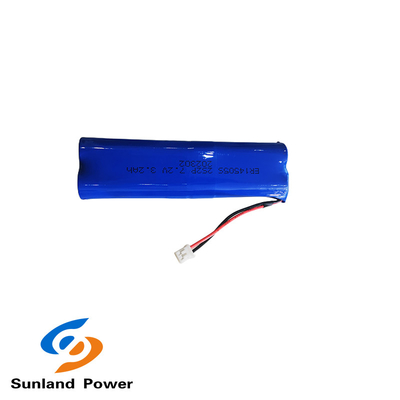

Battery Picture
Performance Testing
Unless other request s, all tests are carried out in ambient temperature 20±5℃.
Tests should be made within 45 days after receipt of the batteries.
ER Production List
Lead Time
We keep stock for this model continue
So we can delivery the cargo within3-5 days after the buyer arrange the payment
30 days for OEM order
